INB-65M2812MFA
SKU
233901

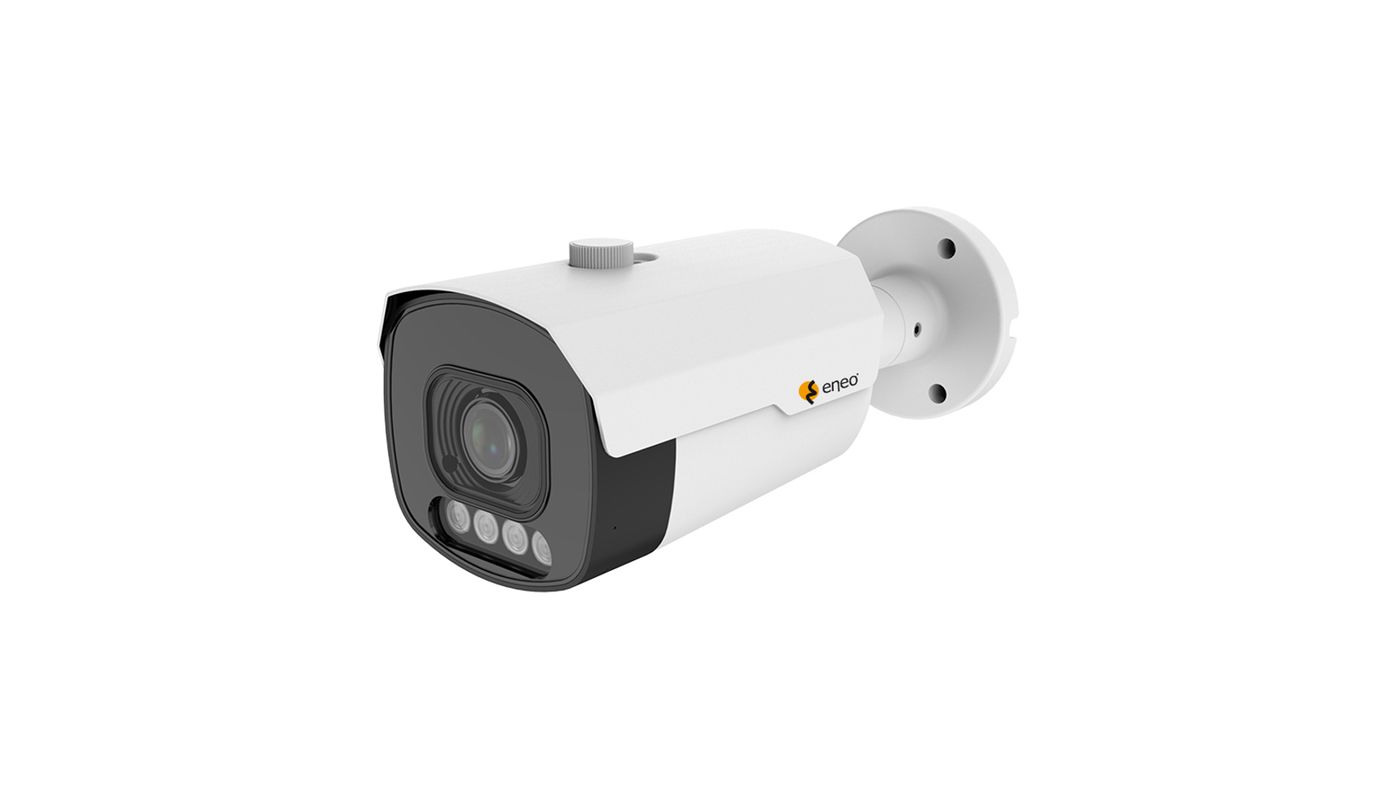

Network Camera, Bullet, 2880x1620, Day/Night, WDR, AI 2,8-12mm, IR, 12VDC, PoE, IP67
Main Features
1/2.7" CMOS sensor,5 MP/30fps
AI analysis functions including object classification
Colour images in the dark due to integrated white light
WDR 120dB, 3D-DNR Noise Reduction
Motorized varifocal lens 2.8-12mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF Profile S and Profile T
Local storage via Micro SD card
Supports audio and external alarm input and output
Power supply 12VDC or PoE IEEE 802.3af
IR LED illumination, IP67
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Bullet
- Sensor size
- 1/2.7"
- Resolution Standard
- 5 Megapixel
- Imager
- SmartSens, SC500AI, CMOS
- Sensitivity
- 0,002 Lux bei F1,0
- System
- 24h color
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1/5 ~ 1/20.000sec.
- Automatic electronic shutter (ESC)
- 1/5 ~ 1/20.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC, HLC
- Day&Night switch
- ICR
- Day&Night mode
- Automatic, Day, Night, Image, Time
- White balance
- Automatic, Manual
- Signal-to-noise ratio
- 39dB
- Video:
- Resolution
- 2880x1620 (16:9) @ H.265, 2592x1520 (16:9) @ H.264, 2304x1296 (16:9), 1920x1080 (16:9), 1280x960 (4:3), 1280x720 (16:9), 640x480 (4:3), 320x240 (4:3)
- Image resolution max.
- 2880x1620 @ H.265
- Image display
- 16:9, 4:3
- Stream types
- Triple-Stream(Main/Sub/Mobile)
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,8 - 12 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 1,5 m
- Iris Control
- DC
- DORI:
- Detect (25px/m)
- 62,5 - 260,3 m
- Observe (62 px/m)
- 24,3 - 104,5 m
- Recognize (125 px/m)
- 11,5 - 52,2 m
- Identify (250 px/m)
- 5,2 - 25,6 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
- Alarm processing
- recording internal storage (SD card), E-Mail, HTTP, FTP, TCP, UDP, alarm out, Cloud Upload
- Audio support
- yes
- Audio
- 1/1 Line input and output, 2 Way Audio
- Password protection
- administrator & users
- Internal storage
- microSD-Kartenslot
- Menu languages
- English, German, French, Italian, Portugese, Spanish, Turkish, Russian, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS Internet Explorer 10/11, Safari , Firefox , Google Chrome , Edge
- Mirror function
- V flip, H-flip, H/V flip
- Digital Noise Reduction
- 3D-DNR, yes
- Network:
- Network protocols
- TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
- Interfaces / Inputs/ Outputs:
- Video outputs
- no
- External connectors
- RJ-45, Alarm in/output, Audio input/output, 12VDC input (DC plug), connection cable approx.30cm, micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Alarm outputs
- 1
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo IN-Series
- Dimensions (HxWxD)
- 86,3x84.7x 240,9mm
- Weight
- 690g
- Illumination
- 4x High Power LED 850nm, 4x Whitelight LED, Infrared, White light
- Illumination range
- approx. 35m IR, approx.30m White Light
- Color (housing)
- Pantone P 179-1, RAL9003
- Housing
- Outdoor
- Hosuing material
- Aluminium, Plastic
- Heater
- no
- Integrated wall mount
- yes
- Camera Type
- Face recognition, License plate recognition, People Count, Retail Intelligence
- Power consumption
- 10W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Protection rating
- IP67
- SDK
- upon request
- Sunshield
- yes
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
- Text display
- ON/OFF switchable
- Vandal proof
- no
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Other
- Vertical Angle of View
- 58,5 - 20,0°
- Horizontal Angle of View
- 112,6 - 35,4°
- Remarks
- NDAA compliance under Section 889, The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series., To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Manufacturer order number
- 233901
