IED-62M2812MCA

1/2,8" Network Dome, Fix, 1920x1080,Day&Night, WDR, 2,8-12mm, EPOC, IR, IP66
Art. No.
220931
  • 1/2,8" Sony STARVIS CMOS
  • Resolution max. 1920x1080, 25fps frame rate
  • Motorised vary focal lens 2,8~12mm with P-Iris
  • EPOC Ethernet and Power over Coax transmission
  • Wide Dynamic Range, T-WDR (120dB)
  • Intelligent self learning video analysis (IntelliVision Technology Inside)
  • Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec
  • Micro SD Card (SDHC, SDXC)
  • 1 x Alarm in and output as well as audio support
  • Infrared illumination up to 30m
  • Easy installation, IP66, PoE IEEE 802.3af
  • Support ONVIF Profile S and Profile T
Special features
Network transmission with 128bit AES encryption standard
Specifications
Series eneo EPOC, eneo SN-Series
Camera:
Camera type Dome
Sensor size 1/2.8"
Imager CMOS, Sony STARVIS, Sensor IMX290
System True Day&Night
Sensitivity 0,03 Lux, at F1.6, 40IRE
Low Speed Shutter yes
Low speed shutter automatic
Manual electronic shutter (MES) 1~1/10000Sek.
Automatic electronic shutter (ESC) 1~1/10.000sec.
Wide Dynamic Range (WDR) WDR 120dB
Backlight Compensation Smart BLC
Day&Night switch ICR
Day&Night mode Day, Night, Automatic
White balance Automatic, Manual
Video:
Resolution 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
Image resolution max. 1920x1080
Image display VerticalView 90°/270°, 4:3, 16:9, 5:4
Stream types Quad Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 4x
Focal Length 2,8 - 12 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Iris Control P-iris
Vertical Angle of View 56 - 18°
Horizontal Angle of View 100 - 33°
DORI:
Detect (25px/m) 40 - 130 m
Observe (62 px/m) 16 - 55 m
Recognize (125 px/m) 8 - 26 m
Identify (250 px/m) 4 - 13 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions Motion analysis, Tampering protection, Trip wire plus object counting, Loitering detection, Intrusion, Person recognition, Defog, Motion detection
Alarm processing recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome)
Rotation range 359°
Vertical tilt range 0 ~ +90°
Audio support yes
Audio 2 Way Audio
Password protection administrator & users
e-PTZ support yes
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Russian, Chinese, Korean, Japanese
Privacy zone masking Areas-ON/OFF switchable
Remote configuration Browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
User interface Type B (white / blue)
Mirror function H-flip, mirror
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS
Interfaces / Inputs/ Outputs:
External connectors BNC - EPOC, Alarm input, Alarm output, Audio input/output, 12VDC input (DC plug), connection cable approx.40cm
Alarm inputs 1
Alarm outputs 1
Serial interfaces Ethernet
General:
Dimensions (HxWxD) 99x144mm
Weight 776g
llumination infrared
Illumination 28x LED 850nm
Illumination range approx. 30m
Color (housing) white
Color (bubble) clear
Housing Outdoor
Hosuing material Aluminium
Heater no
Power consumption 8,5W
Blower no
Mounting Wall mount, Ceiling mount
ONVIF ONVIF Profile S, ONVIF Profile T
Protection rating IP66
Supply voltage 12VDC, Power over Coax (PoC)
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof yes
Certifications IK10
Parts supplied:
Parts supplied manual, bag of screws
More Choices:
  1. eneo Site Manager
    Art. No.: 218218 eneo Site Manager
    Management Software for eneo IP products
  2. IAM-6MC1001M0A
    Art. No.: 221273 IAM-6MC1001M0A
    Ethernet over Coax Transceiver Data/Power supply 270Mbps, 57VDC power input
  3. IAM-6MC1001MRA
    Art. No.: 221577 IAM-6MC1001MRA
    Ethernet Coax Receiver Data & Power over Coax 1 x RJ-45, 1 x BNC

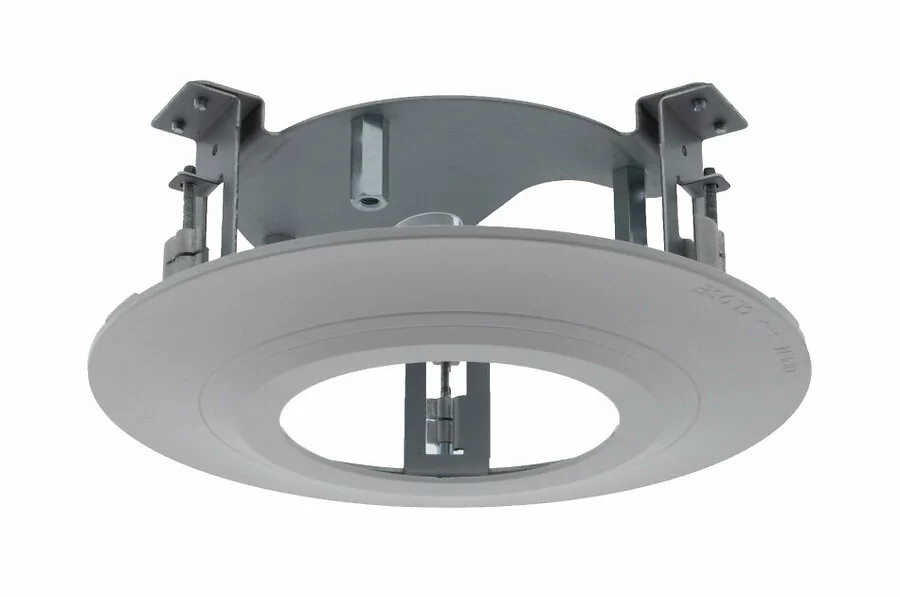

  4. IED-FMH1
