IED-62M2812MAA
SKU
220083

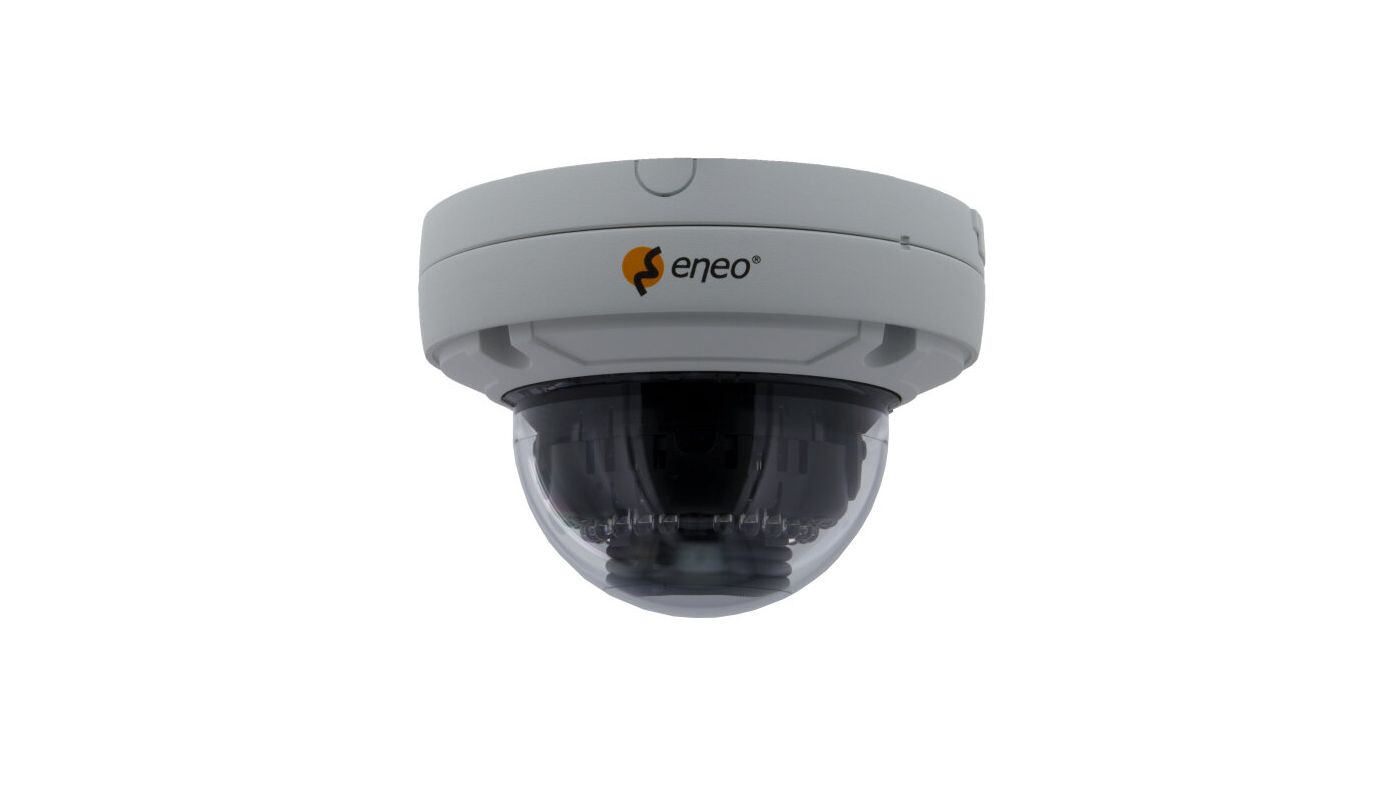

1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,8-12mm, Infrared, IP66
Main Features
1/2,8" Sony STARVIS CMOS
Resolution max. 1920x1080, 25fps frame rate
Motorised varifocal lens 2,8~12mm with P-Iris
Intelligent self-learning video analysis (IntelliVision inside)
Wide Dynamic Range, T-WDR (120dB)
Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
Micro SD Card (SDHC, SDXC)
1 x Alarm in and output as well as audio support
Infrared illumination up to 30m
PoE IEEE 802.3af Class 0,12VDC, IP66
Supports ONVIF Profile S and Profile T
Colour white
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/2.8"
- Resolution Standard
- HD 1080p
- Imager
- Sony STARVIS, Sensor IMX290, CMOS
- Sensitivity
- 0,03 Lux at F1,6, 40 IRE
- System
- True Day&Night
- Low speed shutter
- yes
- Manual electronic shutter (MES)
- 1~1/20.000sec.
- Automatic electronic shutter (ESC)
- 1~1/20.000sec.
- Wide Dynamic Range (WDR)
- WDR 120dB
- Flickerless function
- yes
- Backlight compensation
- BLC
- Day&Night switch
- ICR
- Day&Night mode
- Day, Night, Automatic
- White balance
- Automatic, Manual
- Video:
- Resolution
- 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
- Image resolution max.
- 1920x1080
- Image display
- VerticalView 90°/270°, 4:3, 16:9, 5:4
- Stream types
- Quad Streaming
- Image Transmission Rate
- 30 fps
- Video compression
- H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
- Lens:
- Lens Type
- Varifocal (motorized)
- Zoom Factor
- 4x
- Focal Length
- 2,8 - 12 mm
- Digital Zoom
- yes
- MOD (Mininum Object Distance)
- 0,5 m
- Iris Control
- DC, P-iris
- DORI:
- Detect (25px/m)
- 40 - 130 m
- Observe (62 px/m)
- 16 - 55 m
- Recognize (125 px/m)
- 8 - 26 m
- Identify (250 px/m)
- 4 - 13 m
- Functions:
- Multicast compliant
- yes
- Motion detector
- yes
- Analysis functions
- Cross Counting (CC), Human (PD), Loitering detection, Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD)
- Alarm processing
- recording internal storage (SD card), E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome)
- Rotation range
- 359°
- Vertical tilt range
- 0 ~ +90°
- Audio support
- yes
- Audio
- 2 Way Audio
- Password protection
- administrator & users
- e-PTZ support
- yes
- Internal storage
- microSDHC card, microSDXC card
- Menu languages
- English, German, French, Russian, Chinese, Korean, Japanese
- Privacy zone masking
- Areas-ON/OFF switchable
- Remote configuration
- Browser
- Web browser
- MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
- User interface
- Type B (white / blue)
- Mirror function
- H-flip, mirror
- Digital Noise Reduction
- yes
- Network:
- Network protocols
- TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
- Interfaces / Inputs/ Outputs:
- External connectors
- Alarm output, Alarm input, Audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Alarm outputs
- 1
- Serial interfaces
- Ethernet
- General:
- Brand
- ENEO
- Series
- eneo SN-Series
- Dimensions (HxWxD)
- 99x144mm
- Weight
- 776g
- Illumination
- 28x LED 850nm, Infrared
- Illumination range
- approx. 30m
- Color (housing)
- white
- Color (bubble)
- clear
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Power consumption
- 8,5W
- Blower
- no
- Mounting
- Ceiling mount, Wall mount
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Window heater
- no
- Protection rating
- IP66
- SDK
- upon request
- Supply voltage
- 12VDC, PoE
- Operating temperature
- -20°C ~ +50°C
- Text display
- supplied
- Vandal proof
- yes
- Certifications
- IK10
- Parts supplied:
- Parts supplied
- manual, bag of screws
- Notes:
- Remarks
- Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation.Permanent use may affect the life of the camera, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
- Other
- Vertical Angle of View
- 56 - 18°
- Horizontal Angle of View
- 100 - 33°
- Manufacturer order number
- 220083
Further product information
eneo IP-Dome mit Videoanalyse für hohe AlarmgenauigkeitSie wollen Videoaufnahmen in Full HD und das bei ausgezeichneter Preis-Leistung? Dann empfiehlt sich diese eneo IP-Kamera mit Videoanalyse. Dank intelligenter Algorithmen lernt die Dome-Kamera aus der eneo SN-Serie während des laufenden Betriebs, unbedeutende Bewegungen von sicherheitsrelevanten Bewegungsmustern zu unterscheiden. So erzielt der IP-Dome in kurzer Zeit eine immer höhere Alarmgenauigkeit, indem er z. B. schaukelnde Äste oder Reflexionen als Hintergrundrauschen klassifiziert. Detektiert die Kamera hingegen herumlungernde Personen oder Bewegungen in bestimmten Bildbereichen, löst sie einen Alarm aus. Zum Funktionsumfang des eneo IP-Dome mit Videoanalyse zählen Bewegungsanalyse und Bewegungserkennung, Intrusionsdetektion (Erkennung von unbefugten Eindringlingen), Loitering-Detektion (Erkennung herumlungernder Personen) sowie Personen- und Richtungserkennung mit integrierter Objektzählung. Indem die eneo IP-Kamera mit Videoanalyse sich selbständig optimiert, steigert sie die Effizienz der gesamten Videosicherheitslösung. Video in Full HD und komfortables Set-upDer eneo IP-Dome mit Videoanalyse kommt mit einem motorisierten Varifokalobjektiv mit einer Brennweite von 2,8–12mm und erreicht eine maximale Bildauflösung von 1920x1080 Pixeln (Full HD). Die P-Iris-Blendensteuerung ermöglicht eine schnelle und komfortable Einstellung des Bildbereichs. Für den nahtlosen Tag-Nacht-Betrieb ist die Kamera mit Infrarot-LEDs mit einer Reichweite von bis zu 30m ausgestattet. Wetterfest und robustDer eneo IP-Dome mit Videoanalyse ist bestens für den Einsatz im Außenbereich gerüstet. Hierfür verfügt er über ein robustes und gegen Vandalismus geschütztes Aluminiumgehäuse (IK10). Darüber hinaus entspricht die eneo IP-Kamera der Schutzklasse IP66. Damit ist die Kamera gegen Fremdkörper und starkes Strahlwasser geschützt. Herstellerübergreifend kompatibelDie eneo IP-Kamera mit Videoanalyse unterstützt die ONVIF-Profile S und T. Dadurch ist die Kompatibilität mit ONVIF-konformen Geräten anderer Hersteller gegeben. Dies bietet Errichtern die Möglichkeit, die Kamera mit einer großen Auswahl an Produkten zu kombinieren – Voraussetzung für passgenaue Branchenlösungen.Downloads
