SKU 225147

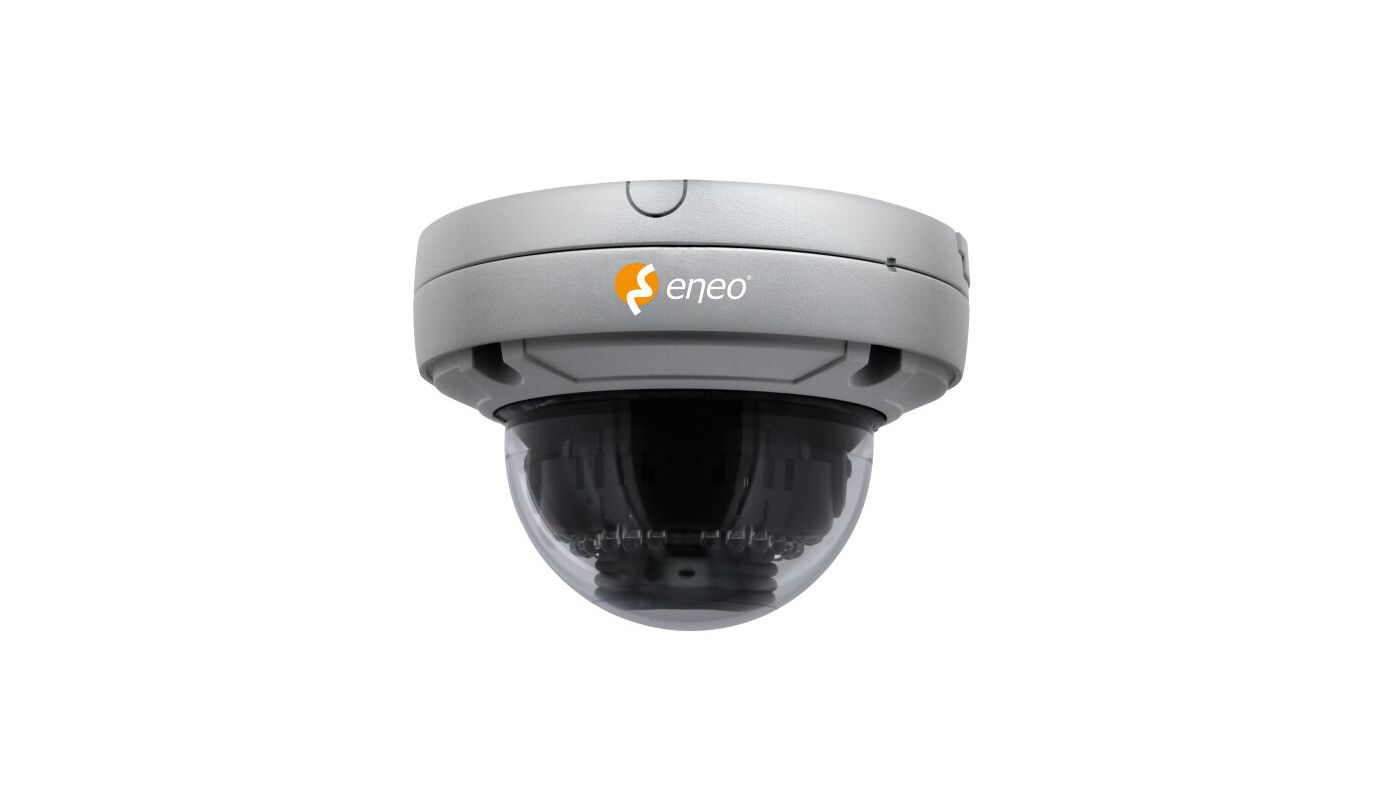

1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,8-12mm, IR, Silver Metallic

Main Features

1/2,8" Sony STARVIS CMOS
Resolution max. 1920x1080, 25fps frame rate
Motorised vary focal lens 2.7~12mm with P-Iris
Intelligent self-learning video analysis (IntelliVision inside)
Wide Dynamic Range, T-WDR (120dB)
Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
Micro SD Card (SDHC, SDXC)
1 x Alarm in and output as well as audio support
Infrared illumination up to 30m
PoE IEEE 802.3af Class 0,12VDC, IP66
Supports ONVIF Profile S and Profile T
Colour RAL 9006 white aluminum
arrow-right Buy now You will be redirected to our shop on Videor.com for purchase.

More Information

Camera:

Camera type
Dome
Sensor size
1/2.8"
Resolution Standard
HD 1080p
Imager
Sony STARVIS, Sensor IMX290, CMOS
Sensitivity
0,03 Lux at F1,6, 40 IRE
System
True Day&Night
Low speed shutter
yes
Manual electronic shutter (MES)
1~1/10000Sek.
Automatic electronic shutter (ESC)
1~1/10.000sec.
Wide Dynamic Range (WDR)
WDR 120dB
Flickerless function
yes
Backlight compensation
BLC
Day&Night switch
ICR
Day&Night mode
Day, Night, Automatic
White balance
Automatic, Manual
Video:

Resolution
1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
Image resolution max.
1920x1080
Image display
VerticalView 90°/270°, 4:3, 16:9, 5:4
Stream types
Quad Streaming
Image Transmission Rate
30 fps
Video compression
H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:

Lens Type
Varifocal (motorized)
Zoom Factor
4x
Focal Length
2,8 - 12 mm
Digital Zoom
yes
MOD (Mininum Object Distance)
0,5 m
Iris Control
DC, P-iris
DORI:

Detect (25px/m)
40 - 130 m
Observe (62 px/m)
16 - 55 m
Recognize (125 px/m)
8 - 26 m
Identify (250 px/m)
4 - 13 m
Functions:

Multicast compliant
yes
Motion detector
yes
Analysis functions
Cross Counting (CC), Human (PD), Loitering detection, Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD)
Alarm processing
recording internal storage (SD card), E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome)
Rotation range
359°
Vertical tilt range
0 ~ +90°
Audio support
yes
Audio
2 Way Audio
Password protection
administrator & users
e-PTZ support
yes
Internal storage
microSDHC card, microSDXC card
Menu languages
English, German, French, Russian, Chinese, Korean, Japanese
Privacy zone masking
Areas-ON/OFF switchable
Remote configuration
Browser
Web browser
MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
User interface
Type B (white / blue)
Mirror function
H-flip, mirror
Digital Noise Reduction
yes
Network:

Network protocols
TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
Interfaces / Inputs/ Outputs:

External connectors
Alarm output, Alarm input, Audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Alarm outputs
1
Serial interfaces
Ethernet
General:

Brand
ENEO
Series
eneo SN-Series
Dimensions (HxWxD)
99x144mm
Weight
776g
Illumination
28x LED 850nm, Infrared
Illumination range
approx. 30m
Color (housing)
RAL9006
Color (bubble)
clear
Housing
Outdoor
Hosuing material
Aluminium
Heater
no
Power consumption
8,5W
Blower
no
Mounting
Ceiling mount, Wall mount
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection rating
IP66
SDK
upon request
Supply voltage
12VDC, PoE
Operating temperature
-20°C ~ +50°C
Text display
supplied
Vandal proof
yes
Certifications
IK10
Parts supplied:

Parts supplied
manual, bag of screws
Notes:

Remarks
Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation.Permanent use may affect the life of the camera, Colour matching accessories on request, To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number #229235 at VIDEOR).
Other

Vertical Angle of View
56 - 18°
Horizontal Angle of View
100 - 33°
Manufacturer order number
225147
