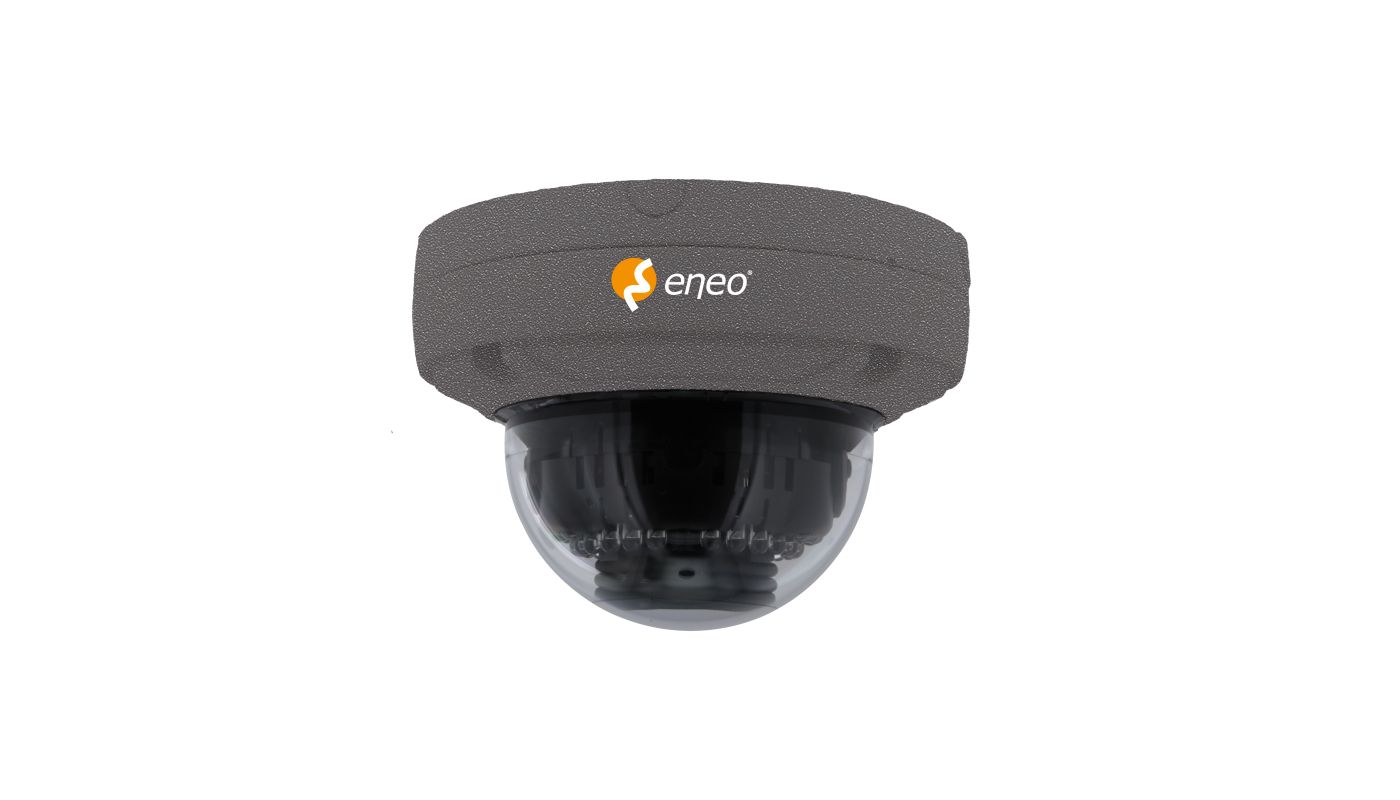

IED-62M2812MAA 703

1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,8-12mm, IR, Iron Glimmer
Art. No.
225148
  • 1/2,8" Sony STARVIS CMOS
  • Resolution max. 1920x1080, 25fps frame rate
  • Motorised vary focal lens 2.7~12mm with P-Iris
  • Intelligent self-learning video analysis (IntelliVision inside)
  • Wide Dynamic Range, T-WDR (120dB)
  • Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
  • Micro SD Card (SDHC, SDXC)
  • 1 x Alarm in and output as well as audio support
  • Infrared illumination up to 30m
  • PoE IEEE 802.3af Class 0,12VDC, IP66
  • Supports ONVIF Profile S and Profile T
  • Colour DB 703 iron mica matt
Specifications
Series eneo SN-Series
Camera:
Camera type Dome
Sensor size 1/2.8"
Resolution Standard HD 1080p
Imager CMOS, Sony STARVIS, Sensor IMX290
System True Day&Night
Sensitivity 0,03 Lux, at F1.6, 40IRE
Low Speed Shutter yes
Low speed shutter automatic
Manual electronic shutter (MES) 1~1/10000Sek.
Automatic electronic shutter (ESC) 1~1/10.000sec.
Wide Dynamic Range (WDR) WDR 120dB
Backlight Compensation Smart BLC
Day&Night switch ICR
Day&Night mode day, night, auto
White balance automatic, manual
Video:
Resolution 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3)
Image resolution max. 1920x1080
Image display VerticalView 90°/270°, 4:3, 16:9, 5:4
Stream types Quad Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 4x
Focal Length 2,7 - 12 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Vertical Angle of View 56 - 18°
Horizontal Angle of View 100 - 33°
DORI:
Detect (25px/m) 40 - 130 m
Observe (62 px/m) 16 - 55 m
Recognize (125 px/m) 8 - 26 m
Identify (250 px/m) 4 - 13 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion analysis, tampering protection, Trip wire plus object counting, loitering detection, intrusion, Human detector, Defog, motion detection
Alarm processing recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome)
Rotation range 359°
Vertical tilt range 0 ~ +90°
Audio support yes
Audio 2 Way Audio
Password protection yes
e-PTZ support yes
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Russian, Chinese, Korean, Japanese
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited
User interface Type B (white / blue)
Mirror function H-flip, mirror
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN
Interfaces / Inputs/ Outputs:
External connectors alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs 1
Alarm outputs 1
General:
Dimensions (HxWxD) 99x144mm
Weight 776g
llumination infrared
Illumination 28x LED 850nm
Illumination range approx. 30m
Color (housing) RAL DB703
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater no
Power consumption 8,5W
Blower no
Mounting wall mount, ceiling mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP66
SDK upon request
Supply voltage 12VDC, PoE
Operating temperature -20°C ~ +50°C
Text display supplied
Vandal proof yes
Certifications IK10
Parts supplied:
Parts supplied manual, bag of screws
Notes:
Remarks Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation.Permanent use may affect the life of the camera, Colour matching accessories on request
