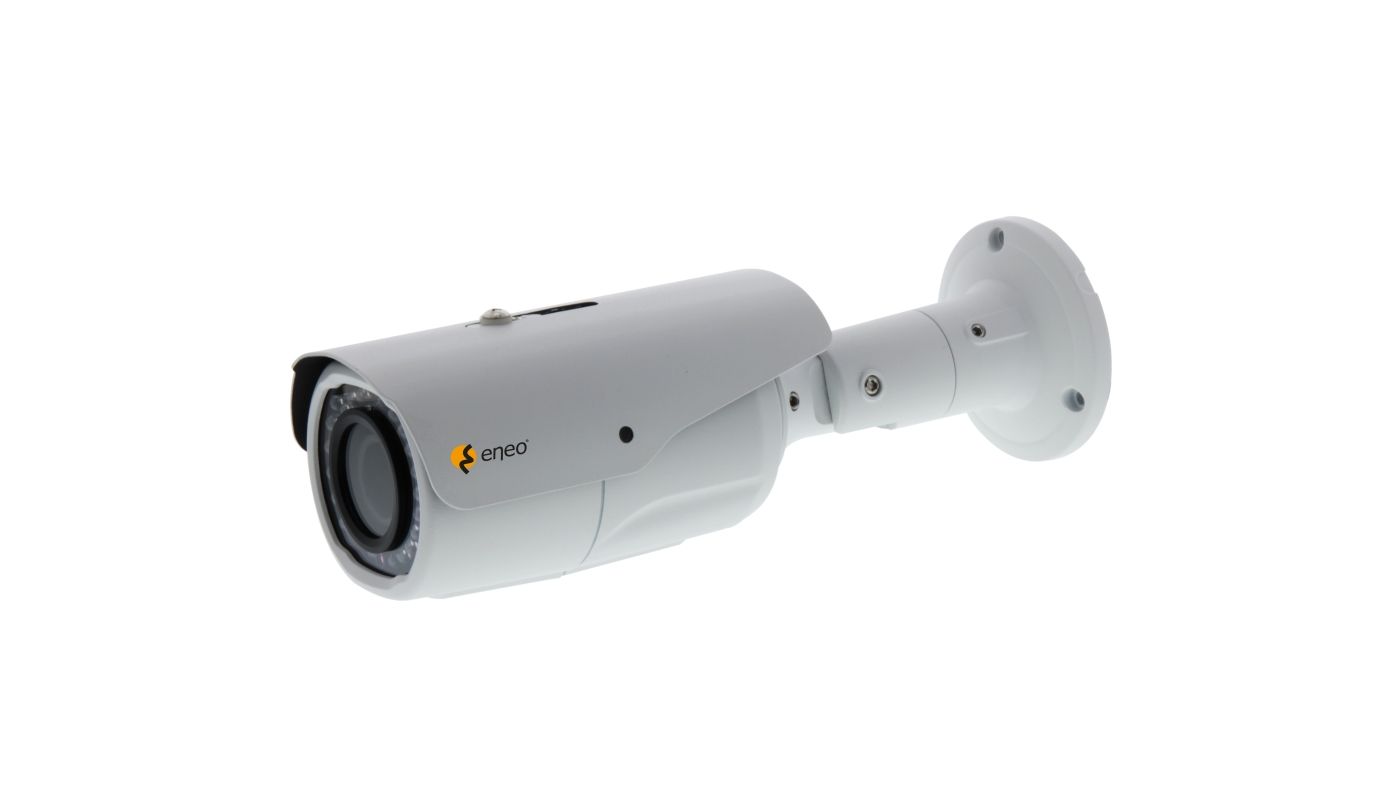

IEB-72M2812MAA
1/2.8" Network Camera, 1920x1080, Day&Night, WDR, 2,8-12mm, Infrared, IP66
Art. No.
220082
- 1/2,8" Sony STARVIS CMOS
- Resolution max. 1920x1080, 25fps frame rate
- Motorised vary focal lens 2,8~12mm with P-Iris
- Intelligent self learning video analysis (IntelliVision inside)
- Wide Dynamic Range, T-WDR (120dB)
- Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
- Micro SD Card (SDHC, SDXC)
- 1 x Alarm in and output as well as audio support
- Infrared illumination up to 30m
- Easy installation, IP66
- PoE IEEE 802.3af Class 0, 12VDC
- Supports ONVIF Profile S und Profile T
| Series | eneo SN-Series |
|---|---|
| Camera: | |
| Camera type | Bullet |
| Sensor size | 1/2.8" |
| Resolution Standard | HD 1080p |
| Imager | CMOS, Sony STARVIS, Sensor IMX290 |
| System | True Day&Night |
| Sensitivity | 0,03 Lux, at F1.6, 40IRE |
| Low Speed Shutter | yes |
| Low speed shutter | automatic |
| Manual electronic shutter (MES) | 1~1/20.000sec. |
| Automatic electronic shutter (ESC) | 1~1/20.000sec. |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Flickerless function | yes |
| Backlight Compensation | Smart BLC |
| Day&Night switch | ICR |
| Day&Night mode | day, night, auto |
| White balance | automatic, manual |
| Video: | |
| Resolution | 1920x1080 (16:9), 1440x1080 (4:3), 1280x1024 (5:4), 1024x768 (4:3), 1280x720 (16:9), 800x600 (4:3), 800x480 (16:9), 704x576 (4:3), 704x480 (4:3), 640x480 (4:3), 400x240 (4:3), 352x288 (4:3), 352x256 (4:3), 352:240 (4:3), 320x240 (4:3) |
| Image resolution max. | 1920x1080 |
| Image display | VerticalView 90°/270°, 4:3, 16:9, 5:4 |
| Stream types | Quad Streaming |
| Image Transmission Rate | 30 fps |
| Video compression | H.264, H.265, H.264+ (Smart Stream), H.265+ (Smart Stream), M-JPEG |
| Lens: | |
| Lens Type | Varifocal (motorized) |
| Zoom Factor | 4x |
| Focal Length | 2,8 - 12 mm |
| Digital Zoom | yes |
| MOD (Mininum Object Distance) | 0,5 m |
| Iris Control | P-iris, DC |
| Vertical Angle of View | 56 - 18° |
| Horizontal Angle of View | 100 - 33° |
| DORI: | |
| Detect (25px/m) | 40 - 130 m |
| Observe (62 px/m) | 16 - 55 m |
| Recognize (125 px/m) | 8 - 26 m |
| Identify (250 px/m) | 4 - 13 m |
| Functions: | |
| Multicast compliant | yes |
| Motion Detector | yes |
| Analysis functions | motion analysis, tampering protection, Trip wire plus object counting, loitering detection, intrusion, Person recognition, Defog, motion detection |
| Alarm processing | recording internal storage, E-Mail, FTP, Boost, HTTP, TCP, UDP, HTTPS, XML, alarm out, Alarm Forwarding (Preset Call of eneo PTZ Dome) |
| Audio support | yes |
| Audio | 2 Way Audio |
| Password protection | administrator & users |
| e-PTZ support | yes |
| Internal storage | microSDHC card, microSDXC card |
| Menu languages | English, German, French, Russian, Chinese, Korean, Japanese |
| Privacy zone masking | Areas-ON/OFF switchable |
| Remote configuration | web browser |
| Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG setup limited, Mozilla: MJPEG setup limited, Google: MJPEG setup limted, Edge: MJPEG setup limited |
| User interface | Type B (white / blue) |
| Mirror function | H-flip, mirror |
| Digital Noise Reduction | yes |
| Network: | |
| Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, RTP, UPnP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, QoS, OpenVPN |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | no |
| External connectors | alarm output, alarm input, audio input/output, RJ-45, 12VDC input (DC plug), connection cable approx.40cm |
| Ethernet interface | 10Base-T, 100Base-TX |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| Serial interfaces | Ethernet |
| General: | |
| Dimensions (HxWxD) | 86x90x279mm |
| Weight | 860g |
| llumination | infrared |
| Illumination | 34x LED 850nm |
| Illumination range | approx. 30m |
| Color (housing) | white |
| Housing | outdoor |
| Hosuing material | aluminium |
| Integrated wall mount | yes |
| Power consumption | 9W |
| Blower | no |
| Mounting | wall mount, ceiling mount |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66 |
| SDK | upon request |
| Sunshield | yes |
| Supply voltage | 12VDC, PoE |
| Operating temperature | -20°C ~ +50°C |
| Text display | supplied |
| Vandal proof | no |
| Parts supplied: | |
| Parts supplied | manual, bag of screws |
| Notes: | |
| Remarks | Note that electronic adjustment aid such as Zoom / Focus or Pan / Tilt functions are not designed for continuous operation.Permanent use may affect the life of the camera |
