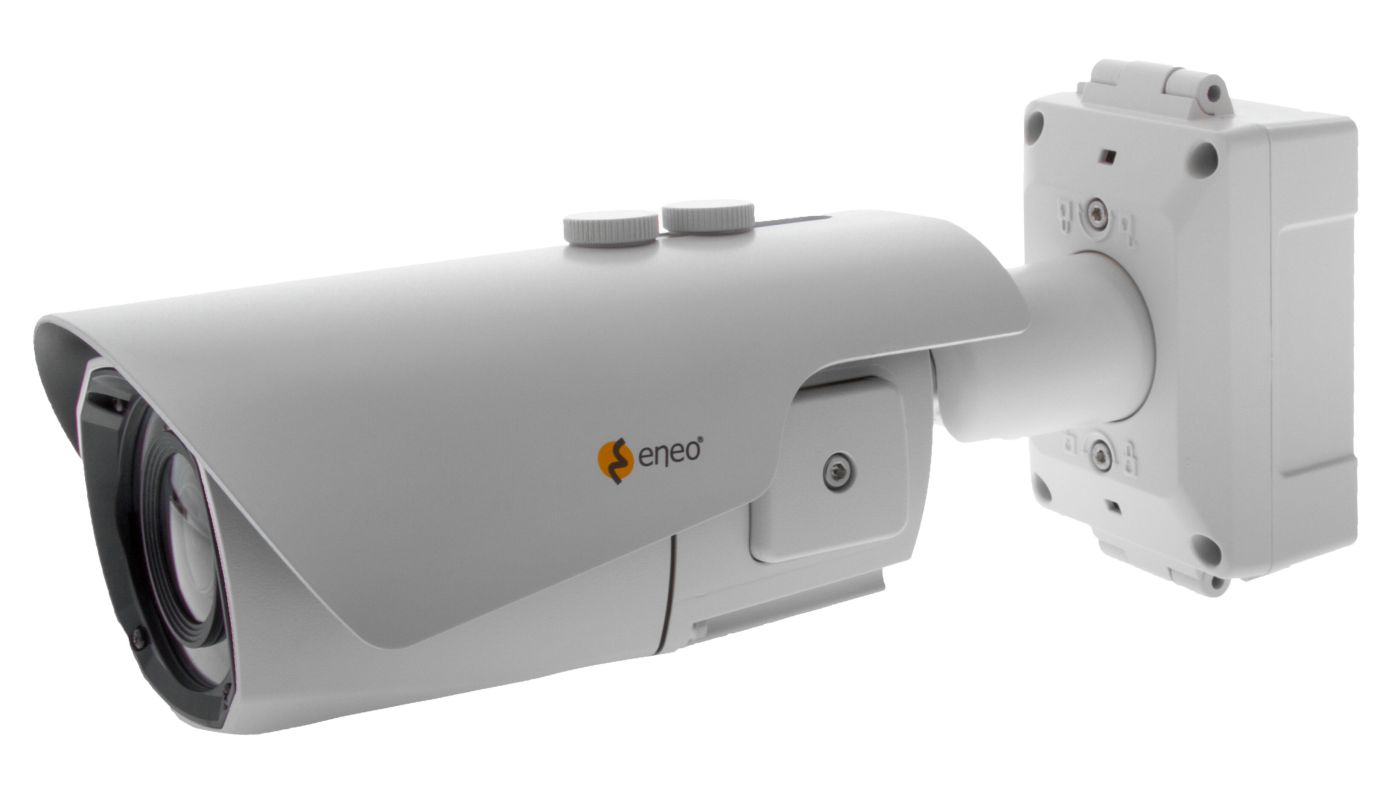

ICB-72M2713MAA
1/2.8" Network Camera, 1920x1080, Day/Night, DOL-WDR, 2.7-13.5mm, Infrared, IP67
Art. No.
232574
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 1920x1080 (Full HD)
- Motorised varifocal lens 2.7~13.5mm
- DOL-WDR (120dB) by triple scan images at 30/25fps
- Motion Detection, Privacy Zones, Slow Shutter
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Smart Codec H.265 ROI (Region of Interest)
- Supports ONVIF Profile S and Profile T
- Vertical View 90°/270° Modus, H-Flip, Mirror
- Power supply PoE or 12VDC/24VAC, IP67
- Integrated connection box including connection board
Special features
Integrated connection box with sabotage alarm contact|Simple wiring, the integrated connection board offers the possibility of network cabling via LSA connection bar or RJ45 socket.Terminal block for connection of alarm contacts, external voltage supply and audio.
| Series | eneo Candid Medium, eneo AN-Series |
|---|---|
| Camera: | |
| Camera type | Bullet |
| Sensor size | 1/2.8" |
| Resolution Standard | HD 1080p |
| Imager | CMOS, Sony STARVIS, Sensor IMX307 |
| System | True Day&Night |
| Sensitivity | 0,0008 Lux, at F1.6, 40IRE |
| Low Speed Shutter | yes |
| Manual electronic shutter (MES) | 1/25 ~ 1/25.000sec |
| Automatic electronic shutter (ESC) | 1/25 ~ 1/25.000sec |
| Wide Dynamic Range (WDR) | DOL-WDR 120dB, D-WDR |
| Flickerless function | yes |
| Backlight Compensation | BLC, HLC |
| Day&Night switch | ICR |
| Day&Night mode | auto, day, night, extern (Sensor) |
| White balance | automatic, outdoor, Light bulb, Fluorescent light, Clear Sky, Shade, manual |
| Signal-to-noise ratio | 50dB |
| Video: | |
| Resolution | 1920x1080 (16:9), 1280x720 (16:9) |
| Image resolution max. | 1920x1080 |
| Image display | VerticalView 90°/270°, 16:9 |
| Stream types | Multi Streaming |
| Image Transmission Rate | 30 fps |
| Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
| Lens: | |
| Lens Type | Varifocal (motorized) |
| Zoom Factor | 4x |
| Focal Length | 2,7 - 13,5 mm |
| Digital Zoom | yes |
| MOD (Mininum Object Distance) | 0,5 m |
| Iris Control | DC |
| Vertical Angle of View | 56 - 18° |
| Horizontal Angle of View | 108 - 32° |
| DORI: | |
| Detect (25px/m) | 44 - 198 m |
| Observe (62 px/m) | 16,6 - 80,5 m |
| Recognize (125 px/m) | 8,2 - 40,1 m |
| Identify (250 px/m) | 3,9 - 20,1 m |
| Functions: | |
| Multicast compliant | yes |
| Motion Detector | yes |
| Analysis functions | motion detection, tampering protection |
| Alarm processing | recording internal storage, E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping, alarm out |
| Audio support | no |
| Password protection | administrator & users |
| e-PTZ support | yes |
| Internal storage | microSDHC card, microSDXC card |
| Menu languages | English, German, French, Korean |
| Privacy zone masking | Areas-ON/OFF switchable |
| Remote configuration | web browser |
| Web browser | MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG |
| User interface | Type A (orange / grey) |
| Mirror function | mirror, flip |
| Digital Noise Reduction | yes |
| Network: | |
| Network protocols | TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, SNMP |
| Interfaces / Inputs/ Outputs: | |
| Video outputs | no |
| External connectors | micro SD card slot, Connection board (LSA, RJ45, audio, I / O alarm & Sabotage contacts) |
| Ethernet interface | 10Base-T, 100Base-TX |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| Serial interfaces | Ethernet |
| General: | |
| Dimensions (HxWxD) | 130,5x107,8x301mm |
| Weight | 1.6kg |
| llumination | infrared |
| Illumination | 4x High Power LEDs 850nm |
| Illumination range | approx. 40m |
| Color (housing) | Pantone Cool Gray 1C |
| Housing | outdoor |
| Hosuing material | aluminium |
| Integrated wall mount | yes |
| Power consumption | PoE, 10.5W, 12VDC, 12W, 24VAC, 16W |
| Blower | yes |
| Mounting | wall mount, ceiling mount |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP67 |
| SDK | upon request |
| Sunshield | yes |
| Supply voltage | 12VDC, 24VAC, PoE |
| Operating temperature | -50°C ~ +50°C |
| Text display | supplied |
| Vandal proof | no |
| Parts supplied: | |
| Parts supplied | manual, bag of screws |
| Notes: | |
| Remarks | NDAA compliance under Section 889, Part A. |
