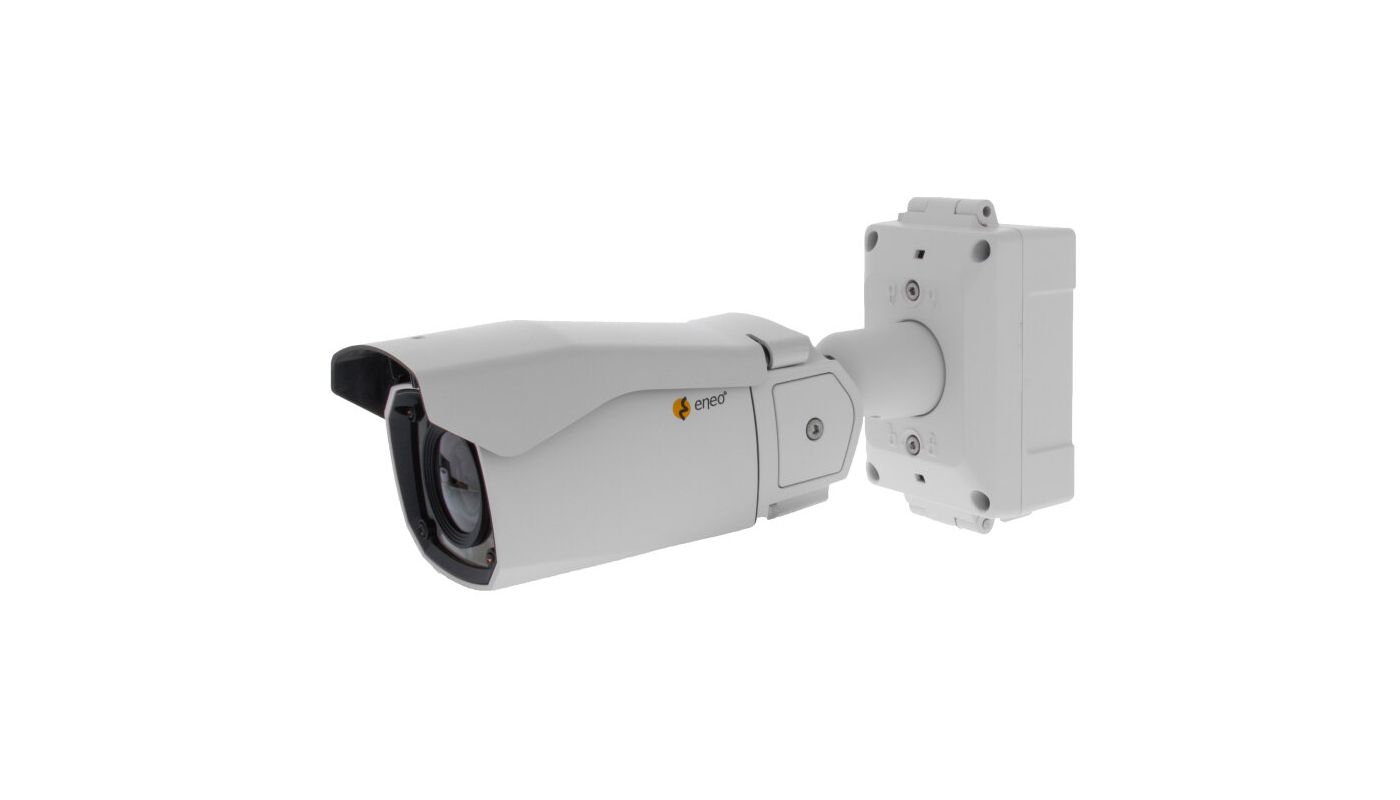

ICB-62M0550MAA

1/2.8" Network Camera, 1920x1080, Day/Night, DOL-WDR, 5.0-50mm, Infrared, IP67
Art. No.
231833
  • 1/2.8" Sony STARVIS CMOS Sensor
  • Excellent light sensitivity
  • Resolution max. 1920x1080 (Full HD)
  • Motorised varifocal lens 5.0~50mm
  • DOL-WDR (120dB) by triple scan images at 30/25fps
  • Motion Detection, Privacy Zones, Slow Shutter
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Smart Codec H.265 ROI (Region of Interest)
  • Supports ONVIF Profile S and Profile T
  • Vertical View 90°/270° Modus, H-Flip, Mirror
  • Power supply PoE, IP67
  • Integrated connection box including connection board
Special features
Integrated connection box with sabotage alarm contact|Simple wiring, the integrated connection board offers the possibility of network cabling via LSA connection bar or RJ45 socket.Terminal block for connection of alarm contacts, external voltage supply and audio.
Specifications
Series eneo AN-Series, eneo Candid Small
Camera:
Camera type Bullet
Sensor size 1/2.8"
Resolution Standard HD 1080p
Imager CMOS, Sony STARVIS, Sensor IMX307
System True Day&Night
Sensitivity 0,001 Lux, at F1.6, 40IRE
Low Speed Shutter yes
Manual electronic shutter (MES) 1/25 ~ 1/25.000sec
Automatic electronic shutter (ESC) 1/25 ~ 1/25.000sec
Wide Dynamic Range (WDR) DOL-WDR 120dB, D-WDR
Flickerless function yes
Backlight Compensation BLC, HLC
Day&Night switch ICR
Day&Night mode auto, day, night, extern (Sensor)
White balance automatic, outdoor, Light bulb, Fluorescent light, Clear Sky, Shade, manual
Signal-to-noise ratio 50dB
Video:
Resolution 1920x1080 (16:9), 1280x720 (16:9)
Image resolution max. 1920x1080
Image display VerticalView 90°/270°, 16:9
Stream types Multi Streaming
Image Transmission Rate 30 fps
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens:
Lens Type Varifocal (motorized)
Zoom Factor 10x
Focal Length 5 - 50 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Iris Control DC
Vertical Angle of View 26,7 - 4,5°
Horizontal Angle of View 49,9 - 8°
DORI:
Detect (25px/m) 76,4 - 740,4 m
Observe (62 px/m) 30,3 - 298,2 m
Recognize (125 px/m) 15,2 - 147,6 m
Identify (250 px/m) 7,5 - 74 m
Functions:
Multicast compliant yes
Motion Detector yes
Analysis functions motion detection, tampering protection
Alarm processing recording internal storage, E-Mail, HTTP, FTP, Boost, TCP, UDP, Onvif Event Mapping, alarm out
Audio support no
Password protection administrator & users
e-PTZ support yes
Internal storage microSDHC card, microSDXC card
Menu languages English, German, French, Korean
Privacy zone masking Areas-ON/OFF switchable
Remote configuration web browser
Web browser MS internet Explorer: ActiveX ex 9.0, Safari: MJPEG, Mozilla: MJPEG, Google Chrome: MJPEG, Edge: MJPEG
User interface Type A (orange / grey)
Mirror function mirror, flip
Digital Noise Reduction yes
Network:
Network protocols TCP/IP, UDP, IPv4, IPv6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour, SNMP
Interfaces / Inputs/ Outputs:
Video outputs no
External connectors micro SD card slot, Connection board (LSA, RJ45, audio, I / O alarm & Sabotage contacts)
Ethernet interface 10Base-T, 100Base-TX
Alarm inputs 1
Alarm outputs 1
Serial interfaces Ethernet
General:
Dimensions (HxWxD) 130,50x82,15x265,80mm
Weight 1.3kg
llumination infrared
Illumination 4x High Power LEDs 850nm
Illumination range approx. 40m
Color (housing) Pantone Cool Gray 1C
Housing outdoor
Hosuing material aluminium
Integrated wall mount yes
Power consumption PoE, 9W
Blower yes
Mounting wall mount, ceiling mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP67
SDK upon request
Sunshield yes
Supply voltage PoE
Operating temperature -50°C ~ +50°C
Text display supplied
Vandal proof no
Parts supplied:
Parts supplied manual, bag of screws
Notes:
Remarks NDAA compliance under Section 889, Part A.
