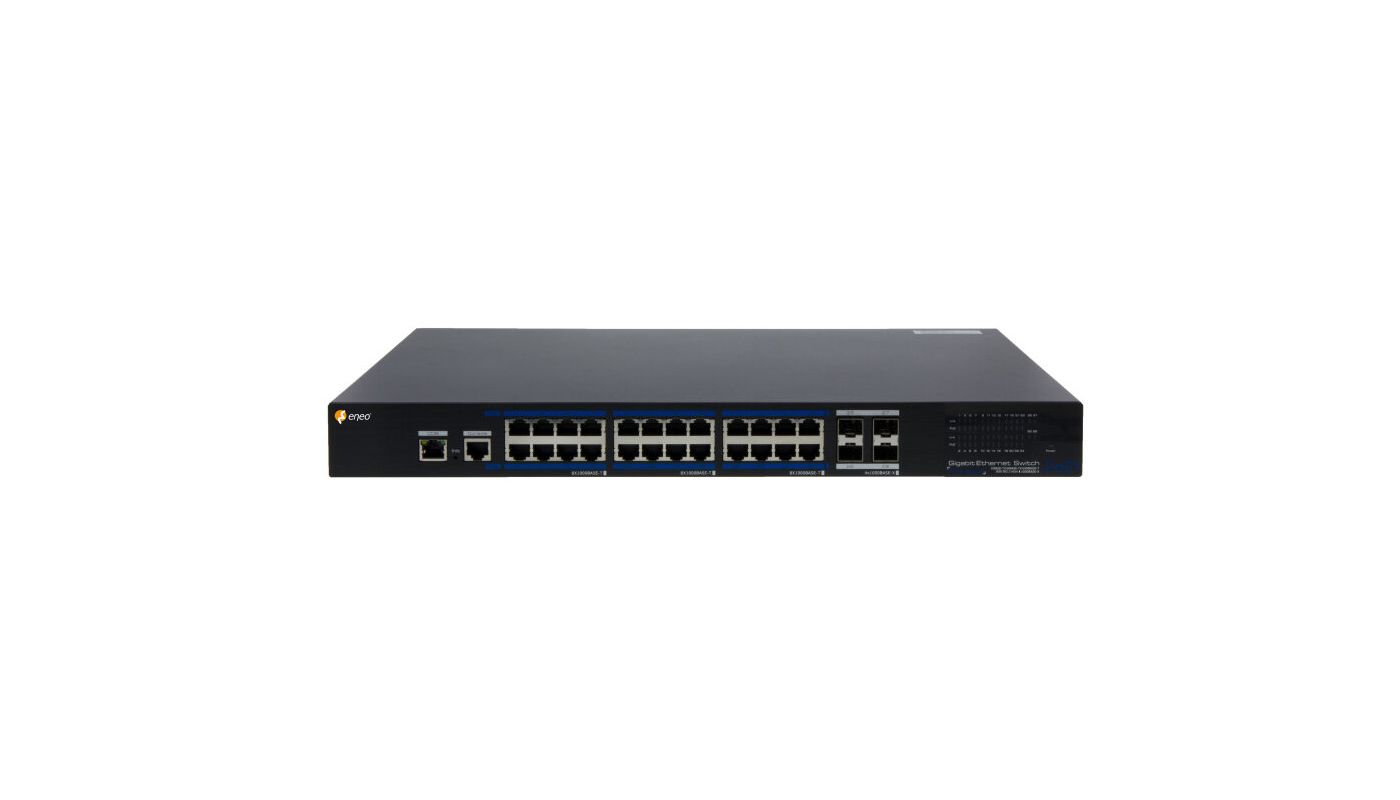

IAR-7SG1024MMB

SKU 226922
Gigabit Switch, Managed, 390W, 24x PoE, 4x SFP, 10/100/1000 Mbps, 19", 1HE

Main Features

PoE Switch, Rack Montage
Gigabit Uplink Ports: 4x SFP
24x 10/100/1000 PoE Ports, IEEE 802.3af/at
Bis zu 30W per Port, gesamt ≤390W
Fast Ring-Redundanz, Rekonfiguration < 20 ms
ESD Schutz IEC61000-4-5 Standard
Managed L2 Switch, Geräuscharme Lüfter
Web-Konfiguration, Web-Management
VLAN, PoE-Steuerung, MAC Address Table
Port-Spiegelung, Passwortschutz
Temperaturbereich -10° C ~ +50° C
Rackmontage Haltewinkel im Zubehör enthalten

More Information

Functions:

Multicast compliant
yes
Port mirror
yes
QoS
yes
SNMP
yes
Security
Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication
Network:

Network protocols
RSTP, FTP, TFTP, HTTP, IGMP, SNMPV1, SNMPV2, SNMPV3, QoS
Ethernet standards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE), IEEE 802.1Q VLAN, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p Quality of Service, IEEE 802.1x Radius network access control
Internal switching capacity (Mpps)
41,7 Mpps
Internal switching capacity (Gbit/s)
56 Gbps
VLAN
ja
Interfaces / Inputs/ Outputs:

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
24x 10/100/1000Base-T, 4x 1000Mbps SFP, Console RJ45-RS232, OOB 10/100Base-TX
Optical connector
SFP Port
General:

Series
eneo Switch
Dimensions (HxWxD)
44,5x442x320mm
Weight
4,5Kg
Construction
Rack Mount
Type
Layer2 Switch
Power consumption
450W
Blower
ja
Management
ja
Mounting
19" Rackeinbau
PoE budget
390 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Supply voltage
100~240VAC
Operating temperature
-10°C ~ +50°C
Application
indoor
Trunk
Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
Parts supplied:

Parts supplied
manual, power cord, 19" rack mount angle
Notes:

Brand
ENEO
PoE Ports (Anzahl)
24
Bauart
Rackmontage
Stromversorgung
100~240VAC
Hersteller-Nummer
226922
