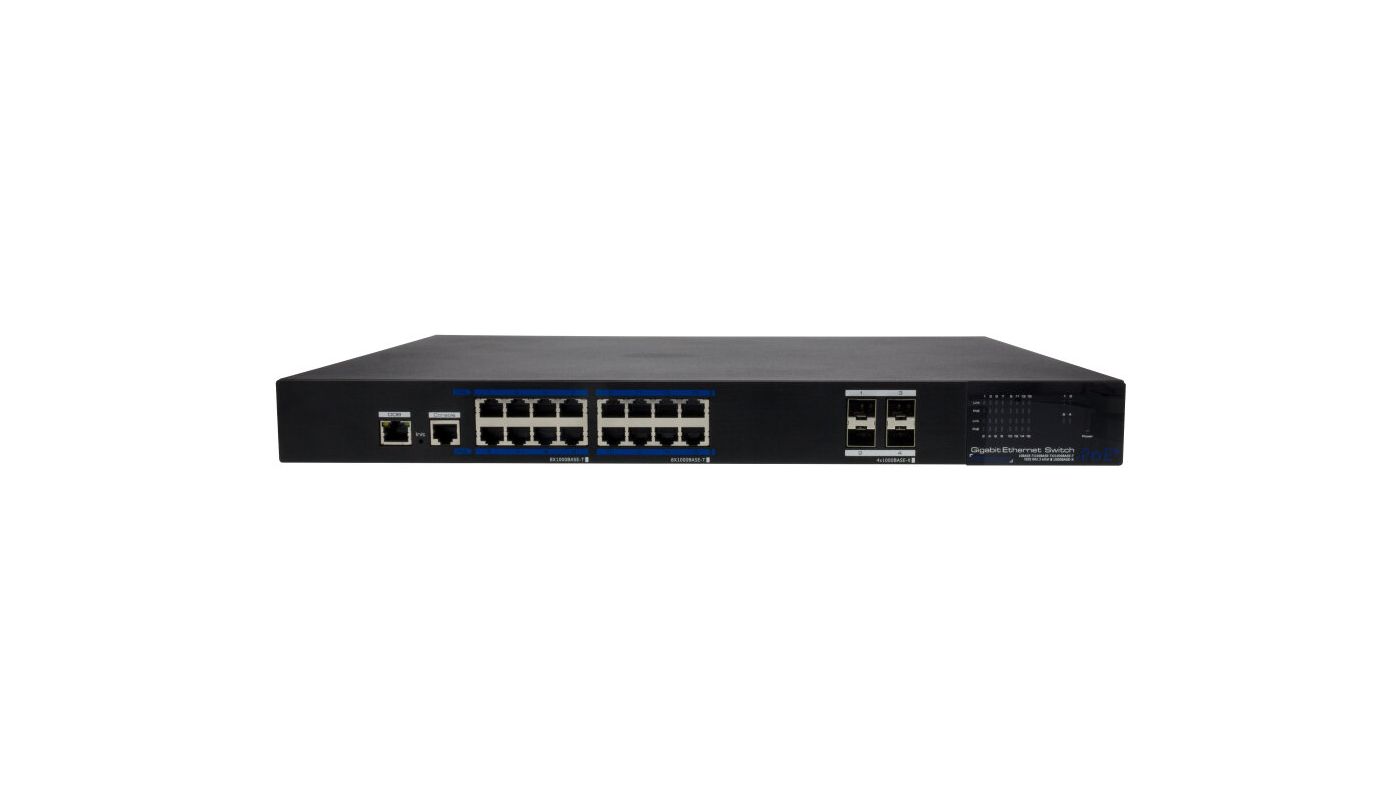

IAR-7SG1016MMB
SKU
226691
Gigabit Switch, Managed 270W, 16x PoE, 4x SFP, 10/100/1000 Mbps, 19", 1 U
Main Features
PoE Switch, Rack Montage
Gigabit Uplink Ports: 4x SFP
16x 10/100/1000 PoE Ports, IEEE 802.3af/at
Up to 30W per port, total ≤270W
Fast Ring-Redundant, Reconfiguration <20ms
ESD protection IEC61000-4-5 standard
Managed L2 switch
Web configuration, Web management
VLAN, PoE management, MAC address table
Port mirroring, password
Temperature range -10° C ~ +50° C
Rack mounting brackets included
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Functions:
- Multicast compliant
- yes
- Port mirror
- yes
- QoS
- yes
- SNMP
- yes
- Security
- Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication
- Network:
- Network protocols
- RSTP, FTP, TFTP, HTTP, IGMP, SNMPV1, SNMPV2, SNMPV3, QoS
- Ethernet standards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE), IEEE 802.1Q VLAN, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p Quality of Service, IEEE 802.1x Radius network access control
- Internal switching capacity (Mpps)
- 29,8 Mpps
- Internal switching capacity (Gbit/s)
- 40 Gbps
- VLAN
- yes
- Interfaces / Inputs/ Outputs:
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 16x 10/100/1000Base-T, 4x 1000Mbps SFP, Console RJ45-RS232, OOB 10/100Base-TX
- Optical connector
- SFP Port
- General:
- Brand
- ENEO
- Series
- eneo Switch
- Dimensions (HxWxD)
- 44,5x442x320mm
- Weight
- 4.5Kg
- PoE ports (number)
- 16
- Construction
- Rack Mount
- Type
- Layer2 switch
- Power consumption
- 320W
- Blower
- yes
- Management
- yes
- Mounting
- 19" rack
- PoE budget
- 270 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Supply voltage
- 100~240VAC
- Operating temperature
- -10°C ~ +50°C
- Application
- indoor
- Trunk
- Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
- Parts supplied:
- Parts supplied
- manual, power cord, 19" rack mount angle
- Notes:
- Manufacturer order number
- 226691
