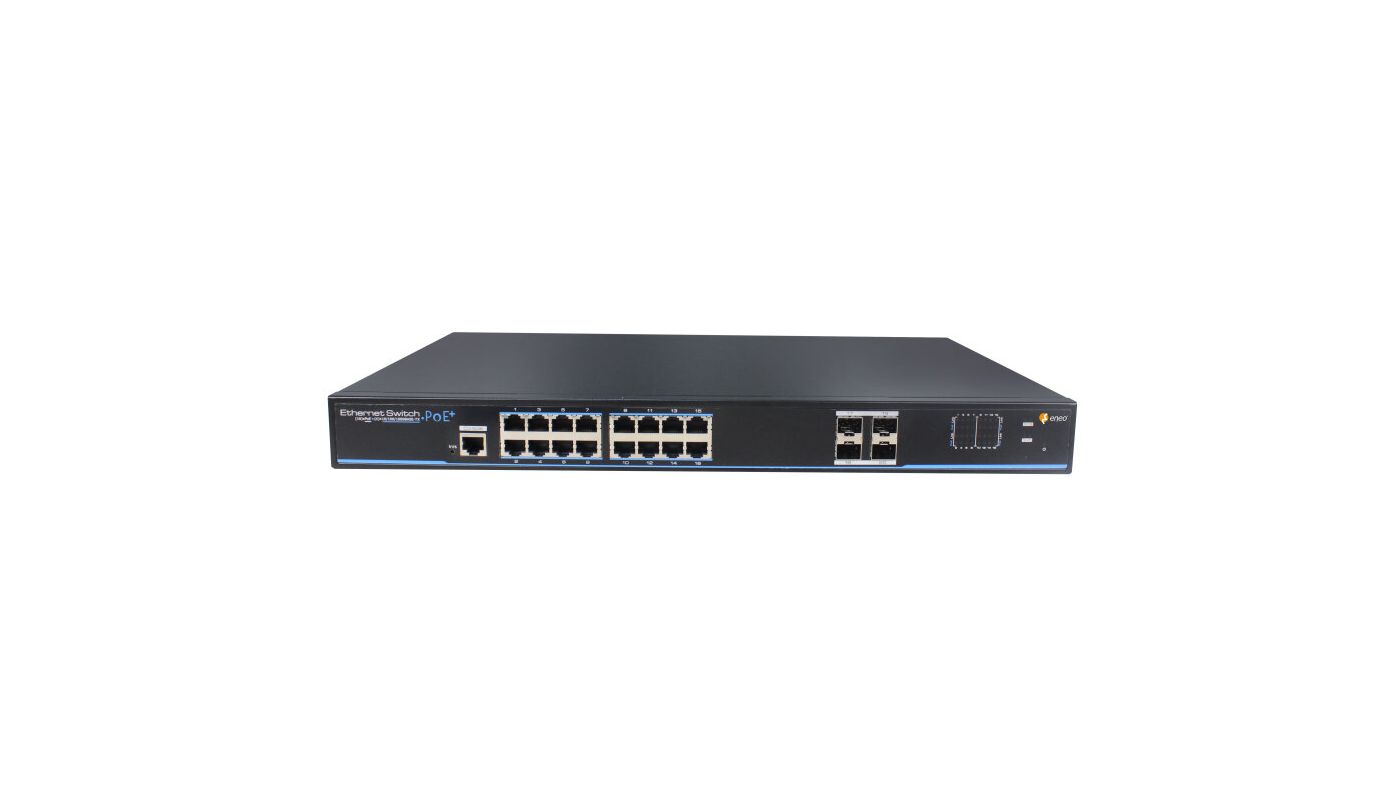

IAR-7SE2016MMA

Gigabit Switch, Managed, 250W 16x PoE, 4x SFP, 1000Mbps, Wall-/Rack mounting, Desktop
Art. No.
230114
  • 16-Port Gigabit PoE L2 Managed Ethernet Switch
  • 4x SFP Gigabit Uplink Ports
  • PoE Standard IEEE 802.3af/at (PSE)
  • Up to 30W per port, total ≤250W
  • Fast Ring-Redundant, Reconfiguration <20ms
  • Surge Immunity 6kV, Standard: IEC6000-4-5
  • ESD 6 kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2
  • Web configuration, Web management
  • VLAN, PoE management, MAC address table
  • Port mirroring, password protection
  • Temperature range -10° C ~ +50° C
  • Rack mounting brackets included
Specifications
Functions:
Multicast compliant yes
Port mirror yes
QoS yes
SNMP yes
Security Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication
Network:
Network protocols RSTP, IGMP, TFTP, HTTP, HTTPS, SNMPV1, SNMPV2, SNMPV3, QoS, DHCP, IPv4, IPv6, NTP, SNTP, ARP, STP, LACP
Ethernet standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN, IEEE 802.1p Quality of Service, IEEE 802.3ad Link Aggregation, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1x Radius network access control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
Internal switching capacity (Mpps) 29,8 Mpps
Internal switching capacity (Gbit/s) 40 Gbps
VLAN yes
Interfaces / Inputs/ Outputs:
Ethernet interface 10Base-T, 100Base-TX, 1000Base-T
Ports 16x 10/100/1000Base-T, 4x 1000Mbps SFP, Console RJ45-RS232, OOB 10/100Base-TX
Optical connector SFP Port
General:
Dimensions (HxWxD) 44x442x286mm
Weight 1.9kg
PoE ports (number) 16
Model Rackmontage, Desktop
Type Layer2 switch
Power consumption 270W
Blower yes
Management yes
Mounting 19" rack, desktop
PoE budget 250 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
Supply voltage 100~240VAC
Operating temperature -10°C ~ +50°C
Trunk Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
Parts supplied:
Parts supplied manual, power cord, 19" rack mount angle
