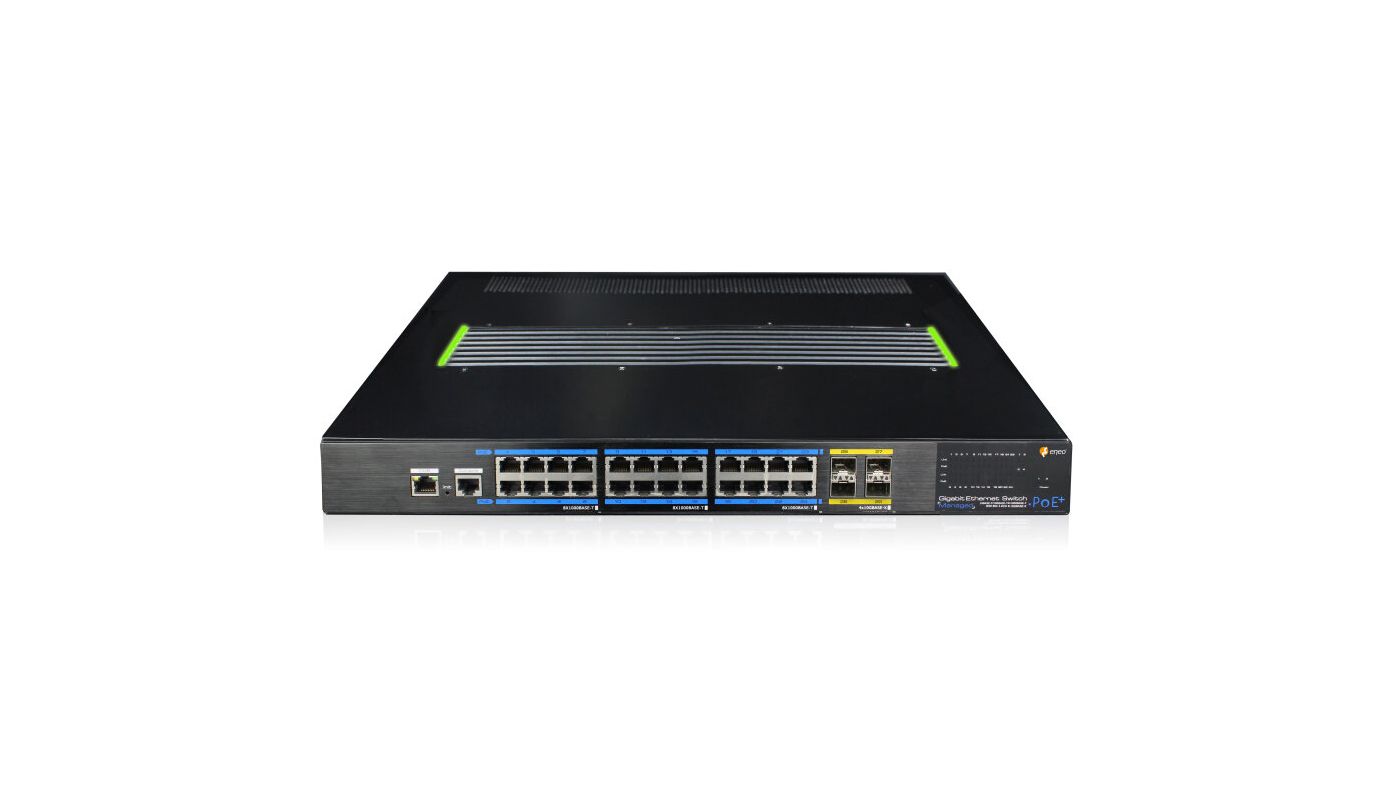

IAR-7SE1024MMC

Gigabit Switch managed, 350W Layer 3, 24xPoE, 4x SFP 10Gb, Wall-, Rackmount, Desktop
Art. No.
230033
  • 24-Port Gigabit PoE L3 Managed Ethernet Switch
  • 4x SFP 10 Gigabit Uplink Ports
  • PoE Standard IEEE 802.3af/at (PSE)
  • Up to 30W per port, total ≤350W
  • Fast Ring-Redundant, Reconfiguration <20ms
  • Surge Immunity 6kV, Standard: IEC6000-4-5
  • ESD 6 kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2
  • Web configuration, Web management
  • VLAN, PoE management, MAC address table
  • Port mirroring, password protection
  • Temperature range -10° C ~ +50° C
  • Rack mounting brackets included
Specifications
Functions:
Multicast compliant yes
Port mirror yes
QoS yes
SNMP yes
Security Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication
Network:
Network protocols RSTP, IGMP, TFTP, HTTP, HTTPS, SNMPV1, SNMPV2, SNMPV3, QoS, DHCP, IPv4, IPv6, NTP, STP, RIP, OSPF, VRRP, DSCP, SSH, GVRP, ACL, GMRP, CLI
Ethernet standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN, IEEE 802.1p Quality of Service, IEEE 802.3ad Link Aggregation, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1x Radius network access control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
Internal switching capacity (Mpps) 92,5 Mpps
Internal switching capacity (Gbit/s) 128 Gbps
VLAN yes
Interfaces / Inputs/ Outputs:
Ethernet interface 10Base-T, 100Base-TX, 1000Base-T
Ports 24x 10/100/1000Base-T, 4x 10GBit SFP, Console RJ45-RS232, OOB 10/100Base-TX
Optical connector SFP Port
General:
Dimensions (HxWxD) 44,5x442x320mm
Weight 6.5kg
PoE ports (number) 24
Model Rackmontage, Desktop
Type Layer3 Switch
Power consumption 380W max.
Blower no
Management yes
Mounting 19" rack, desktop
PoE budget 350 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
Supply voltage 100~240VAC
Operating temperature -10°C ~ +50°C
Trunk Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
Parts supplied:
Parts supplied manual, power cord, 19" rack mount angle
