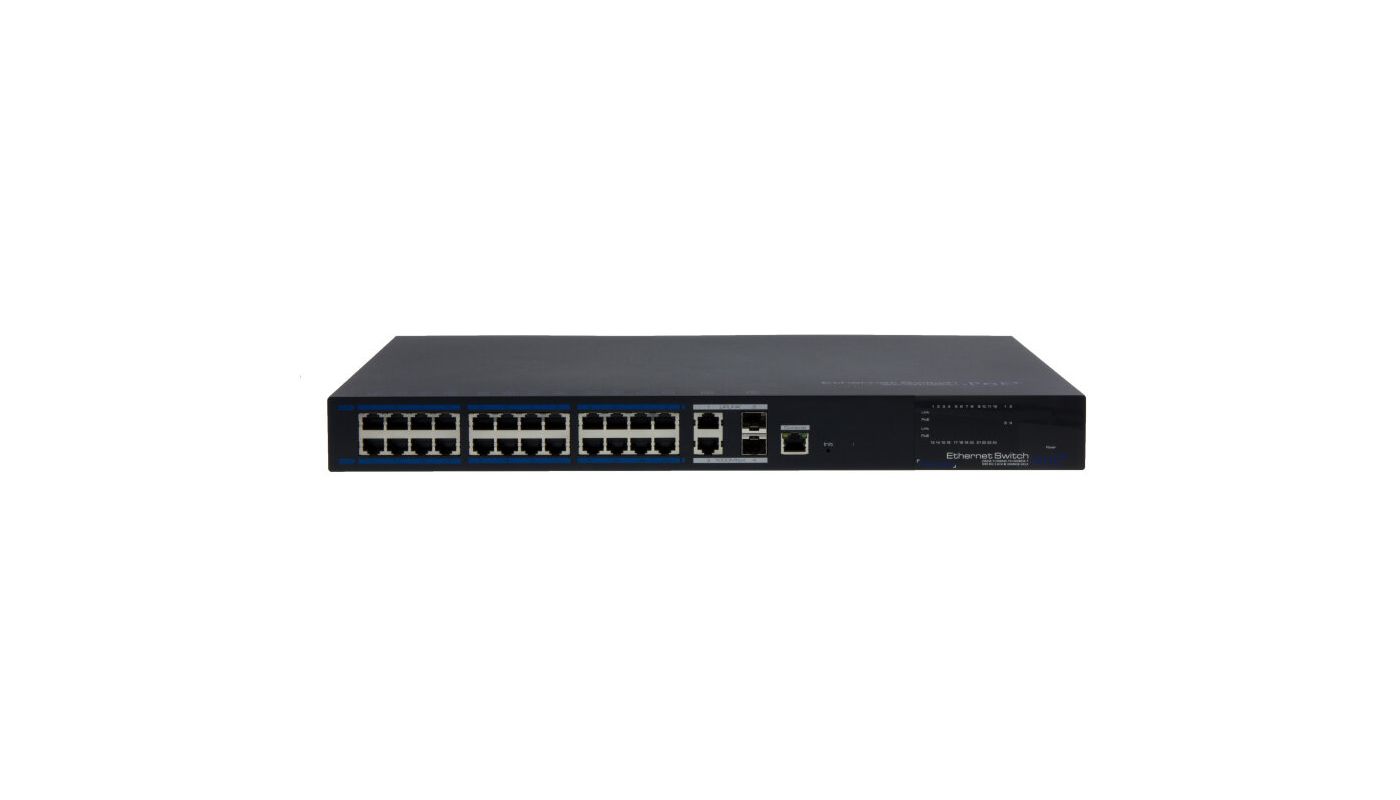

IAR-7SE1024MMB
Gigabit Switch, 24xPoE 100Mbps 2x RJ45 Gbit, 2xSFP Gbit, 390W, Managed, 19", 1HE
Art. No.
228222
- PoE Switch, Rack Montage
- Gigabit Uplink Ports: 2xRJ45, 2xSFP
- 24x 10/100 PoE Ports, IEEE 802.3af/at
- Up to 30W per port, Total ≤390W
- ESD protection IEC61000-4-5 standard
- Managed L2 switch, Built in low-noise fans
- Web configuration, Web management
- VLAN, PoE management, MAC address table
- Port mirroring, password
- Status LEDs
- Temperature range -10 ° C ~ + 50 ° C
- Rack mounting brackets included
| Functions: | |
|---|---|
| Multicast compliant | yes |
| Port mirror | yes |
| QoS | yes |
| SNMP | yes |
| Security | Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication |
| Network: | |
| Network protocols | RSTP, FTP, TFTP, HTTP, IGMP, SNMPV1, SNMPV2, SNMPV3, QoS |
| Ethernet standards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE), IEEE 802.1Q VLAN, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p Quality of Service, IEEE 802.1x Radius network access control |
| Internal switching capacity (Mpps) | 9,5 Mpps |
| Internal switching capacity (Gbit/s) | 12,8 Gbps |
| VLAN | yes |
| Interfaces / Inputs/ Outputs: | |
| Ethernet interface | 10Base-T, 100Base-TX, 1000Base-T |
| Ports | 24x 10/100Base-TX, 2x 10/100/1000T SFP, 2x 10/100/1000Base-TX, Console RJ45-RS232 |
| Optical connector | SFP Port |
| General: | |
| Dimensions (HxWxD) | 44,5x442x263mm |
| Weight | 3.8kg |
| PoE ports (number) | 24 |
| Model | Rackmontage |
| Type | Layer2 switch |
| Power consumption | 450W |
| Blower | yes |
| Management | yes |
| Mounting | 19" rack |
| PoE budget | 390 W |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Supply voltage | 100~240VAC |
| Operating temperature | -10°C ~ +50°C |
| Application | indoor |
| Trunk | Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5 |
| Parts supplied: | |
| Parts supplied | manual, power cord, 19" rack mount angle |
