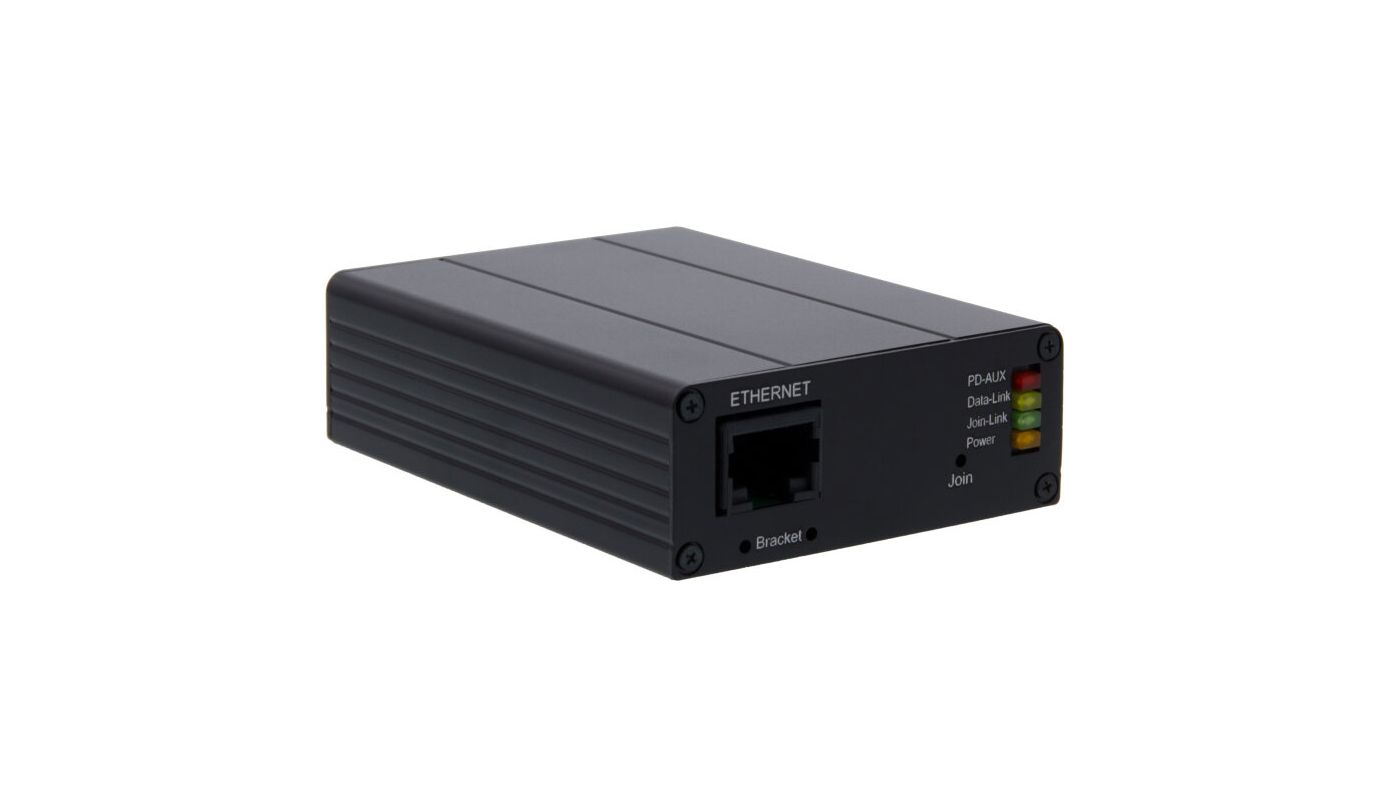

    IAM-6MC1001MRA

    Art. No.: 221577

    Ethernet Coax Receiver Data & Power over Coax 1 x RJ-45, 1 x BNC

    Mainfeatures

    • EPOC Ethernet and Power over Coax Transmission
    • RJ45 Ethernet and BNC-Female plug
    • Max. Transmission Rate 95Mbps Full Duplex
    • Data Transmission up to 2.4Km
    • PoE (PoC) Transmission up to 1.2Km
    • Power Supply Receiver PoE or 12-57V DC
    • PoE/PoE+ Power Supply for Transmitter
    • 128 Bit AES Network Encryption
    • Supports Multi Connection (Daisy Chain, Star)
    • Surge Protection
    • Temperature Range (Operating) -20° C bis +60°C
    • Easy Installation (Plug & Play)

    Specifications

    Output power 60W max.
    Network:
    Data transfer rate 95 Mbps
    Gigabit no
    Interfaces / Inputs / Outputs:
    External connections RJ-45, BNC - EPOC (max. 60W out), 56VDC input (DC plug)
    Ethernet interface 10Base-T, 100Base-TX
    Ports 1x 10/100Base-TX, 1x BNC
    PoE input IEEE802.3af, IEEE802.3at
    General:
    Series eneo EPOC
    Dimensions (HxWxD) 24x61,6x82,4mm
    Model module
    Range 2400 m
    Colour anthracite
    Housing Metal
    Type Media Converter
    Weight 77g
    Mounting desktop
    Supply voltage 56VDC, PoE (IEEE-802.3af)
    Temperature range (operation) -20°C ~ +60°C
    Parts supplied manual
    Application indoor
    Transmission medium Coax
