IAM-6MC1001M0A

Ethernet over Coax Transceiver Data/Power supply 270Mbps, 57VDC power input
Art. No.
221273
  • EPOC Ethernet and Power over Coax Transmission
  • RJ45 Ethernet and BNC-Female plug
  • Max. Transmission Rate 270Mbps Full Duplex
  • Data Transmission up to 2.4Km
  • Transmission PoC up to 1.2Km
  • Power Supply Transceiver 57V DC

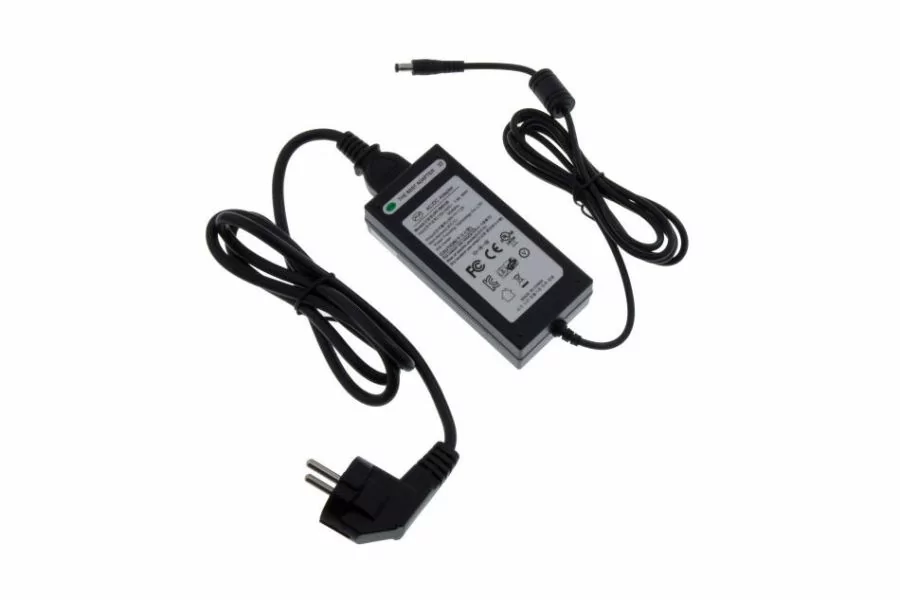

  • Power Output 12VDC/2A (with optional power supply 221276)
  • 128 Bit AES Network Encryption
  • Supports Multi Connection (Daisy Chain, Star)
  • Surge Protection
  • Temperature Range (Operating) -20° C bis +60°C
  • Easy Installation (Plug & Play)
Special features
Network transmission with 128bit AES encryption standard
Specifications
Series eneo EPOC
Network:
Data tranfer rate max. 270 Mbps
Interfaces / Inputs/ Outputs:
External connectors RJ-45, BNC - EPOC, 56VDC input (DC plug), 12VDC / 2A Poweroutput
Ethernet interface 10Base-T, 100Base-TX, 1000Base-T
General:
Dimensions (HxWxD) 28x83x132mm
Weight 200g
Model module
Colour anthracite
Housing Metal
Supply voltage 56VDC, Power over Coax (PoC)
Operating temperature -20°C ~ +60°C
Parts supplied manual
