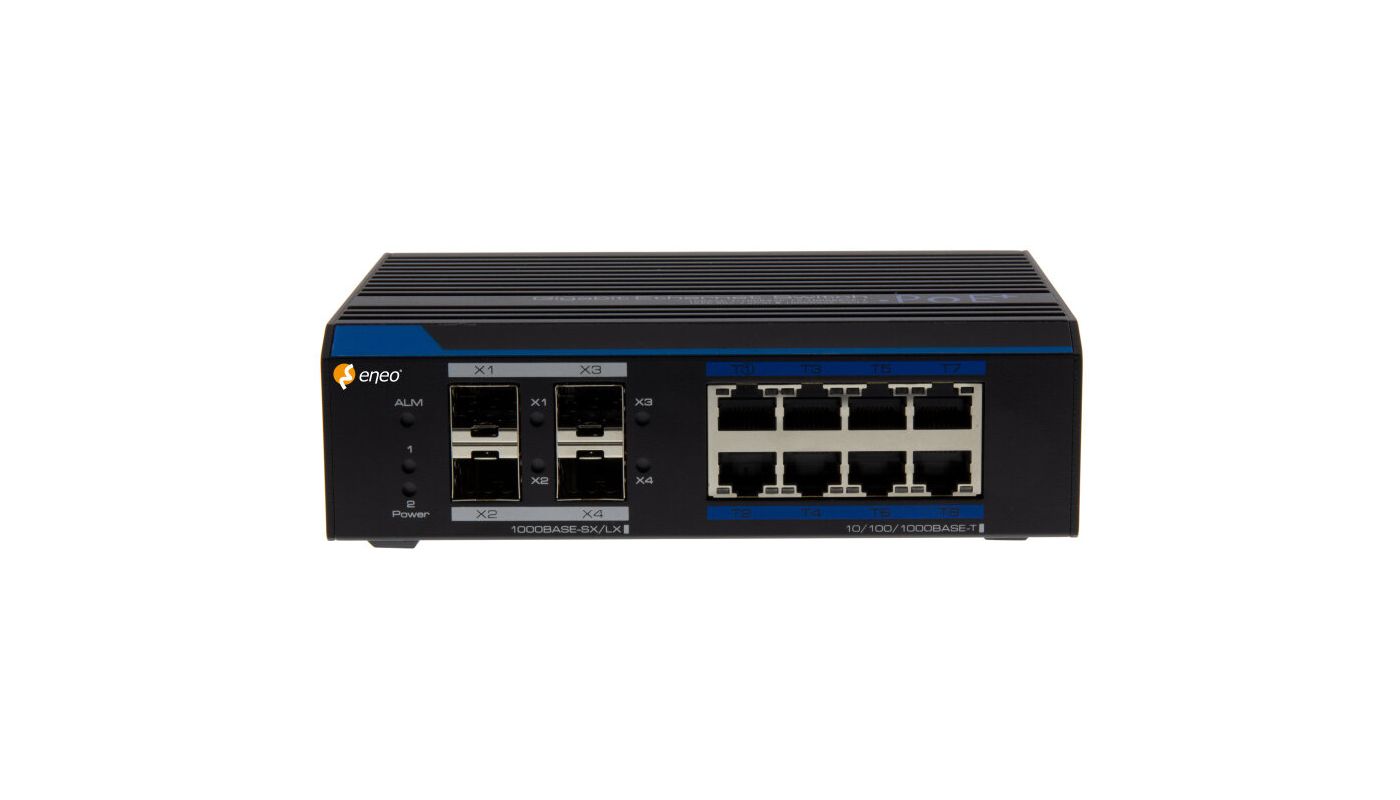

eneo IAM-5SG1008MMB
This article is no longer available
SKU
225289
Gigabit Switch, Managed, 240W, 8x PoE, 4x SFP, 1000Mbps, Industrial Design, -40°C~+75°C
Main Features
Gigabit PoE Switch, DIN Rail, fan-less
4x SFP Gigabit Uplink Ports
8x 10/100/1000 PoE Ports, IEEE 802.3af/at
Supports VLAN, RTSP, "Fast Ring", and QoS
Up to 30W per port, Total ≤240W (optional power supply)
Fast Ring-Redundant, Reconfiguration <20ms
Supports redundant power supply connection
ESD protection IEC61000-4-5 Standard
Web configuration, Web management
Fault Relay, Console Port, Status LED
PoE reset button for each port
Temperature range -40°C~+75°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 225289
- Brand
- ENEO
- Series
- eneo Switch
Functions
- Multicast
- Yes
Network
- Security
- Fast Ring, Password, Port Isolation, Port Speed Setting, Radius Authentication
- Eneo _netzwerkstandards
- IEEE 802.1D Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (MP per second)
- 17.9 Mpps
- Internal Switching Capacity (Gbit)
- 24 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 4x 1000Mbps SFP, 8x 10/100/1000Base-T
General
- Design
- DIN Rail Module
- Dimensions (WxHxD) (extended)
- 46,5x110x163mm
- Weight
- 750 kg
- Number of PoE ports
- 8
- Type
- Layer2 Switch
- Management
- Yes
- Mounting type
- DIN Rail, Wall
- PoE Budget (Total)
- 240 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 48-57 VDC
- Temperature Range (Operating)
- -40°C ~ +75°C
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,power cord,Mounting Bracket,PSU
Notes
- Remark
- External power supply specification: 100~240VAC,150W,30x70x150mm,-30°~+70°,To achieve the specified PoE budget (total) value,an appropriate optional power supply unit must be used.
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Data sheet PDF | 228.8 kB
- Manufacturer data sheet (german)
- Data sheet PDF | 228.7 kB
- Manufacturer data sheet (english)
- Manual PDF | 7.2 MB
- Manual for this product (english)
- Hi-Res images ZIP | 501.4 kB
- Product image in a high resolution
- Declaration of conformity PDF | 100.1 kB
- Declaration of conformity (german and english)
