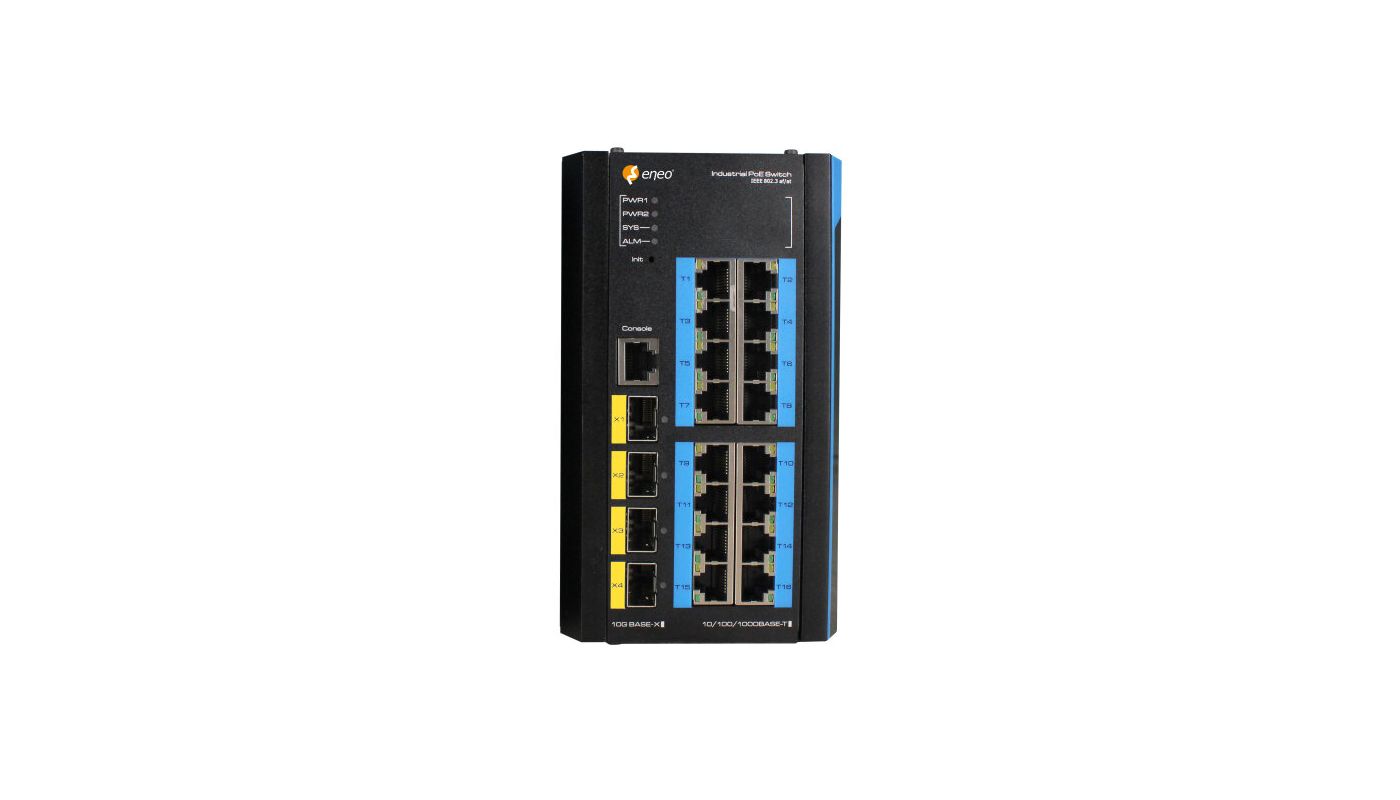

IAM-5SE1016IMA
Gigabit Switch, Managed, 360W Layer 3, 16xPoE, 4x SFP 10G, Industrial Design
Art. No.
230036
- 16-Port Gigabit Switch Managed L3, Fanless
- 4x SFP 10 Gigabit Uplink Ports
- PoE Standard IEEE 802.3af/at
- Up to 30W per port, total ≤360W
- Power supply not included
- Fast Ring-Redundant, Reconfiguration <20ms
- ESD protection IEC61000-4-5 standard
- Web configuration, Web management
- VLAN, PoE management, MAC address table
- Port mirroring, password protection
- Relay Alarm for power, cable link and PoE link down
- Temperature range -40° C ~ +75° C
| Functions: | |
|---|---|
| Multicast compliant | yes |
| Port mirror | yes |
| QoS | yes |
| SNMP | yes |
| Security | Password protection, Fast-Ring, Port Isolation, Port speed setup, Radius Authentication |
| Network: | |
| Network protocols | RSTP, IGMP, HTTP, HTTPS, SNMPV1, SNMPV2, SNMPV3, QoS, DHCP, IPv4, IPv6, NTP, STP, RIP, OSPF, VRRP, SSH, CLI |
| Ethernet standards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN, IEEE 802.1p Quality of Service, IEEE 802.3ad Link Aggregation, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1x Radius network access control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE) |
| Internal switching capacity (Mpps) | 83.3 Mpps |
| Internal switching capacity (Gbit/s) | 112 Gbps |
| VLAN | yes |
| Interfaces / Inputs/ Outputs: | |
| Ethernet interface | 10Base-T, 100Base-TX, 1000Base-T |
| Ports | 16x 10/100/1000Base-T, 4x 10GBit SFP, Console RJ45-RS232, OOB 10/100Base-TX |
| Optical connector | SFP Port |
| General: | |
| Dimensions (HxWxD) | 95,6x163x110mm |
| Weight | 1.7kg |
| PoE ports (number) | 16 |
| Model | DIN rail module |
| Type | Layer3 Switch |
| Power consumption | 380W max. |
| Blower | no |
| Management | yes |
| Mounting | DIN rail, wall mount |
| PoE budget | 360 W |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Supply voltage | 48~57 VDC |
| Operating temperature | -40°C ~ +75°C |
| Trunk | Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5 |
| Parts supplied: | |
| Parts supplied | manual, Mounting Bracket |
| Notes: | |
| Remarks | Power supply unit is not included in the scope of delivery, To achieve the specified PoE budget (total) value, an appropriate optional power supply unit must be used. |
