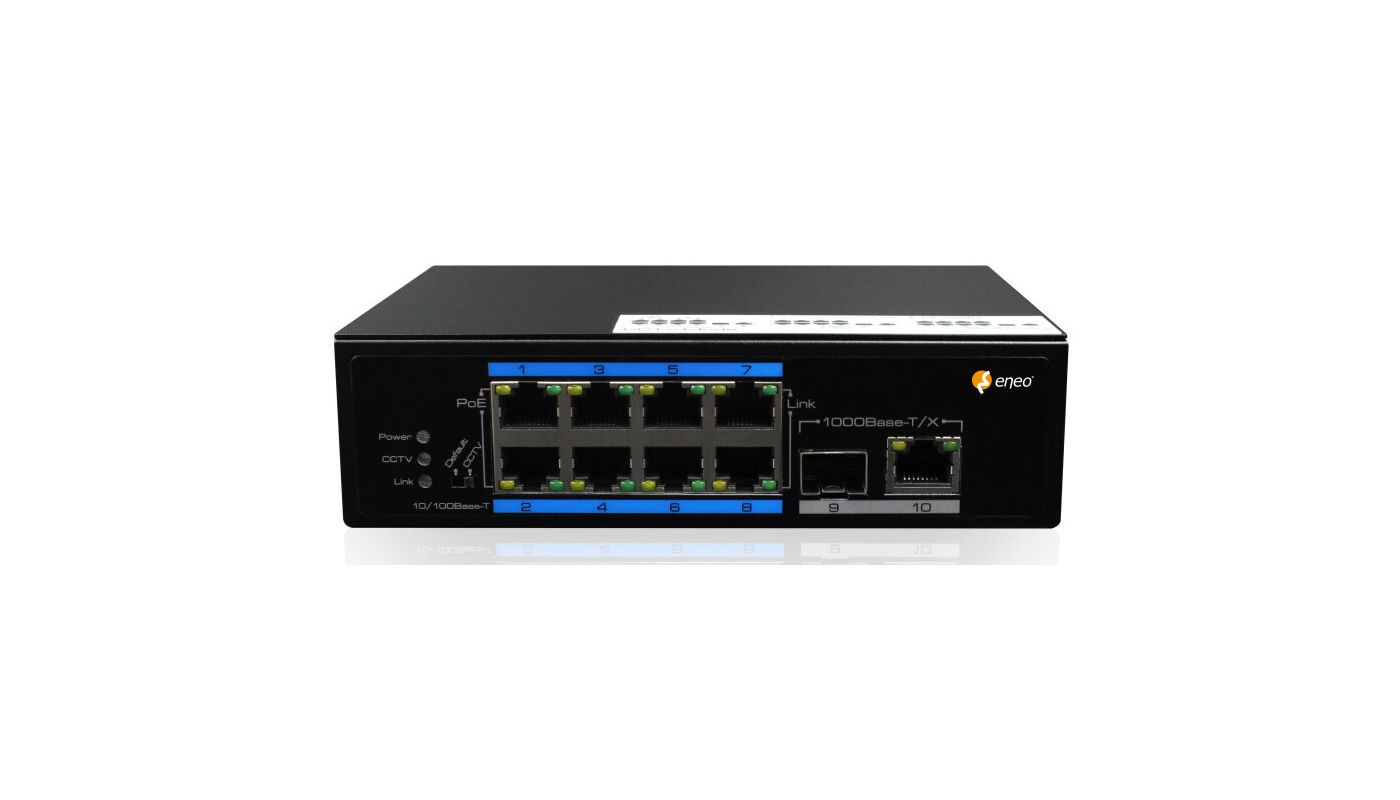

IAM-5SE1008IUA

SKU 230034
Switch unmanged, 120W, 8xPoE 1xRJ45 ,1xSFP Gigabit Industrial Design

Main Features

Ethernet PoE Switch, DIN Rail
Gigabit Uplink Ports 1xRJ45, 1xSFP
8x 10/100 Ports,IEEE 802.3af/at
Bis zu 30W pro Port, insgesamt ≤240W (optionales Netzteil)
Überspannungsschutz IEC61000-4-5 (6KV)
Status-LED: Uplink, PoE, Optische Schnittstelle,Power
CCTV-Modus ermöglicht Übertragung bis 250m @10Mbps
Temperaturbereich -30° C ~ +65° C

More Information

Functions:

Multicast compliant
no
Port mirror
no
QoS
no
SNMP
no
Security
CCTV Mode
Network:

Ethernet standards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
Internal switching capacity (Mpps)
4,0 Mpps
Internal switching capacity (Gbit/s)
5,6 Gbps
VLAN
ja
Interfaces / Inputs/ Outputs:

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
1x 10/100/1000Base-T, 1x 10/100/1000T SFP, 8x 10/100Base-TX
Optical connector
SFP Port
General:

Series
eneo Switch
Dimensions (HxWxD)
44x159x110mm
Weight
500g
Construction
housing
Type
Unmanaged
Blower
nein
Management
nein
Mounting
desktop
PoE budget
240 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Supply voltage
48~57 VDC
Operating temperature
-30°C ~ +65°C
Trunk
Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
Parts supplied:

Parts supplied
manual, power cord, Mounting Bracket, PSU
Notes:

Remarks
External power supply specification: 100~240VAC, 120W, -10°~+55°., To achieve the specified PoE budget (total) value, an appropriate optional power supply unit must be used.
Other

Brand
ENEO
PoE Ports (Anzahl)
8
Bauart
Gehäuse
Stromversorgung
48-57 VDC
Hersteller-Nummer
230034
