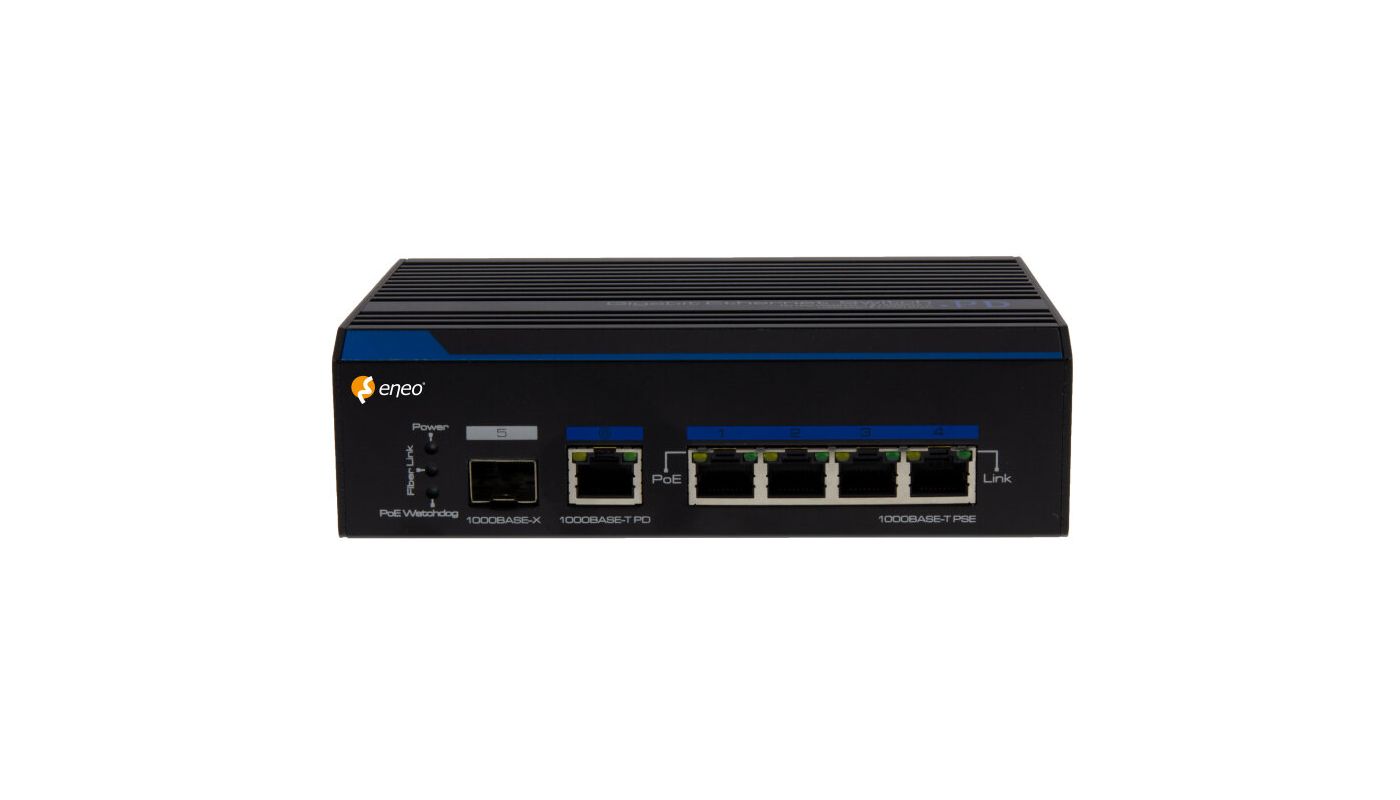

IAM-5SE1004MUP

Gigabit Switch, Unmanaged 60W, 4x PoE, Industrial Design -40°C~+75°C, PD port
Art. No.
221889
  • Gigabit PoE Switch, DIN Rail
  • 4x 10/100/1000 PoE Ports, IEEE 802.3ab/af/at/u
  • Gigabit Uplink Ports 1xRJ45, 1xSFP
  • 1 x RJ45 10/100/1000 PoE In Port (60W PoE Input)
  • Up to 30W per port, total max. 120W
  • PoE watchdog (reboot automatically)
  • Surge protection IEC61000-4-5 (6KV)
  • Temperature range -40° C ~ +75° C
Specifications
Functions:
Multicast compliant no
Port mirror no
QoS no
SNMP no
Network:
Ethernet standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
Internal switching capacity (Mpps) 8,9 Mpps
Internal switching capacity (Gbit/s) 12 Gbps
VLAN yes
Interfaces / Inputs/ Outputs:
Ethernet interface 10Base-T, 100Base-TX, 1000Base-T
Ports 4x 10/100/1000Base-T, 1x 1000Base-X SFP, 1x 10/100/1000Base-T (PoE-PD)
General:
Dimensions (HxWxD) 46x110x163mm
Weight 540g
PoE ports (number) 4
Model DIN rail module
Type Unmanaged
Power consumption 60W
Blower no
Management no
Mounting DIN rail
PoE budget 60 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
Supply voltage 48~57 VDC, PoE
Operating temperature -40°C ~ +75°C
Application indoor
Trunk Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC 61000-6-2
Parts supplied:
Parts supplied manual, power cord, Mounting Bracket, PSU
Notes:
Remarks We recommend the use edp. number: 216568 PoE Injector NE-60PoE to ensure an interference-free function with power supply via PD port
More Choices:
  1. SFP-0850M10
    Art. No.: 216479 SFP-0850M10
    SFP Modul, 1.25Gbps, 550m, Multimode, 850nm, Duplex LC Connector, 0°~+70°C
  2. SFP-1310M40
    Art. No.: 216478 SFP-1310M40
    SFP Modul, 1.25Gbps, 550m, Multimode, 1310nm, Duplex LC Connector, -40°~+75°C
  3. SFP-1310S10
    Art. No.: 216566 SFP-1310S10
    SFP Modul, 1.25Gbps, 20km, Singlemode, 1310nm, Duplex LC Connector, 0°~+70°C
  4. SFP-1310S40
    Art. No.: 216477 SFP-1310S40
    SFP Modul, 1.25Gbps, 20km, Singlemode, 1310nm, Duplex LC Connector -40°~+75°C
  5. SFP-0850M40
    Art. No.: 218758 SFP-0850M40
    SFP Modul, 1,25Gbps, 550m, Multimode, 850nm, Duplex LC Connector, -40° ~ +70°C
  6. RJT-1000SFP
    Art. No.: 219525 RJT-1000SFP
    RJ45- SFP Transceiver Modul, 1000Base-T, 0°~ +70°C
  7. NE-60PoE
    Art. No.: 216568 NE-60PoE
    PoE Injector, 60W, for Switch IAD-5SG1004MUA and IAM-5SE1004MUP
