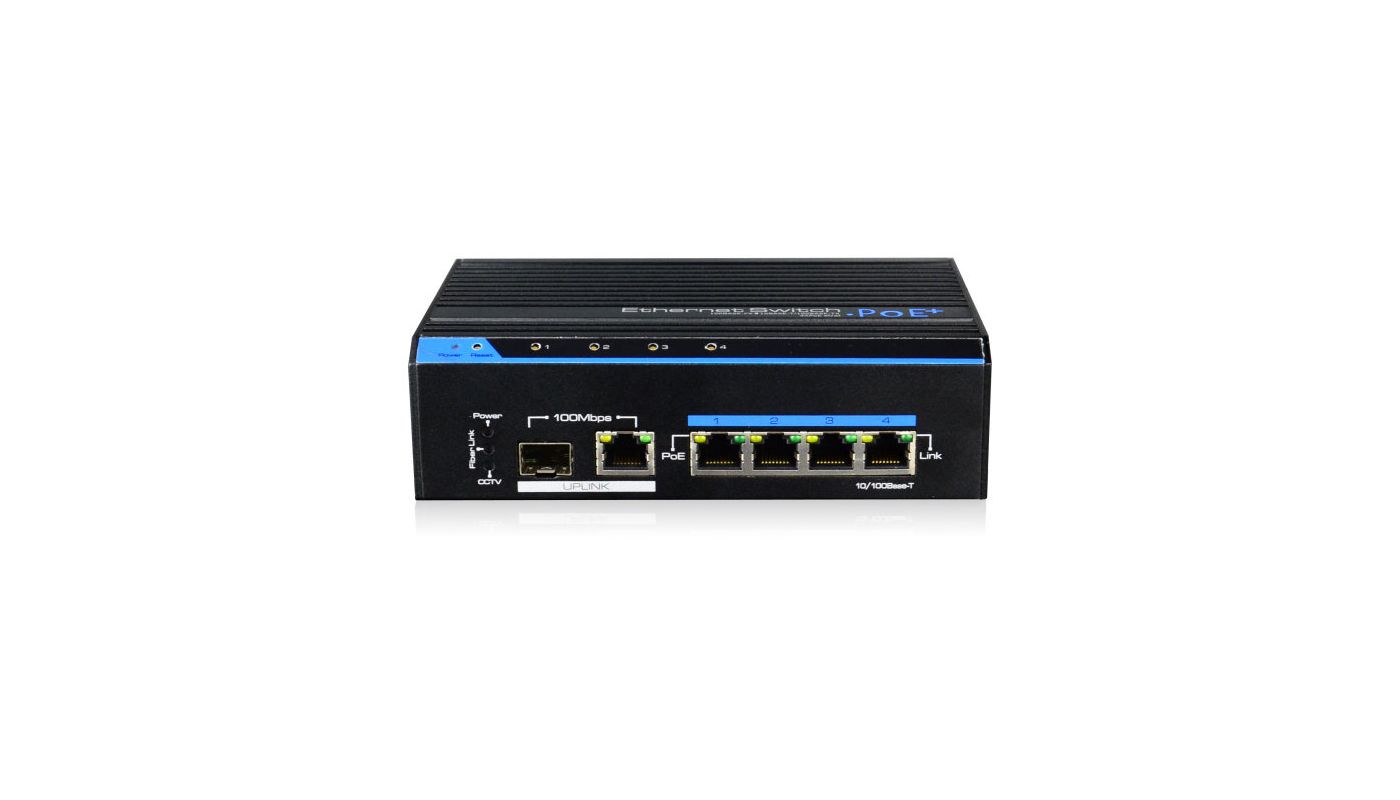

    IAM-5SE1004MUD

    Art. No.: 228224

    Switch, Unmanaged, 120W, 4xPoE 1x RJ45, 1x SFP 100Mbps, Industrial Design, -40°C~+75°C

    Mainfeatures

    • Ethernet PoE Switch, DIN Rail
    • Uplink ports 1xRJ45, 1xSFP
    • 4x 10/100 PoE Ports,IEEE 802.3af/at
    • Up to 30W per port
    • Surge protection IEC61000-4-5 (6KV)
    • Status LED: Uplink, PoE, Optical port, Power
    • CCTV mode allows transmission up to 250m @ 10Mbps
    • Temperature range -40° C ~ +75° C

    Specifications

    Features:
    Multicast compliant no
    Port mirror no
    QoS no
    SNMP no
    Network:
    Ethernet Standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
    Internal switching capacity (Mpps) 0,9 Mpps
    Internal switching capacity (Gbit/s) 1,5 Gbps
    VLAN yes
    Interfaces / Inputs / Outputs:
    Ethernet interface 10Base-T, 100Base-TX
    Ports 4x 10/100Base-TX, 1x 100 SFP, 1x 10/100Base-TX
    Optical connection SFP Port
    General:
    Dimensions (HxWxD) 46x110x159mm
    Number PoE ports 4
    Model DIN rail module
    Type Layer2 switch
    Weight 530g
    Blower no
    Management no
    Mounting DIN rail, wall mount
    PoE Power 120 W
    Power over Ethernet IEEE 802.3at
    Supply voltage 48~57 VDC
    Temperature range (operation) -40°C ~ +75°C
    Scope of delivery:
    Parts supplied manual, power cord, Mounting Bracket, PSU
    Notes:
    Application indoor
    Trunk Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC61000-4-5
