IAM-5SE1004MUC

Main image Click to view image in fullscreen 220212

IAM-5SE1004MUC

SKU 220212

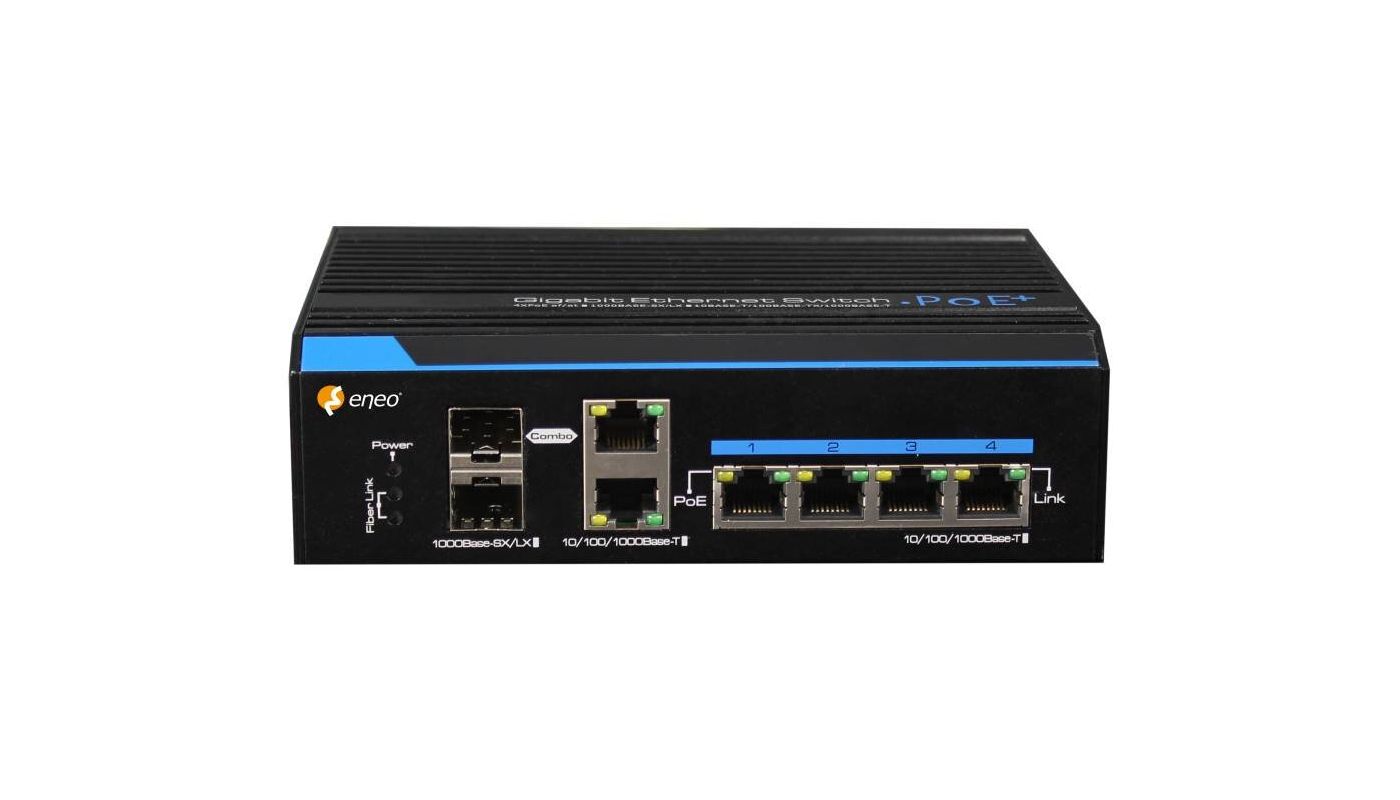

Gigabit Switch, Unmanaged, 4x PoE, 2x RJ45 and 2x SFP, 1000Mbps, Industrial Design

Main Features

Gigabit PoE switch, DIN Rail

Gigabit Uplink ports 2xRJ45, 2xSFP

4x 10/100/1000 PoE Ports,IEEE 802.3af/at

Surge protection IEC61000-4-5 (6KV)

Status LED: Uplink, PoE, Optical port, Power

Temperature range -40° C ~ +75° C

Buy now You will be redirected to our shop on Videor.com for purchase.

Functions:
Multicast compliant: no
Port mirror: no
QoS: no
SNMP: no
Network:
Ethernet standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE)
Internal switching capacity (Mpps): 10,4 Mpps
Internal switching capacity (Gbit/s): 14 Gbps
VLAN: no
Interfaces / Inputs/ Outputs:
Ethernet interface: 1000Base-T, 100Base-TX, 10Base-T
Ports: 2x 10/100/1000Base-TX, 2x 10/100/1000T SFP, 4x 10/100/1000Base-T
Optical connector: SFP Port
General:
Brand: ENEO
Series: eneo Switch
Dimensions (HxWxD): 46x110x163mm
Weight: 530g
PoE ports (number): 4
Construction: DIN rail module
Type: Unmanaged
Blower: no
Management: no
Mounting: DIN rail, wall mount
PoE budget: 120 W
Power over Ethernet: IEEE 802.3af, IEEE 802.3at
Supply voltage: 48~57 VDC
Operating temperature: -40°C ~ +75°C
Application: indoor
Parts supplied:
Parts supplied: manual, power cord, Mounting Bracket, PSU
Notes:
Remarks: External power supply specification: 100~240VAC, 150W, 30x70x150mm, -30°~+70°
Other
Manufacturer order number: 220212

Data sheet PDF: Data sheet with specifications generated live from the product database
Documents PDF: Detailed manual for this product
Documents PDF: Declaration of Conformity in German and English
Marketing Infos PDF | 109.3 kB: SFP compatibility overview regarding the eneo switches
Firmware HTML | 835 B: Produkt Firmware_CAD Files
Marketing Infos PDF | 147.9 kB: NDAA konforme Produkte
