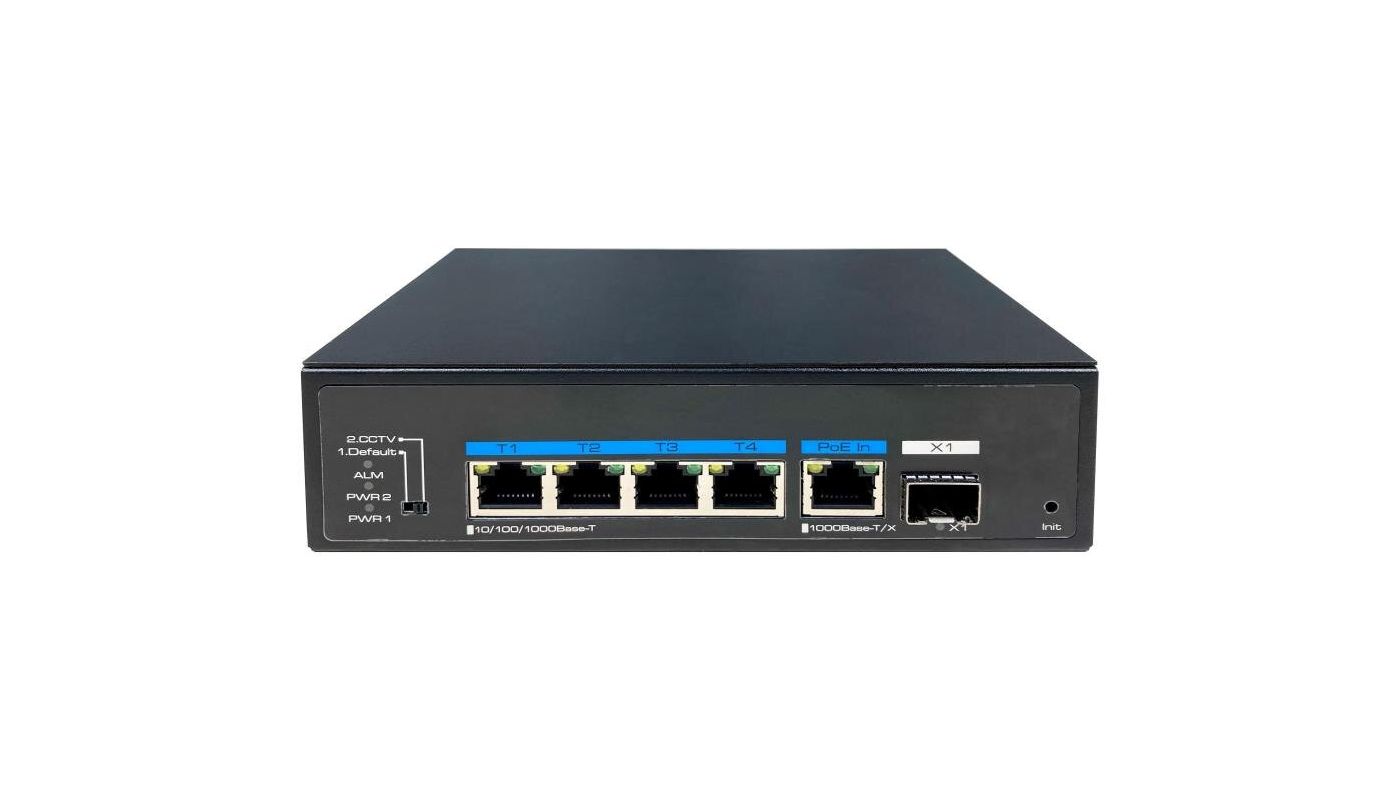

IAM-5SE1004IUP
SKU
237908
Gigabit Switch, Unmanaged 90W, 4x PoE, Industrial Design -20°C~+65°C, PD port
Main Features
Gigabit PoE Switch, DIN Rail
4x 10/100/1000 PoE ports, IEEE 802.3af/at/bt
Maximum 90W power budget
1 x SFP Gigabit uplink port
1 x RJ45 Gigabit uplink port, PD-capable (90W PoE input)
CCTV mode, extended transmission distance
1 x output relay
Overvoltage protection IEC61000-4-5 (6KV)
Temperature range -20°C ~ +65°C
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Functions:
- Multicast compliant
- no
- Port mirror
- no
- QoS
- no
- SNMP
- no
- Network:
- Ethernet standards
- IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.1D Spanning Tree Protocol, IEEE 802.3af Power Over Ethernet (PoE), IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3bt Power Over Ethernet (PoE++/4PPoe)
- Internal switching capacity (Mpps)
- 8,9 Mpps
- Internal switching capacity (Gbit/s)
- 12 Gbps
- VLAN
- no
- Interfaces / Inputs/ Outputs:
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 1x 10/100/1000Base-T (PoE-PD), 1x 1000Base-X SFP, 4x 10/100/1000Base-T
- General:
- Brand
- ENEO
- Series
- eneo Switch
- Dimensions (HxWxD)
- 44x110x160mm
- Weight
- 540g
- PoE ports (number)
- 4
- Construction
- DIN rail module
- Type
- Unmanaged
- Power consumption
- 130W
- Blower
- no
- Management
- no
- Mounting
- DIN rail
- PoE budget
- 120 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Supply voltage
- 48~57 VDC, PoE
- Operating temperature
- -40°C ~ +65°C
- Application
- indoor
- Trunk
- Contact discharge 6KV, Air discharge 8KV, IEC61000-4-2, IEC 61000-6-2
- Parts supplied:
- Parts supplied
- manual, power cord, Mounting Bracket
- Notes:
- Remarks
- Power supply unit is not included in the scope of delivery, To achieve the specified PoE budget (total) value, please use suitable power supplies or PoE injector.PoE budget: 90W max. for a single PoE port; 75W max. for all PoE ports when supplied via PD port; 120 W max. for all PoE ports when supplied via DC input, PoE budget: 90W max. for a single PoE port; 75W max. for all PoE ports when supplied via PD port; 120 W max. for all PoE ports when supplied via DC input.
- Other
- Model
- DIN rail module
- Manufacturer order number
- 237908
