Mainfeatures

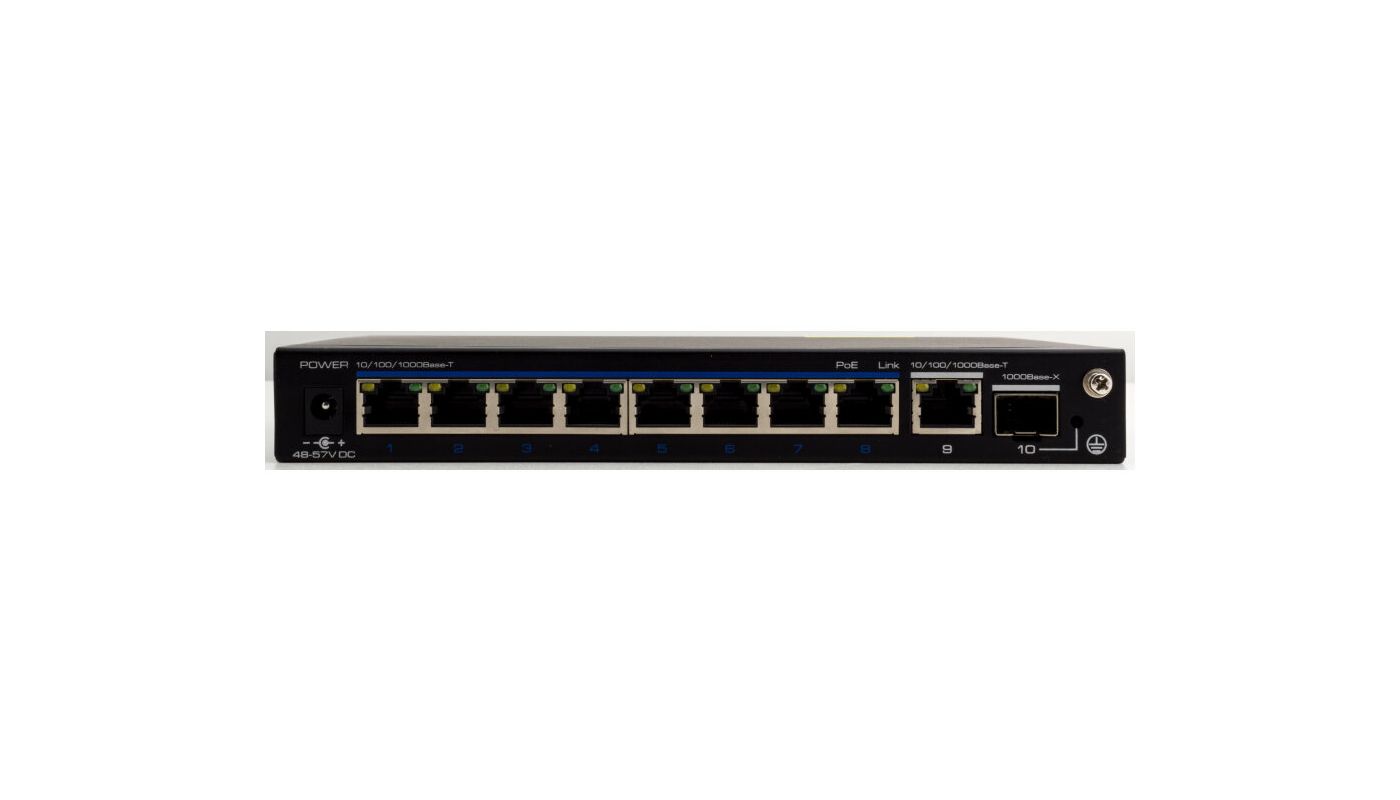

- Gigabit PoE Switch, desktop application
- Gigabit Uplink Ports: 1x RJ45, 1x SFP
- 8x 10/100/1000 PoE Ports, IEEE 802.3af/at
- Up to 30W per Port, Total ≤120W
- ESD protection IEC61000-4-2 Standard
- CCTV mode allows transmission up to 250m @ 10Mbps
- Brackets and 150W power-adaptor scope of supply
Specifications
| Features: | |
| Port mirror | no |
| QoS | no |
| SNMP | no |
| Network: | |
| Ethernet Standards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX, IEEE 802.3x Flow Control, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE) |
| Internal switching capacity (Mpps) | 14,9 Mpps |
| Internal switching capacity (Gbit/s) | 20 Gbps |
| VLAN | yes |
| Interfaces / Inputs / Outputs: | |
| Ethernet interface | 10Base-T, 100Base-TX, 1000Base-T |
| Ports | 8x 10/100/1000Base-T, 1x 1000Base-X SFP, 1x 10/100/1000Base-Tx |
| Optical connection | SFP Port |
| General: | |
| Dimensions (HxWxD) | 27x200x101,8mm |
| 19" Rack mountable | no |
| Number PoE ports | 8 |
| Model | housing |
| Type | Layer2 switch |
| Weight | 500g |
| Blower | no |
| Management | no |
| Mounting | desktop |
| PoE Power | 120 W |
| Power over Ethernet | IEEE 802.3at |
| Supply voltage | 48~57 VDC |
| Temperature range (operation) | -10°C ~ +45°C |
| Scope of delivery: | |
| Parts supplied | manual, power cord, Mounting Bracket, PSU |
| Notes: | |
| Remarks | CCTV mode: transmission of 10Mbps @ 250m, CCTV mode, PoE Power output: 29.2W @ 1m; 25.8W @ 100m; 24.2W @ 150m; 19.9W @ 250m |
