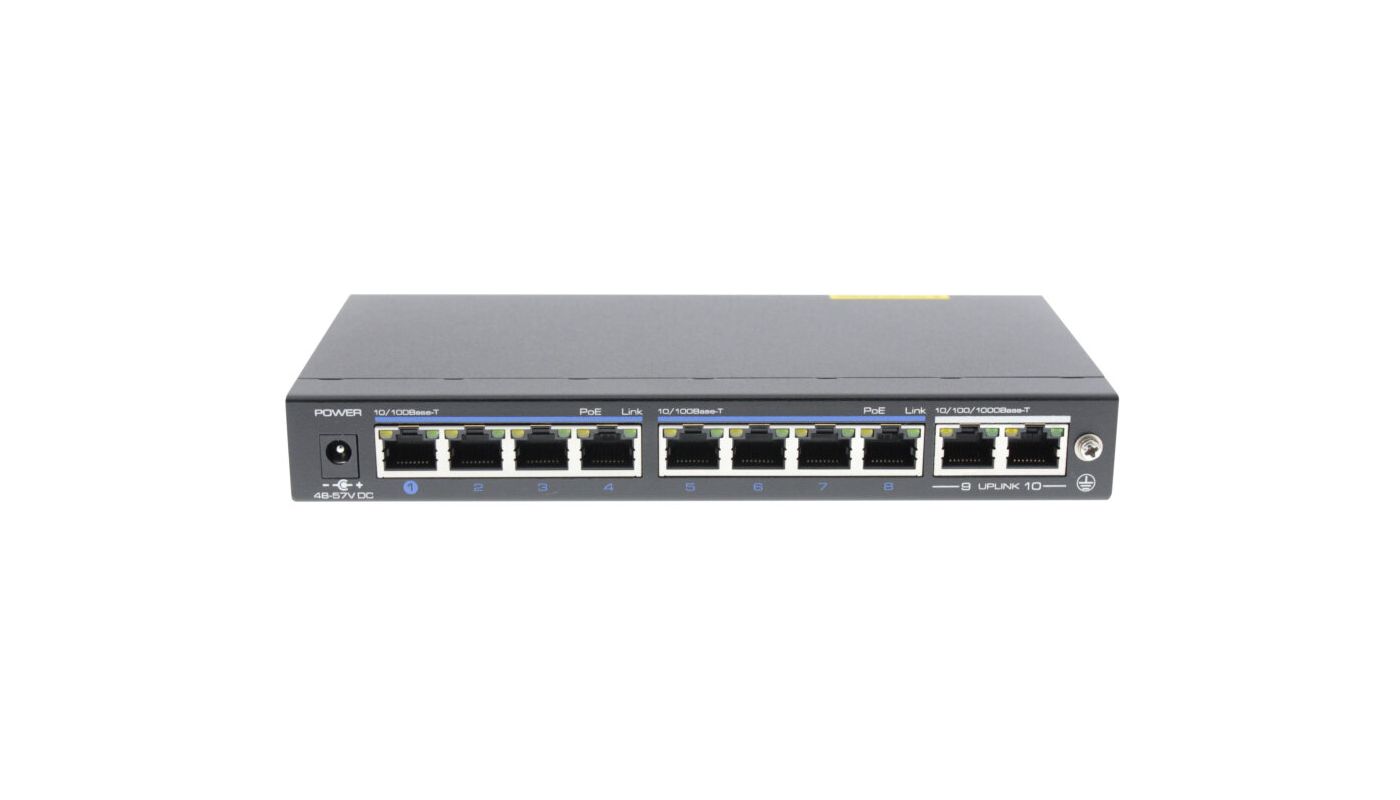

IAD-5SE1008MUA
Switch, Unmanaged, 120W 8x PoE, 2 x RJ45 Uplink 10/100/1000 Mbps, Desktop
Art. No.
220593
- Ethernet PoE Switch, desktop application
- Gigabit Uplink Ports: 2 x RJ45
- 8 x 10/100 PoE Ports IEEE 802.3af/at
- Up to 30W per Port, Total ≤120W
- Surge protection IEC61000-4-5 (6KV)
- CCTV mode allows transmission up to 250m @ 10Mbps
- Plug and Play no further settings necessary
| Functions: | |
|---|---|
| Port mirror | no |
| QoS | no |
| SNMP | no |
| Security | CCTV Mode |
| Network: | |
| Ethernet standards | IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3at Power Over Ethernet (PoE+), IEEE 802.3af Power Over Ethernet (PoE) |
| Internal switching capacity (Mpps) | 4,2 Mpps |
| Internal switching capacity (Gbit/s) | 5,6 Gbps |
| VLAN | no |
| Interfaces / Inputs/ Outputs: | |
| Ethernet interface | 10Base-T, 100Base-TX, 1000Base-T |
| Ports | 8x 10/100Base-TX, 2x 10/100/1000Base-T |
| Optical connector | none |
| General: | |
| Dimensions (HxWxD) | 27x200x101,8mm |
| Weight | 500g |
| PoE ports (number) | 8 |
| Model | Desktop |
| Type | Unmanaged |
| Blower | no |
| Management | no |
| Mounting | desktop |
| PoE budget | 120 W |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Supply voltage | 48~57 VDC |
| Operating temperature | -10°C ~ +55°C |
| Parts supplied: | |
| Parts supplied | manual, PSU |
| Notes: | |
| Remarks | CCTV mode: transmission of 10Mbps @ 250m, CCTV mode, PoE Power output: 29.2W @ 1m; 25.8W @ 100m; 24.2W @ 150m; 19.9W @ 250m |
