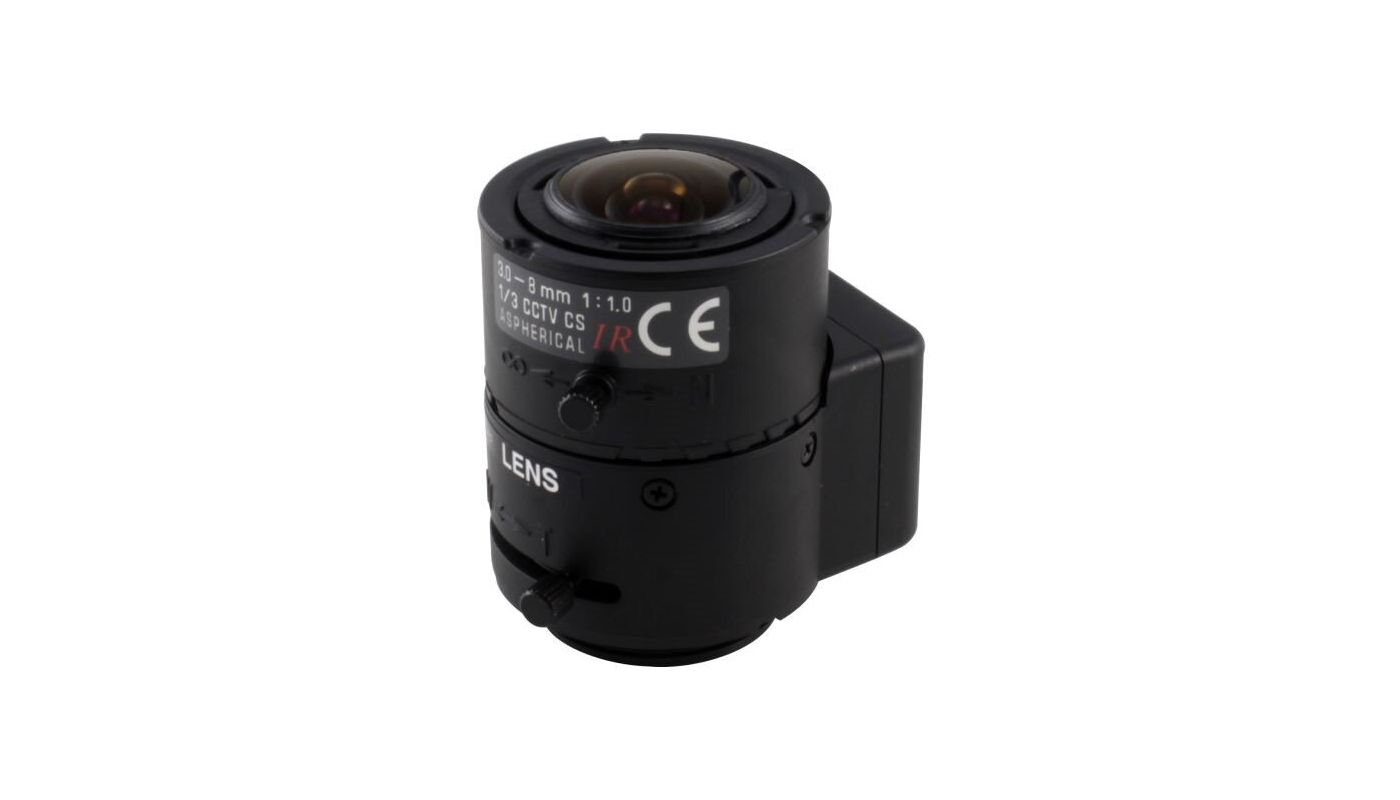

F03Z2.6DC-NFSHR

F1.0/3-8mm DC Lens, Varifocal, No Focus Shift, High Resolution, 1/3" CS Mount
Art. No.
43274
  • Suitable for 1/3" and 1/4" day&night cameras
  • Variable focal length/Fast maximum aperture (F1.0)
  • High resolution realizing 650 TV lines
  • Clear images without colour smear
  • Minimized chromatic abberation
  • No-focus-shift between visible and near IR light
  • Aspherical lens elements
  • LD (Low Dispersion) glass
  • CS mount
  • Without built-in auto iris amplifier
  • With 4 pin connector
  • Adjustable slip-ring mount for cable positioning
Specifications
Day&Night yes
Resolution 650 TV lines
Megapixels no
Lens Type Varifocal
Focal Length 3 - 8 mm
MOD (Mininum Object Distance) 0,3 m
Mount CS
Aperture range (F) F1.0~F360
Iris Control DC
Filter screw size not available
Nominal Format 1/3"
Aspherical technology yes
Horizontal Angle of View 77,4 - 33,4°
Dimensions (HxWxD) see drawing
Diameter 43,2 mm
Length 54,4 mm
Weight 75g
Colour anthracite
Operating temperature -20°C ~ +60°C
Downloads
Documents PDF Data sheet with specifications, generated live from the product database
Documents PDF Detailed manual for this product en
Documents PDF Detailed manual for this product de
Documents PDF Detailed manual for this product fr
Documents PDF Declaration of Conformity in German and English
Media ZIP Product Image in a high resolution for print
