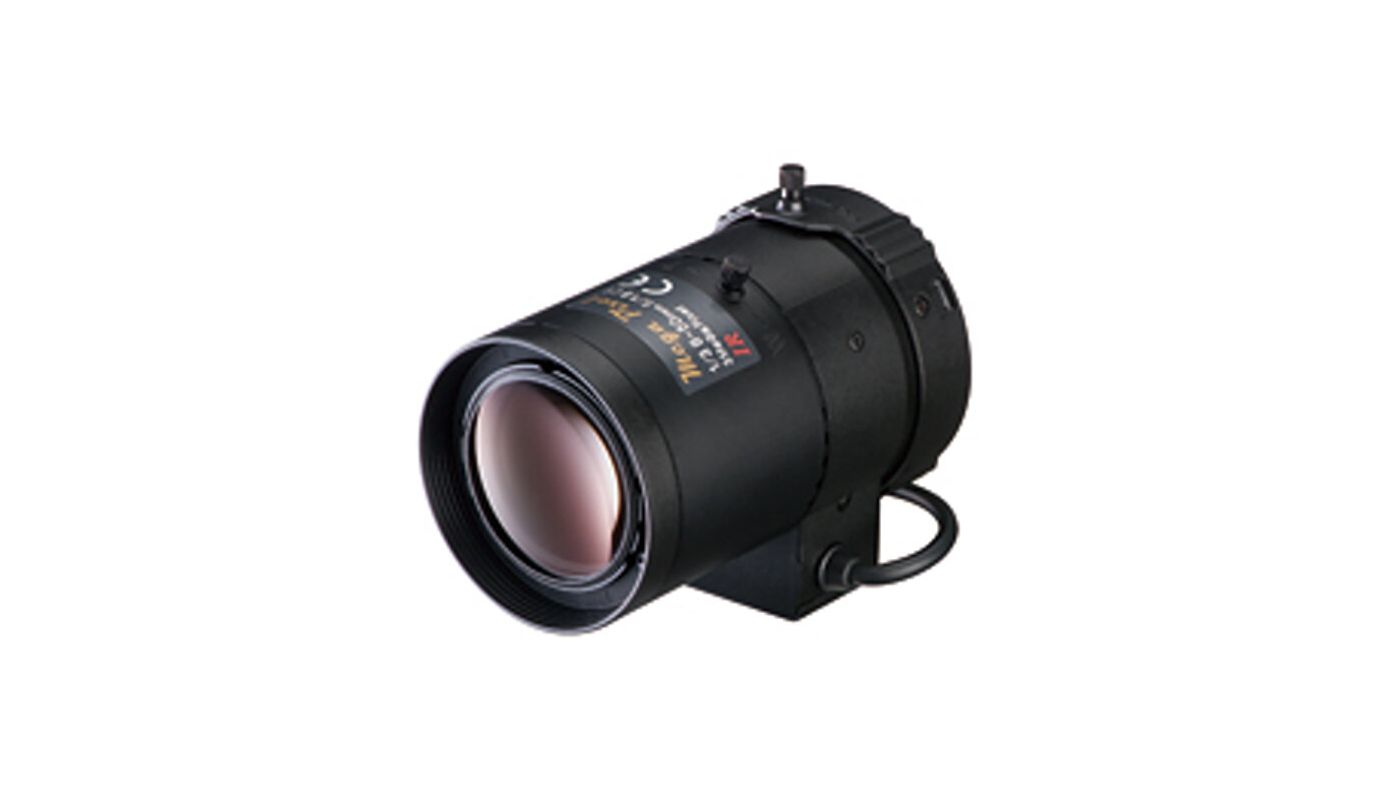

F03Z06NDDC-MP

F1.6/8-50mm Megapixel Lens, with variable Focal Length, 1/2.7" CS Mount
Art. No.
207480
  • Designed for 1/2.7”, 1/2.8”, and 1/3” cameras
  • Variable Focal Length, 3 Megapixel
  • Aspherical lens elements
  • CS mount
  • High standard of optical and mechanical quality
  • 4 pin connector for DC iris control
  • Adjustable slip-ring mount for cable positioning
Specifications
Day&Night yes
Resolution 2.048 x 1.536 (3 MP)
Megapixels yes
Lens Type Varifocal
Focal Length 8 - 50 mm
MOD (Mininum Object Distance) 0,3 m
Mount CS
Aperture range (F) F1.6
Iris Control DC
Filter screw size not available
Nominal Format 1/2.7"
Horizontal Angle of View 33,5 - 5,6°
Operating temperature -20°C ~ +60°C
Downloads
Documents PDF Data sheet with specifications, generated live from the product database
Documents PDF Detailed manual for this product en
Documents PDF Detailed manual for this product de
Documents PDF Detailed manual for this product fr
Documents PDF Declaration of Conformity in German and English
Media ZIP Product Image in a high resolution for print
