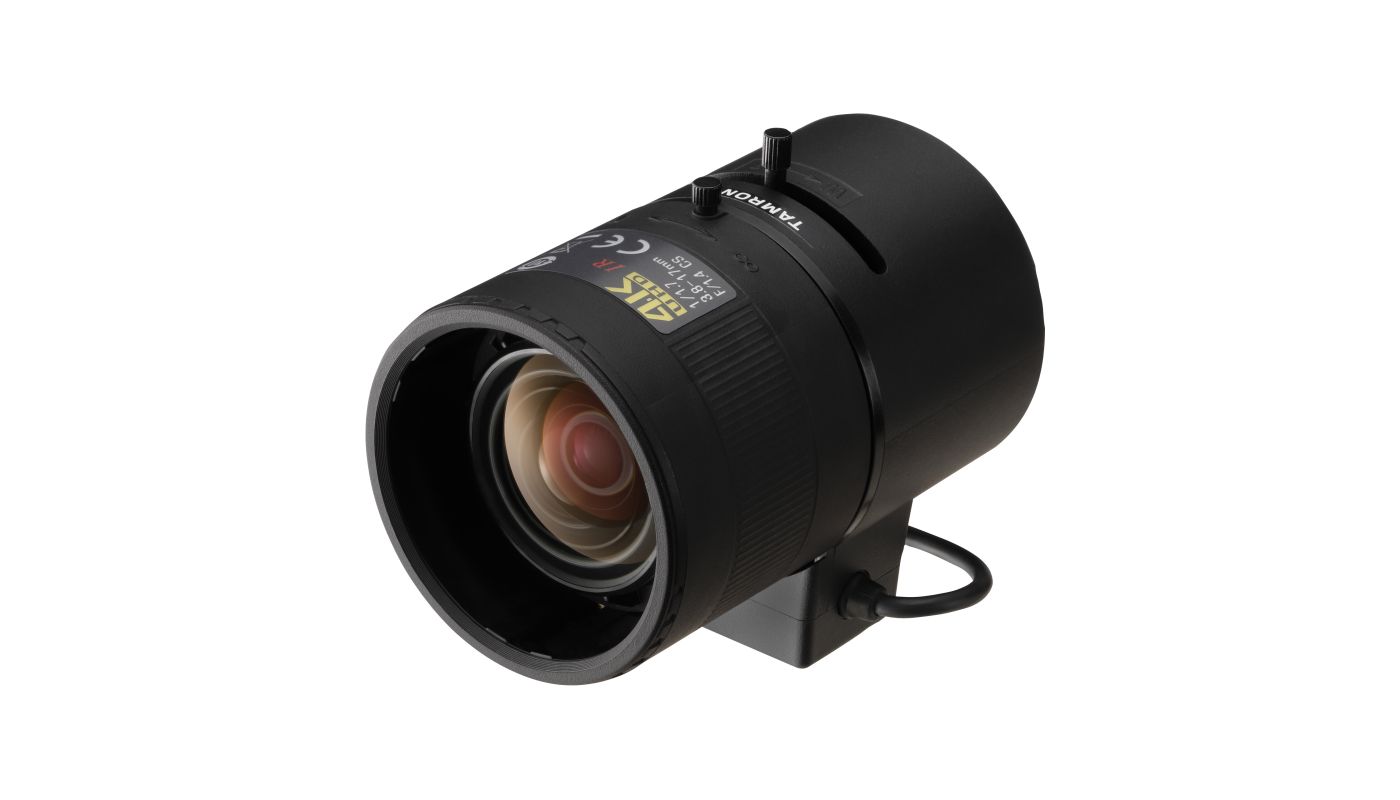

F03Z04NDDC-8MP

F1,4/3,8-17mm, 8.0 MP, DC-Lens with vari focal lenght 1/1,7", CS-Mount
Art. No.
230859
  • Designed for 1/1.7” cameras
  • Variable Focal Length 3.7-17mm
  • Suitable for 4K Resolution
  • Aspherical lens elements
  • CS-Mount
  • High standard of optical and mechanical quality
  • 4 pin connector for DC iris control
Specifications
Day&Night yes
Resolution 3840x2140 (16:9)
Megapixels yes
Lens Type Varifocal
Focal Length 3,8 - 17 mm
MOD (Mininum Object Distance) 0,3 m
Mount CS
Aperture range (F) F1.4
Iris Control DC
Nominal Format 1/1,7"
Horizontal Angle of View 121,2 - 67,2°
Diameter 54,4 mm (D)
Length 93,4 mm (L)
Weight 180g
Colour anthracite
Operating temperature -20°C ~ +60°C
