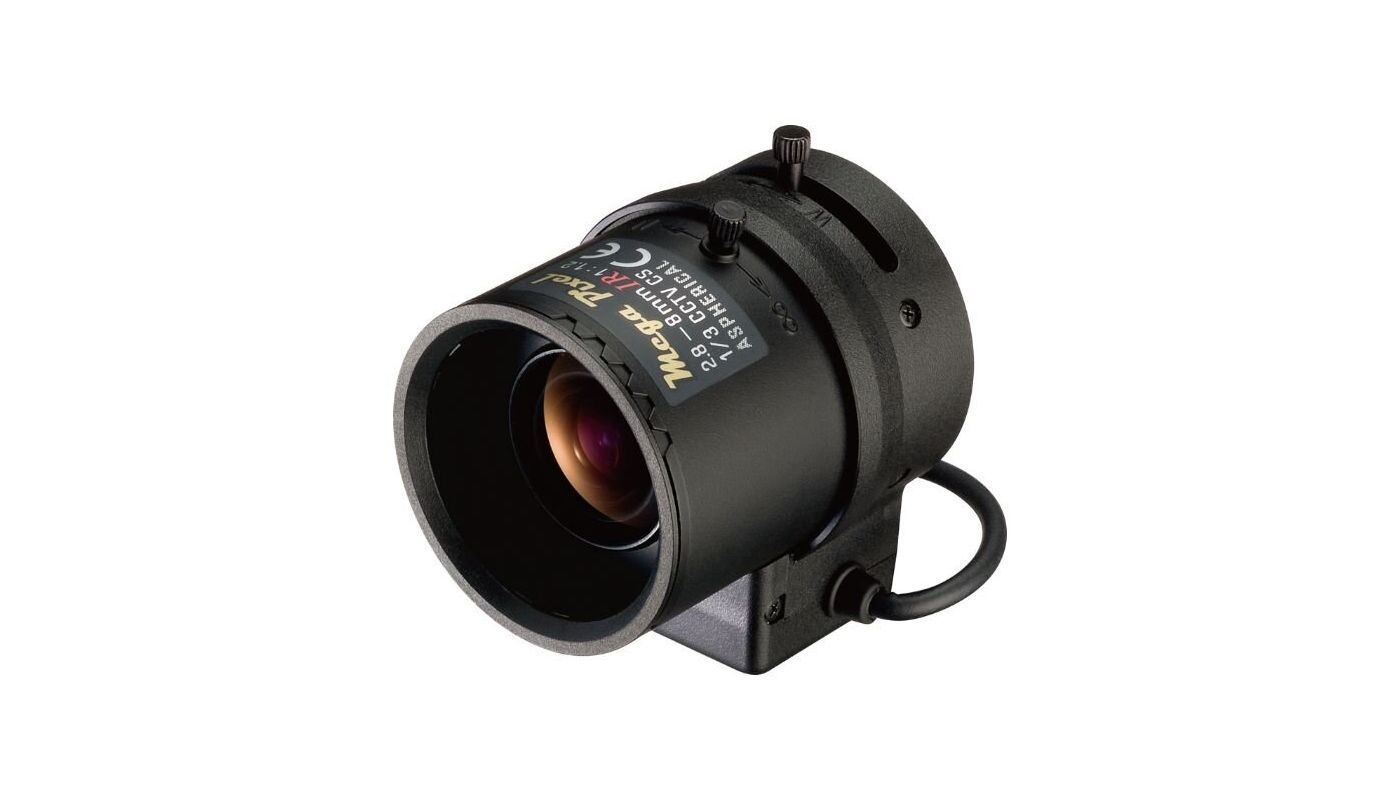

F02Z2.8DC-NFSHD
F1.2/2,8-8mm Lens, Varifocal, No Focus Shift, Full HD 1080p, 1/3" CS Mount
Art. No.
43277
- High performance for 3 megapixel/Full HD resolution
- Also for Full HD 16:9 CMOS sensors 1/2.7" and 1/2.8"
- Megapixel resolution even in night mode
- Fast maximum aperture F1.2
- Super wide angle lens 100 degrees
- Designed to match new IP camera technology
- Superb picture quality
- Compact size
- DC iris type
Day&Night | yes |
---|---|
Resolution | 2.048 x 1.536 (3 MP) |
Megapixels | yes |
Lens Type | Varifocal |
Focal Length | 2,8 - 8 mm |
MOD (Mininum Object Distance) | 0,3 m |
Mount | CS |
Aperture range (F) | F1.0~F360 |
Iris Control | DC |
Filter screw size | n/a |
Nominal Format | 1/3" |
Aspherical technology | yes |
Horizontal Angle of View | 100,1 - 36,8° |
Diameter | 43,2 mm |
Length | 54 mm |
Weight | 38g |
Applications | Megapixel (max. 3MP), Full HD 1080p |
Colour | black |
Operating temperature | -20°C ~ +60°C |
