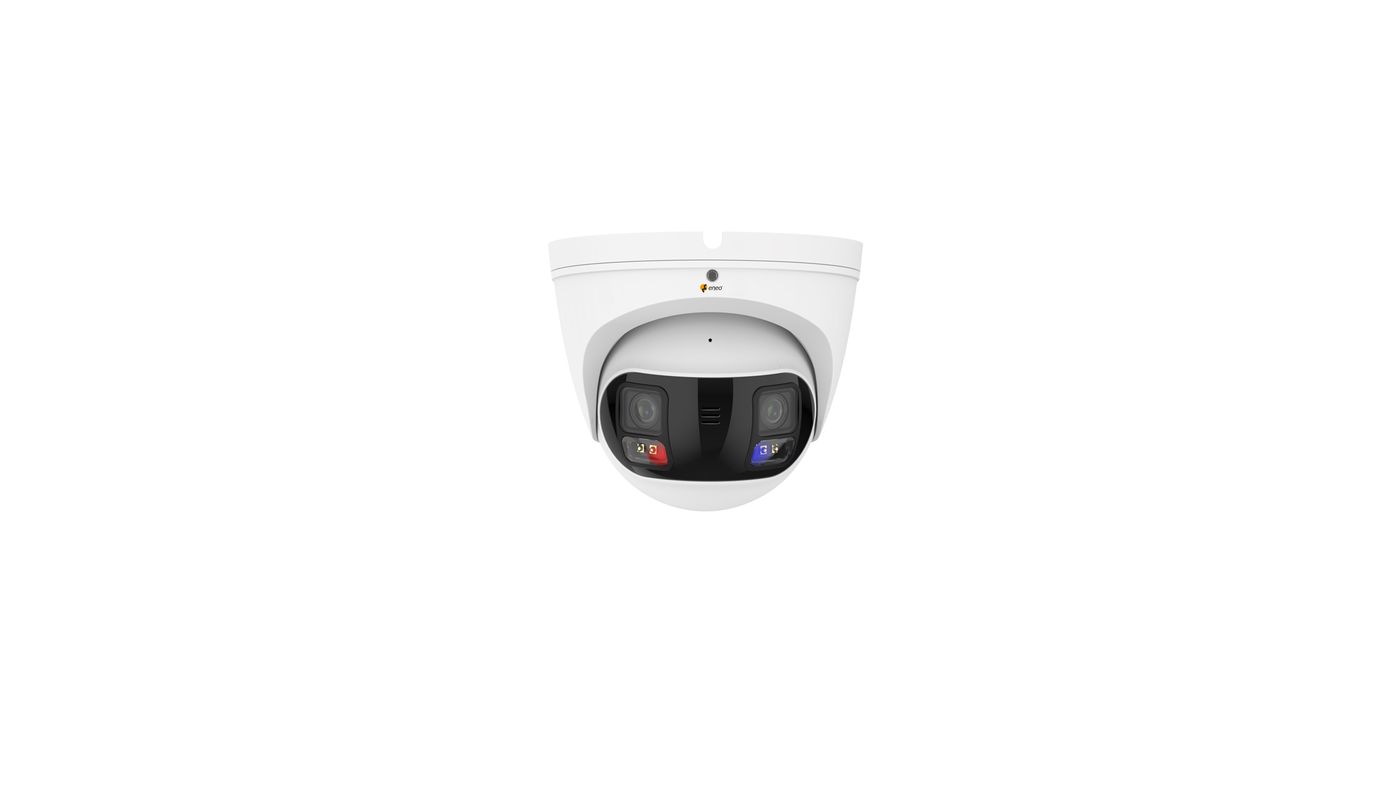

eneo IND-58F0002MTPB
SKU
246665
Network Dome Camera Fix, Turret, Panorama 180°, 2x 5120x1440, Day/Night, WDR, AI, 2x 2,8mm, IR, White Light, 12VDC, PoE, IP67
Main Features
Multisensor 2x 1/2.7’ CMOS sensor, panorama
Maximum resolution 5120x1440 pixels each, 15fps
Panorama ultra wide-angle camera 180° HFoV, 32:9
AI analysis functions including object classification
WDR, BLC, HLC and 3D-DNR noise reduction
Lenses with 2.8mm fixed focal length
Smart Codec H.265/H.264, dual streaming
Browser-independent (Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G/M and audio
Local storage via micro SD card
NDAA compliance
Integrated IR and white light LED illumination, IP67
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Brand
- ENEO
- EAN/GTIN
- 4260229841884
- Manufacturer order number
- 246665
- Series
- eneo IN-Serie
Camera
- Backlight compensation
- Yes
- Camera shape
- Minsters
- Chip size
- 1/2,7"
- Day/night mode
- Day,Night,Automatic,Time
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Photosensitivity
- 0.001 Lux bei (F1.6,AGC ON)
- Recording sensor
- Chipset NT98529, CMOS, SC533HAI
- Resolution standard
- 8 MP
- Signal-to-noise ratio
- 49 dB
- System
- True Day&Night
- White balance
- Automatic,Manual
DORI
- Detect (125px/m)
- 11,7m
- Identify (250px/m)
- 5,5m
- Perceiving (25px/m)
- 60,1m
- Watch (62px/m)
- 23,8m
Lens
- Aperture Range (F)
- F1,2
- Focal length
- 2,8 mm
- Horizontal angle of view
- 180°
- Lens Type
- Prime lens
- MOD (Minimum Object Distance)
- 2 m
- Vertical angle of view
- 60°
Video
- Data stream types
- Dual Streaming
- Image transfer rate max.
- 15 fps
- Resolution (extended)
- 5120x1440,4608x1296,4096x1152,3840x1080,3072x864,1536x432,1024x288
- Video Compression
- H.264, H.264+, H.265, H.265+, MJPEG
Display
- Image resolution max.
- 5120x1440
Functions
- Alarm processing
- Recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Red & blue flashing lights,Cloud Upload
- Analysis
- Crowds (CD), Enter Region, Face, Heat Map (HM), Intrusion, Leave Region, License plate recognition (LPR), Line crossing (LCD), Object classification, Object Classification Human / Vehicle (PD&VD), People counting, Queues (QD), Rare Sounds (RSD)
- Audio
- 2 Way Audio, Built-in microphone, Built-in speaker
- Audio support
- Yes
- Browser
- Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
- Digital Noise Reduction (DNR)
- Yes
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Spanish, Turkish
- Motion detector
- Yes
- Multicast
- Yes
- Password
- Administrator and User
- Privacy Zone
- Areas-ON/OFF switchable
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, TCP-IP, UPnP, UTP
- Security
- Complicated password, HTTPS encryption, IEEE 802.1X-Authentication, IP address filtering, Password
Interfaces / Inputs/ Outputs
- Control Interfaces
- Ethernet
- Ethernet interface
- 100Base-TX, 10Base-T
- External connections
- RJ-45,12VDC input (DC plug),connection cable approx.30cm,micro SD card slot 256 GB
General
- Audio compression
- G.711a, G.711u
- Camera Type
- Panoramic camera
- Color (Housing)
- RAL9003,Other colors available upon request
- Dimensions (WxHxD) (extended)
- 112,4x135 mm
- ESC
- 1/5 ~ 1/20.000sec.
- Housing material
- Aluminium
- Housing type
- Outside
- Illumination range
- Approx. 30 m , Approx. 15 m Warm light
- Lighting
- Infrared, Warm Light
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power consumption
- 13.5 W
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Protection
- IP67, NEMA 4X
- SDK
- Upon request
- Temperature Range (Operating)
- -30°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
- Weight
- 0.765 kg
- Wide Dynamic Range (WDR)
- WDR 120dB
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,3x wall plugs with screws,1x Allen wrench,1x waterproof cover for RJ45 connector
Notes
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 6.5 MB
- Manual for this product (german)
- Manual PDF | 2.1 MB
- Quick reference guide for this product (multilingual)
- Manual PDF | 4.2 MB
- Manual for this product (english)
- Manual JPG | 85.6 kB

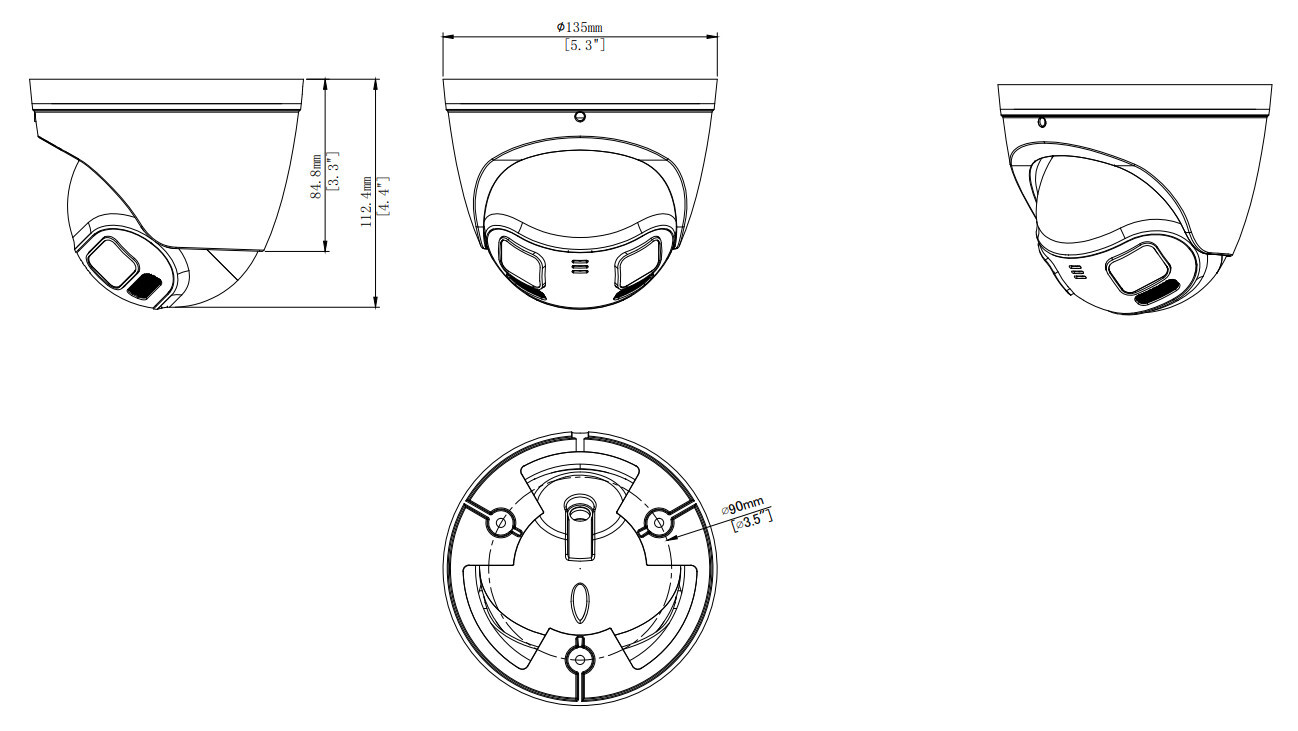

- Technical Drawing
