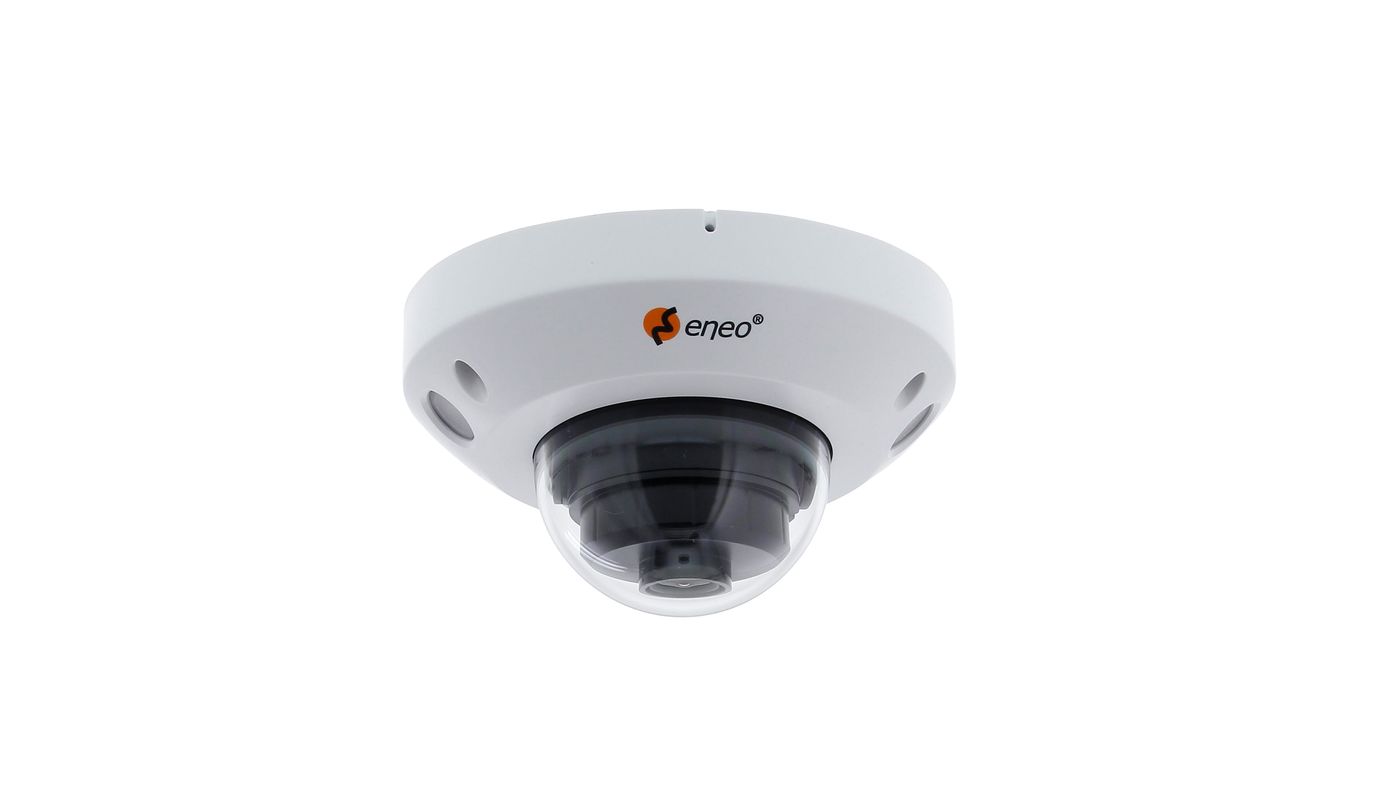

eneo IND-45F0022M0B
SKU
246620
Mini Network Dome Camera Fix, 2880x1620, Day/Night, WDR, AI 2,2mm, IR, 12VDC, PoE, IP66
Main Features
1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR noise reduction
Fixed focal length lens 2.2mm (HFoV 156°)
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G/M
Multilingual menu navigation (OSD)
Local storage via Micro SD card
Supports audio (built-in microphone)
NDAA compliance
IR LED illumination, IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 246620
- Brand
- ENEO
- EAN/GTIN
- 4260229840900
- Camera shape
- Minsters
- Chip size
- 1/2,7"
- Series
- eneo IN-Serie
- Resolution standard
- 5 MP
- Recording sensor
- Chipset SSC30KQ, CMOS, SC533HAI
- Photosensitivity
- 0.004lux bei F1.6(AGC ON)
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Image,Time
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 43 dB
- Resolution (extended)
- 2880x1620 (16:9),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
- Wide Dynamic Range (WDR)
- WDR 120dB
- Video Compression
- H.264, H.264+, H.265, H.265+, MJPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 30 fps
- Lens Type
- Prime lens
- Lighting
- Infrared
- Focal length
- 2,2mm
- MOD (Minimum Object Distance)
- 0.2 m
- Aperture Range (F)
- F2.0
- Audio compression
- G.711
- Image resolution max.
- 2880x1620
- Vertical angle of view
- 81°
- Horizontal angle of view
- 156°
- Perceiving (25px/m)
- 14,6m
- Watch (62px/m)
- 5,1m
- Detect (125px/m)
- 2,3m
- Multicast
- Yes
- Identify (250px/m)
- 1,3m
- Motion detector
- Yes
- Analysis
- Crowds (CD), Enter Region, Face, Heat Map (HM), Intrusion, Leave Region, License plate recognition (LPR), Line crossing (LCD), Object classification, Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
- Alarm processing
- Recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Cloud Upload
- Audio support
- Yes
- Audio
- 1 Way Audio, Built-in microphone
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Spanish, Turkish
- Security
- Complicated password, IP address filtering
- Browser
- Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
- Digital Noise Reduction (DNR)
- Yes
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
- External connections
- RJ-45,micro SD card slot 256 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Control Interfaces
- Ethernet

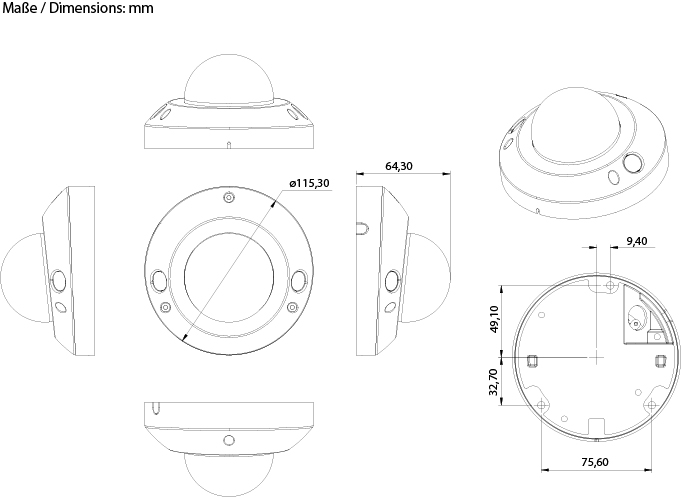

- Dimensions (WxHxD) (extended)
- 64,3x115,3mm
- Weight
- 0.3 kg
- Illumination range
- Approx. 20m
- Color (Housing)
- RAL9003,Other colors available upon request
- Color (dome)
- clear
- Housing type
- Outside
- Housing material
- Aluminium, Plastic
- Camera Type
- Domecamera
- Power consumption
- 5 W
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Privacy Zone
- Areas-ON/OFF switchable
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP66, NEMA 4X
- SDK
- Upon request
- Power supply
- Poe
- Temperature Range (Operating)
- -35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
- Scope of delivery
- Quick installation guide,drilling template,3x wall plugs with screws,1x Torx wrench,1x rubber gasket,1x snagless RJ45 boot
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR)
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 2.3 MB
- Quick reference guide for this product (multilingual)
- Manual PDF | 2.3 MB
- Quick reference guide for this product (multilingual)
- Manual JPG | 81.2 kB
- Technical Drawing
- Firmware HTML | 835 B
- Product Firmware CAD Files
- Software HTML | 789 B
- eneo Product Software Download Portal
- Software HTML | 899 B
- eneoSite ManagerTool
- Marketing PDF | 287.3 kB
- eneo IN-Serie AI Matrix
- Marketing PDF | 516.8 kB
- FAQ for the AI Functions of the new eneo IN series
- Marketing PDF | 467.8 kB
- FAQ for the AI Functions of the new eneo IN series
- Marketing PDF | 2.4 MB
- IN-Series-Integration Milestone
- Marketing PDF | 224.5 kB
- NDAA compliant products
- Marketing PDF | 72.2 kB
- Open Source Software License Information
- Marketing PDF | 1.2 MB
- Product Guide
- Marketing PDF | 2.5 MB
- Marketing information
- Marketing PDF | 218 kB
- RTSP Streams Configuration for eneo cameras and recorders
- Marketing PDF | 80.3 kB
- Zubehörübersicht eneo IN-Serie
- Hi-Res images ZIP | 57.6 kB
- Product image in a high resolution
- Declaration of conformity PDF | 128.1 kB
- Declaration of conformity (german and english)
