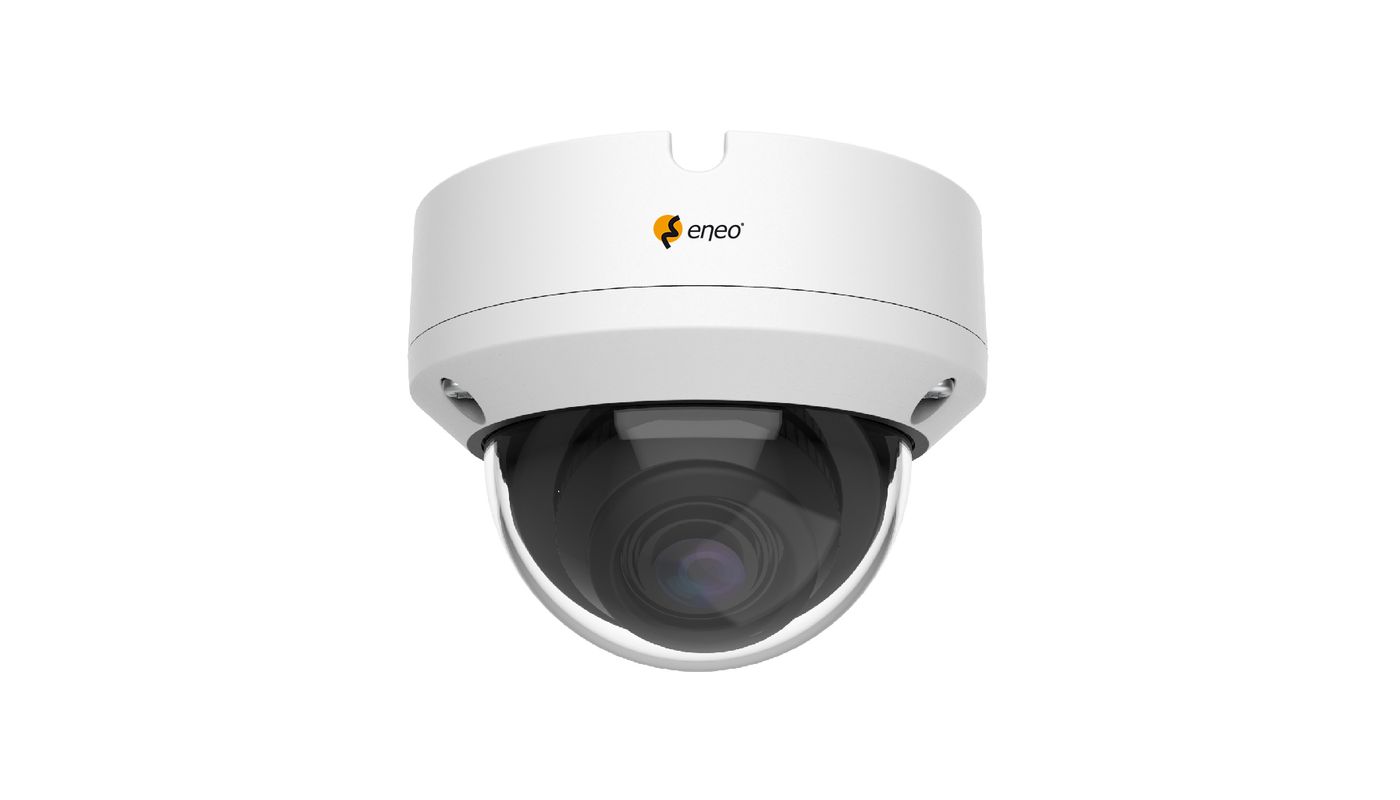

eneo IND-42M2808M0A
SKU
246625
Mini Network Dome Camera Fix, 1920x1080, Day/Night, WDR, AI 2,8-8mm, IR, 12VDC, PoE, IP66, IK10.
Main Features
1/2.8" Sony STARVIS CMOS sensor,2 MP/60fps
AI analysis functions including object classification
WDR 120dB, 3D-DNR Noise Reduction
Motorized varifocal lens 2.8-8mm
Smart Codec H.265/H.264, multi-streaming
Browser independent (IE, Edge, Safari, Firefox, Chrome)
Supports ONVIF profiles S/T/G/M
Multilingual menu navigation (OSD)
Local storage via Micro SD card
Supports audio and external alarm input and output
NDAA compliance
IR LED illumination, IP66 and vandal proof IK10
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Manufacturer order number
- 246625
- Brand
- ENEO
- EAN/GTIN
- 4260229841846
- Camera shape
- Minsters
- Chip size
- 1/2,9"
- Series
- eneo IN-Serie
- Resolution standard
- 2 MP
- Recording sensor
- CMOS, SC235HAI, SSC30KQ
- Photosensitivity
- Color 0,0034lux bei F1.6(AGC ON)
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Image,Time
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 41 dB
- Resolution (extended)
- 1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
- Wide Dynamic Range (WDR)
- 120dB
- Picture size
- 16:9, 4:3
- Video Compression
- H.264, H.264+, H.265, H.265+, MJPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 60 fps
- Lens Type
- Varifocal (motorized)
- Lighting
- Infrared
- Focal length
- 2,8 - 8 mm
- MOD (Minimum Object Distance)
- 0.8 m
- Aperture Range (F)
- F1.8
- Audio compression
- G.711
- Image resolution max.
- 1920x1080
- Vertical angle of view
- 56 - 25°
- Horizontal angle of view
- 100 - 44°
- Perceiving (25px/m)
- 37,3 - 96,9m
- Watch (62px/m)
- 13,9 - 38,7m
- Detect (125px/m)
- 5,5 - 18,7m
- Multicast
- Yes
- Identify (250px/m)
- 2,7 - 8,6m
- Motion detector
- Yes
- Analysis
- Crowds (CD), Enter Region, Face Recognition (FR), Heat Map (HM), Intrusion, Leave Region, License plate recognition (LPR), Line crossing (LCD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
- Alarm processing
- Recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload
- Turning range
- 350 °
- Vertical tilt range
- 0~ +80°
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Spanish, Turkish
- Security
- Complicated password, IP address filtering, Password
- Browser
- Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
- Digital Noise Reduction (DNR)
- Yes
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
- Zoomfactor (optical)
- 3
- External connections
- RJ-45,Alarm in/output,Audio input/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 512 GB
- Ethernet interface
- 100Base-TX, 10Base-T
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
- Dimensions (WxHxD) (extended)
- 115x91,6mm
- Weight
- 0.56 kg
- Illumination range
- Approx. 20m
- Color (Housing)
- RAL9003,Other colors available upon request
- Color (dome)
- clear
- Housing type
- Outside
- Housing material
- Aluminium
- Camera Type
- Domecamera
- Power consumption
- 6.2 W
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- Privacy Zone
- Areas-ON/OFF switchable
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP67
- SDK
- Upon request
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
- Vandalism-resistant
- Yes
- Certifications
- IK10
- Scope of delivery
- Quick installation guide,drilling template,4 wall plugs with screws,1 Torx wrench,waterproof cover for RJ45 connector
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Manual PDF | 28.5 MB
- Manual for this product (german)
- Manual PDF | 27.3 MB
- Manual for this product (english)
- Manual JPG | 498.9 kB

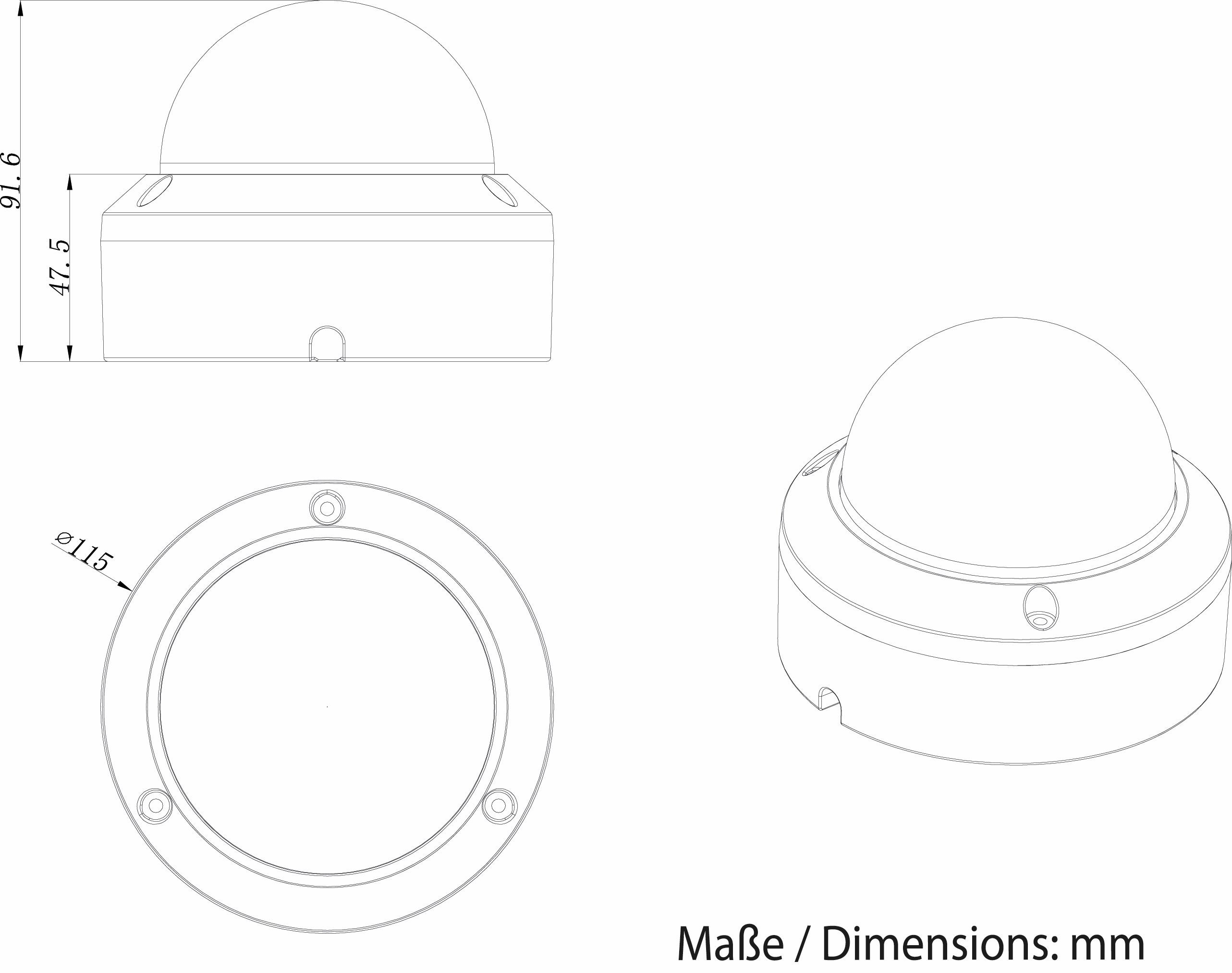

- Technical Drawing
