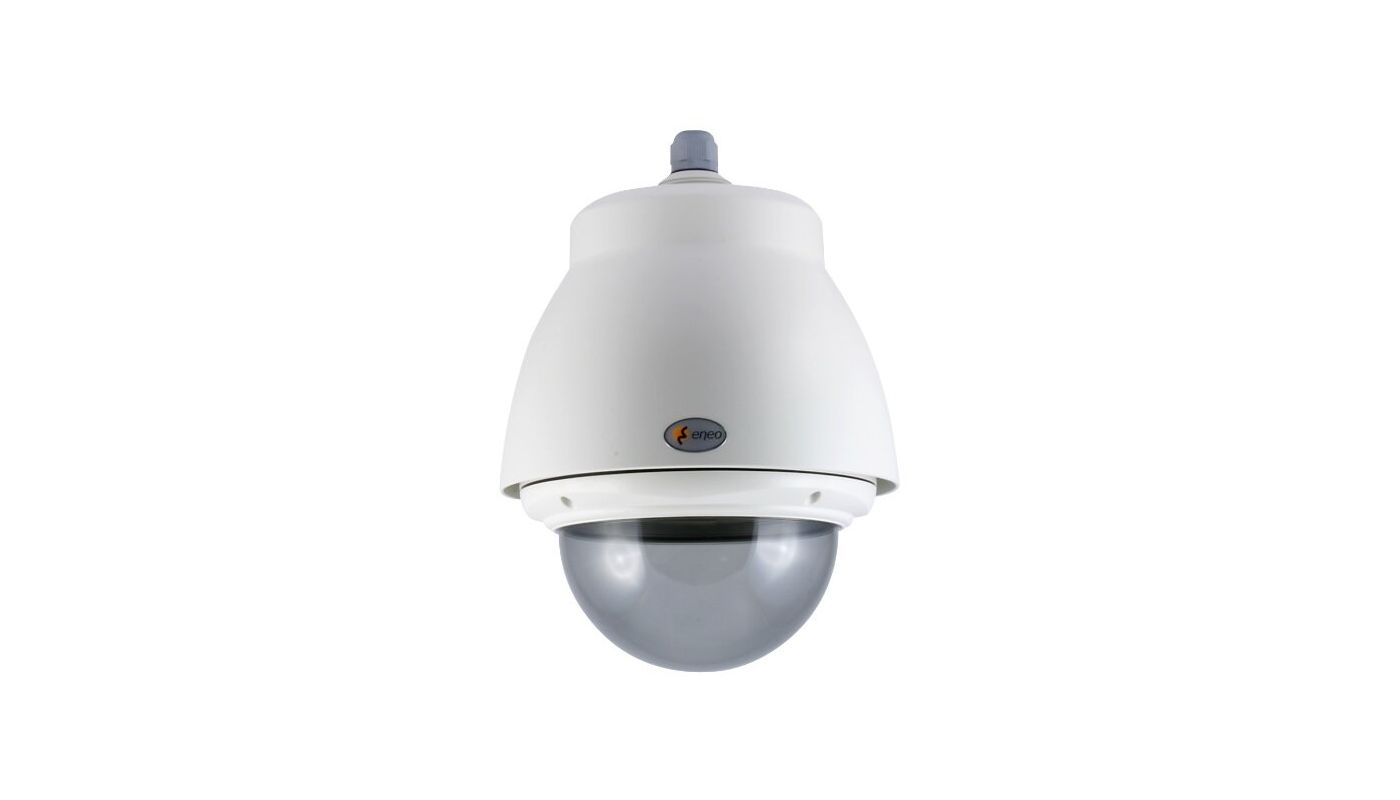

Pendant Mount Outdoor Dome Housing, Sun Shield, Clear Bubble 6.5", 24VAC
Art. No.
  • Outdoor housing for Fastrax I - III dome cameras
  • Clear bubble 6.5" (165mm)
  • Prepared for wall and ceiling mounting
  • Sunshield, heater and blower kit included
  • Supply voltage: 24VAC/50-60Hz
  • Protection rating: IP66
  • Option: Wall and ceiling mount brackets, power box
  • Option: Connection cable #74143 & #74144
Weight 3,6kg
Color (housing) Pantone Cool Gray 1C
Color (bubble) clear
Housing outdoor
Hosuing material aluminium
Heater yes
Camera fixing dome
Bubble 165mm (6.5"), clear acrylic plastic
Power consumption approx. 75W for heater, blower and incl. dome camera
Mounting wall or ceiling pendant mount
Protection rating IP66
Operating temperature -45°C ~ +50°C
