EDC-AKS1
SKU
74125

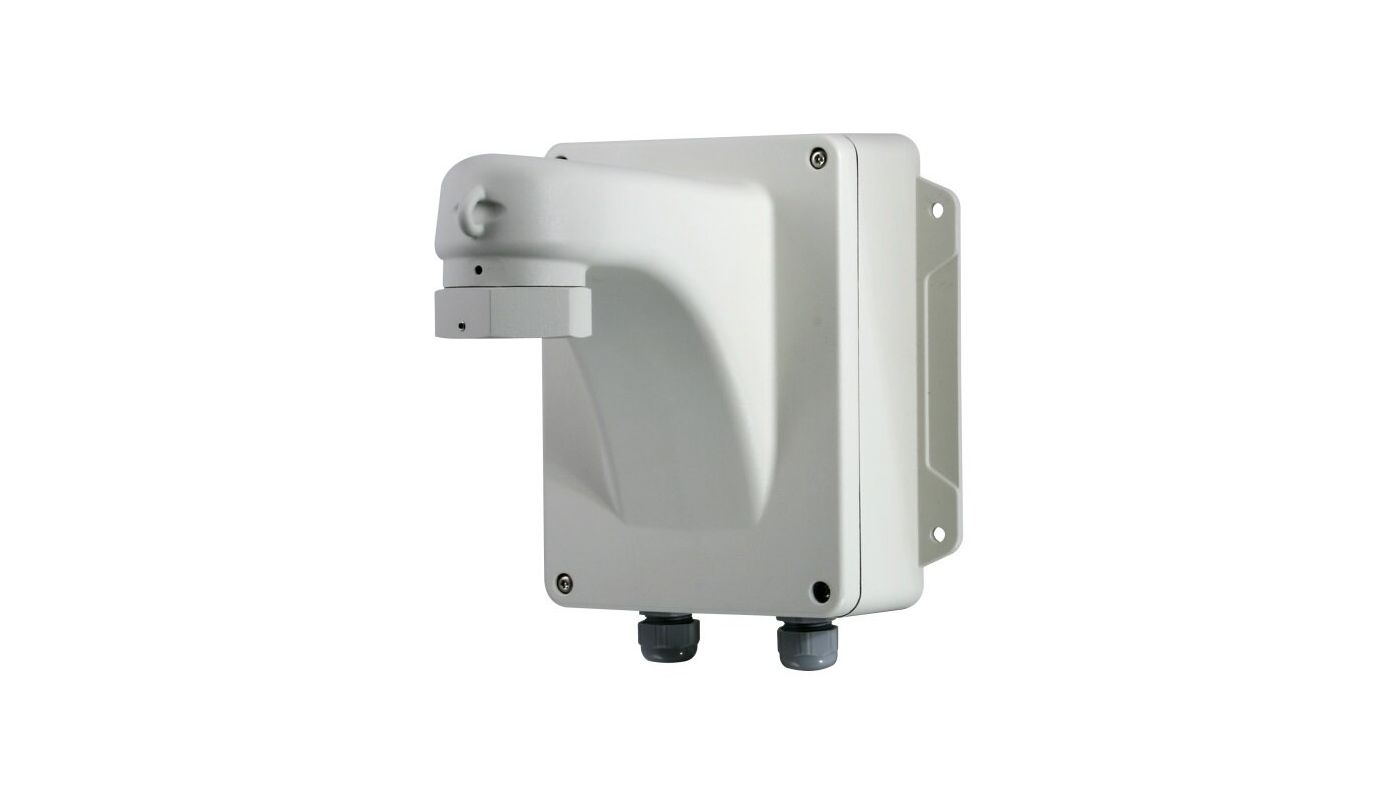

Power&Connection Box with Mounting Bracket for In/Outdoor, 230V-24VAC/3.0A
Main Features
Power & connection box
Input voltage: 230VAC
Output: 24VAC/3.0A
Signal, data and alarm loop-tru terminals inside
Weatherproof die-cast aluminium wall mount box
Box includes turnable mounting arm
Protection rating: IP66
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Other
- Brand
- ENEO
- Alarmeingänge
- 4
- Alarm inputs
- 4
- Alarm outputs
- 2 (NO/NC)
- Dimensions (HxWxD)
- see drawing
- Weight
- 3.8kg
- Output voltage
- 24 ~ 28VAC
- Mount
- Movable mounting bracket for dome camera housing
- Color
- Pantone Cool Gray 1C
- Hosuing material
- Aluminium
- Power consumption
- 80W
- Operating temperature
- -40°C ~ +50°C
- Parts supplied
- Power & connection box, Fixing screw and tool set, manual
- Manufacturer order number
- 74125
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Detailed manual for this product
- Documents PDF
- Betriebsanleitung zum Produkt
- Documents PDF
- Mode d'emploi succincte pour ce produit
