discontinued
Main image
Click to view image in fullscreen
![]()
AES-5SF0036M1A
This article is no longer available
SKU
223916

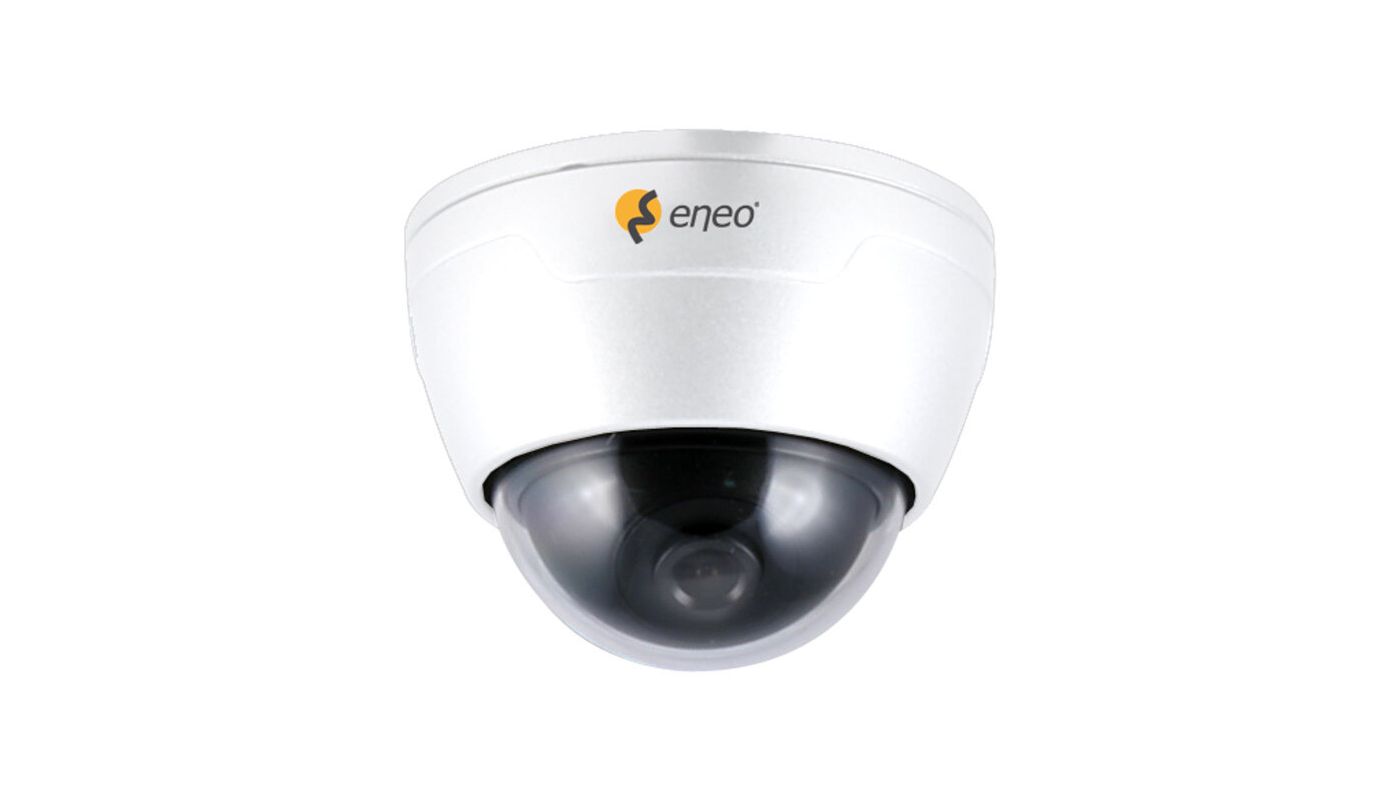

1/3" Mini Dome, Fix, clear, 3,6mm, 960TVL, 12VDC, vandalism protect
Main Features
1/3" Fix dome camera with Sony CCD
Integrated lens F2.0/3.6mm
Resolution of 960 horizontal lines
Automatic shutter control
Digital signal processing (DSP)
Automatic white balance (ATW)
White-coloured aluminium die-cast casing
Clear Lexan bubble, 57mm
Easy indoor installation
For wall or ceiling mounting
Vandal resistant
Buy now
You will be redirected to our shop on Videor.com for purchase.
More Information
- Camera:
- Camera type
- Dome
- Sensor size
- 1/3"
- Imager
- Sony Super HAD II Interline Transfer, CCD
- Sensitivity
- 0,1 Lux at F1,2, 50 IRE
- System
- electronic Day&Night
- Low speed shutter
- no
- Manual electronic shutter (MES)
- 1/50 ~ 1/120,000sec.
- Automatic electronic shutter (ESC)
- 1/50 ~ 1/120,000sec.
- Wide Dynamic Range (WDR)
- no
- Backlight compensation
- BLC
- Day&Night switch
- Electronic
- Day&Night mode
- Automatic
- White balance
- ATW
- Signal-to-noise ratio
- -50 db
- Video:
- Horizontal resolution
- 960 TVL
- Synchronization
- internal
- Lens:
- Lens Type
- fixed focal length
- Focal Length
- 3,6 mm
- Digital Zoom
- no
- MOD (Mininum Object Distance)
- 0,1 m
- DORI:
- Detect (25px/m)
- 32,2 m
- Observe (62 px/m)
- 12,6 m
- Recognize (125 px/m)
- 5,9 m
- Identify (250 px/m)
- 2,8 m
- Functions:
- Motion detector
- no
- e-PTZ support
- no
- Digital Noise Reduction
- yes
- Interfaces / Inputs/ Outputs:
- Video outputs
- Composite (CVBS)
- External connectors
- 12VDC input (DC plug), Composite (FBAS), connection cable approx.25cm
- Alarm inputs
- nein
- Alarm outputs
- no
- Serial interfaces
- no
- General:
- Brand
- ENEO
- Series
- eneo COAXIZE
- Dimensions (HxWxD)
- 60,5x80
- Weight
- 260g
- Illumination
- no
- Color (housing)
- white
- Color (bubble)
- clear
- Housing
- Outdoor
- Hosuing material
- Aluminium
- Heater
- no
- Power consumption
- 1.2W
- Mounting
- Ceiling mount
- Protection rating
- IP66
- Supply voltage
- 12VDC
- Operating temperature
- -10°C ~ +50°C
- Vandal proof
- yes
- Certifications
- IK10
- Parts supplied:
- Parts supplied
- manual, screw set, bag of screws
- Other
- Horizontal Angle of View
- 68°
- Active picture elements
- 976(H) x 582(V) pixels
- Video standard
- PAL
- Manufacturer order number
- 223916
Downloads
- Data sheet PDF
- Data sheet with specifications generated live from the product database
- Documents PDF
- Detailed manual for this product
