AES-5SF0036M0A

    AES-5SF0036M0A

    Art. No.: 221517

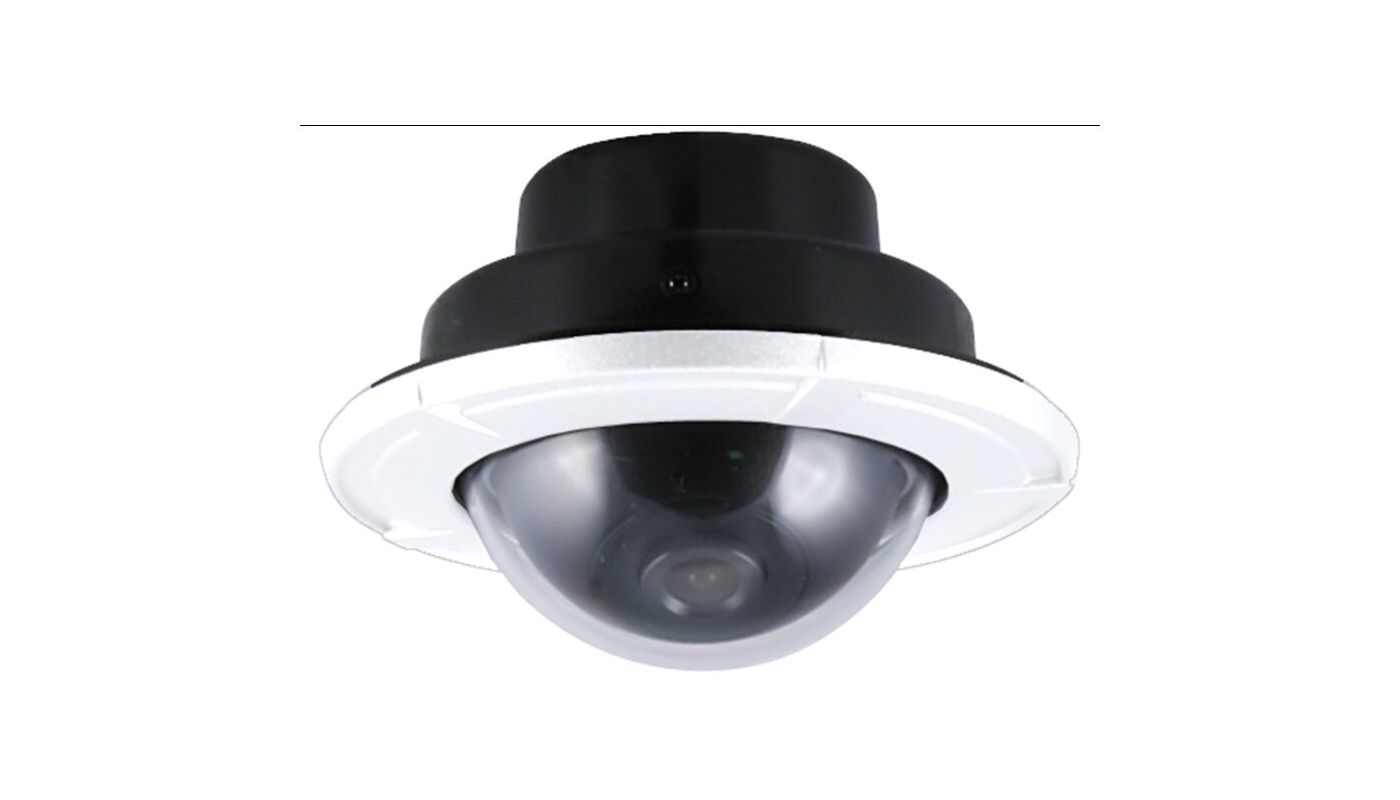

    1/3" Mini Dome, Fix, clear 3,6mm, 960TVL, 12VDC, vandalism protect, flush mount

    Mainfeatures

    • 1/3" Fix dome camera with Sony CCD
    • Integrated lens F2.0/3.6mm
    • Resolution of 960 horizontal lines
    • Automatic shutter control
    • Digital signal processing (DSP)
    • Automatic white balance (ATW)
    • White-coloured aluminium die-cast casing
    • Clear Lexan bubble, 57mm
    • Easy indoor installation
    • For in-ceiling flush mounting
    • Vandal resistant

    Specifications

    Camera:
    Sensor size 1/3"
    Imager CCD, Sony Super HAD II Interline Transfer
    System electronic Day&Night
    Sensitivity 0,1 Lux, at F1.2, 50 IRE
    Low speed shutter no
    Manual electronic shutter (MES) 1/50 ~ 1/120,000sec.
    Automatic electronic shutter (ESC) 1/50 ~ 1/1200,000sec.
    Wide Dynamic Range (WDR) no
    Backlight compensation BLC
    Day/Night switching auto
    IR cut filter OLPF (Overlay Low Pass Filter)
    White balance ATW
    Signal-to-noise ratio -50 db
    Video:
    Video standard PAL
    Horizontal resolution 960 TVL
    Synchronization internal
    Lens:
    Lens type fixed focal length
    Focal length 3,6 mm
    Digital zoom no
    MOD (Minimum object distance) 0,1 m
    Horizontal angle of view 68 °
    Active picture elements 976(H) x 582(V) pixels
    Features:
    Motion detector no
    e-PTZ support no
    Digital Noise Reduction (DNR) yes
    Interfaces / Inputs / Outputs:
    Video outputs composite (CVBS)
    Alarm inputs no
    Alarm outputs no
    Serial interfaces no
    General:
    Dimensions (HxWxD) 58,5x88
    Illumination no
    Colour (housing) white
    Colour (bubble) clear
    Housing outdoor
    Housing material aluminium
    Weight 200 g
    Heater no
    Power consumption 4.2W
    Mounting flush mount
    Protection rating IP66
    Supply voltage 12VDC
    Temperature range (operation) -10°C ~ +50°C
    Vandalism resistant yes
    Scope of delivery:
    Parts supplied manual, screw set, bag of screws
